• Model NO.：WB-PP-312-6AFCP-24F
• Port Number：16~48
• Usage：STP
• Type：MDF
• Condition：New
• Information Content：Network
• Termination：Dual IDC
• Fitting for：22AWG,23AWG,24AWG,26AWG Solid Wires
• Shielded：FTP
• Size：1u, 19 Inch Standard Type
• Ports：24 Ports
• Transport Package：Cartons, Wooden Cases, Pallet
• Specification：Patch Panel
• Trademark：Webitelecomms
• Origin：Ningbo, China
• HS Code：8517709000
• Production Capacity：10000PCS,Month
• Package size per unit product：53.00cm * 26.00cm * 6.00cm
• Gross weight per unit product：4.000kg

Basic Info.

Model NO. WB-PP-312-6AFCP-24F Port Number 16~48 Usage STP Type MDF Condition New Information Content Network Termination Dual IDC Fitting for 22AWG/23AWG/24AWG/26AWG Solid Wires Shielded FTP Size 1u, 19 Inch Standard Type Ports 24 Ports Transport Package Cartons, Wooden Cases, Pallet Specification Patch Panel Trademark Webitelecomms Origin Ningbo, China HS Code 8517709000 Production Capacity 10000PCS/Month

Packaging & Delivery

Package size per unit product 53.00cm * 26.00cm * 6.00cm Gross weight per unit product 4.000kg

Product Description

Products Describe:

19" standard size for mounting into server racks and network cabinets

This patch panel is designed for 22-26 AWG solid conductors

1U Height (24 ports) with screws covered

Electronic patch panel which special design for 6A Keystone interface module

Easy to take down the front cover from front side and maintain the sensing system.

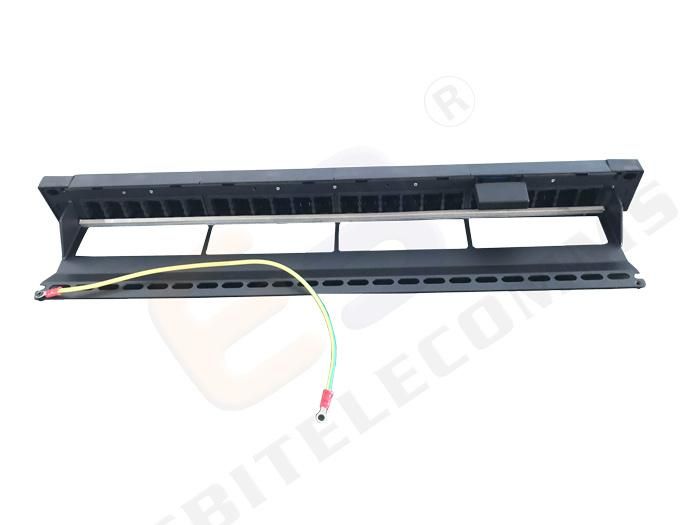

The E-panel is with dust cover and with dis-mountable rear cable support.

With LED indicator light can indicate the status of port and link.

It can mount 4 sets module which support 6 pcs 6A data module with keystone interface to realize the intelligent management.



Material :

Housing: ABS 94V-0

IDC: PC UL94V-0

PCB: FR-4 1.60 mm (0.06") thick, 2 layers .

Contacts: 0.35 mm (0.014") phosphor bronze with 1.27 micron (50 microinches) gold plating on contact area

Metal housing: 1.50 mm thick metal.



Construction characteristics:

Color marking of conductors according to T568B and T568A

Numeral marking of ports on the front side of the panel

Space for additional marking

Color and numeral marking of IDC modules on the rear side of the panel

IDC Dual contacts provide minimal crosstalk

110 type punch down tool is used for cable termination



Electrical characteristics :

According to UL 1863

Current rating: 1.5 A max

Voltage rating: 150 V

Contact Resistance: 20 mOhm

Insulation Resistance: 500 MOhm

Dielectric withstand voltage: 1000 V AC RMS, 60Hz/1min



Operation Temperature: -40 ~+70 degree centigrade

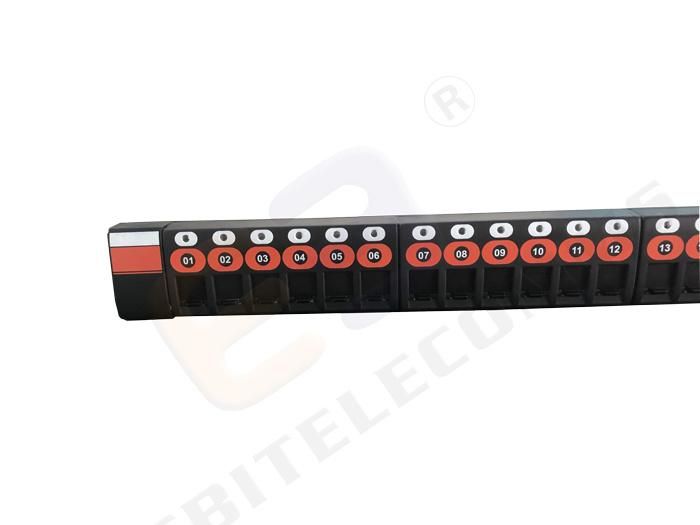

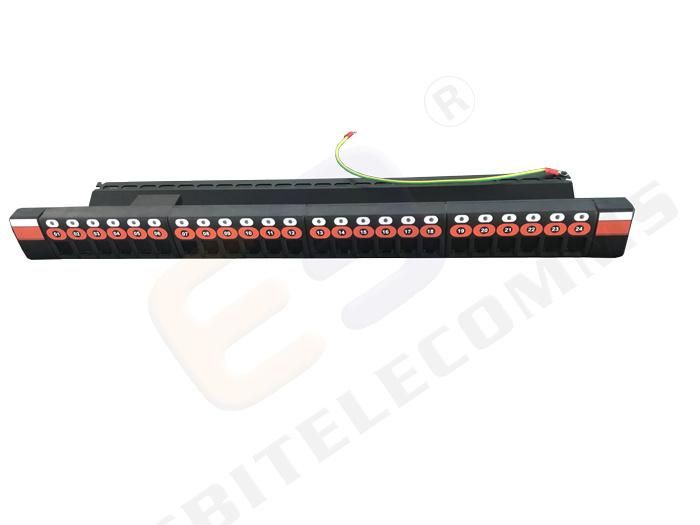

Product Image:







Packing



1 pcs/ bubble bag or PE Bag

1 pcs/box

10 boxes/carton

Carton Size: 53 X 26.5 X 51cm

G.W.:16 kg/carton

=Shipment & Delivery =

Shipment	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port



Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.

FAQ

1)    What is your Payment term?
---T/T, L/C, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF all are available.

3)    What is the Loading Port?
--- Ningbo or Shanghai port.

4)    What is your MOQ?
---MOQ of most webitelecomms products is usually 5pcs, different items will be different. the MOQ will be indicated in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,  international safety standard certificate is also be provided.
