• Model NO.：AQXY
• Span：100m
• Suitable Cable：ADSS
• Maximum Tension Strength：20kn
• Slip Strength：5kn
• Transport Package：Wooden Case
• Specification：100 span
• Trademark：Powtech
• Origin：China
• HS Code：85447000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. AQXY Span 100m Suitable Cable ADSS Maximum Tension Strength 20kn Slip Strength 5kn Transport Package Wooden Case Specification 100 span Trademark Powtech Origin China HS Code 85447000 Production Capacity 10000PCS/Month

Product Description

High quality ADSS O-Type Simple Suspension Clamp

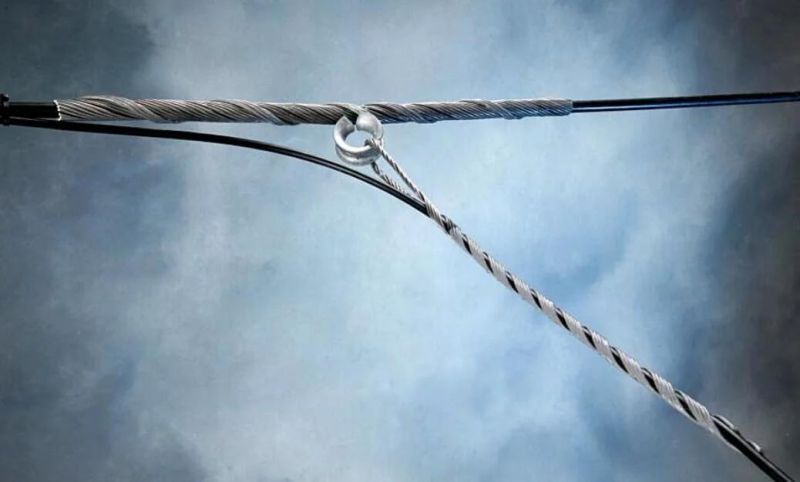

The wire suspension clamp are designed to connect ADSS cable to pole/tower in the straight line. They feature in handiness, ease, with certain load capacity to resist moving.

Application:
1.The span should be less than 100m.
2.The poles/towers with corner angle less than 15°
3.It is mainly designed for ADSS cable which are constructed on the same poles with 10kv electric power for the city zones.

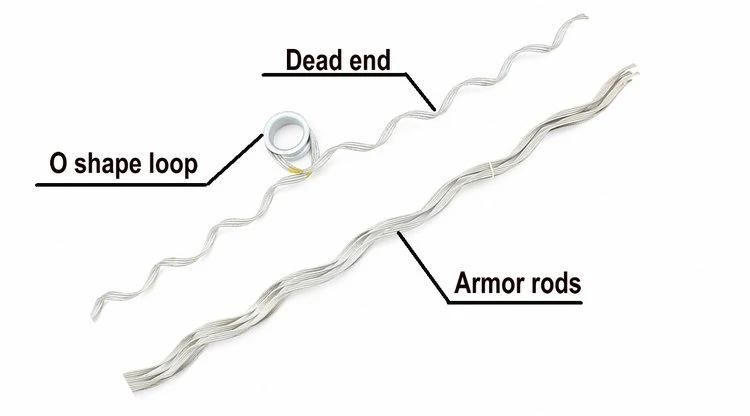

Configuration:
1.O-shaped hanging loop
2.Reinforcing armor rod
3.Dead-end rods:

Technical Data Sheet:
Maximum tensile force:>10kN
Recommended Span length:100m

Product Model	Cable Diameter(mm)	Dead-end Armor Rod(mm )	Outer Armor Rod(mm)
AQXY-100-**	9.4-15	1000	800
AQXY-100-**	15.1-18.5	1300	800
