• Model NO.：BS-VCW
• Application：Insulators, Electrical Winding Insulation,
• Transport Package：200 M,Roll, 100m,Roll, 50m,Roll, 25m,Roll
• Specification：RoHS, Halogen Free
• Trademark：QX
• Origin：Made in China
• HS Code：4602900000
• Production Capacity：150, 000 Meter,Week

Basic Info.

Model NO. BS-VCW Application Insulators, Electrical Winding Insulation, Transport Package 200 M/Roll, 100m/Roll, 50m/Roll, 25m/Roll Specification RoHS, Halogen Free Trademark QX Origin Made in China HS Code 4602900000 Production Capacity 150, 000 Meter/Week

Product Description

Product Feature:

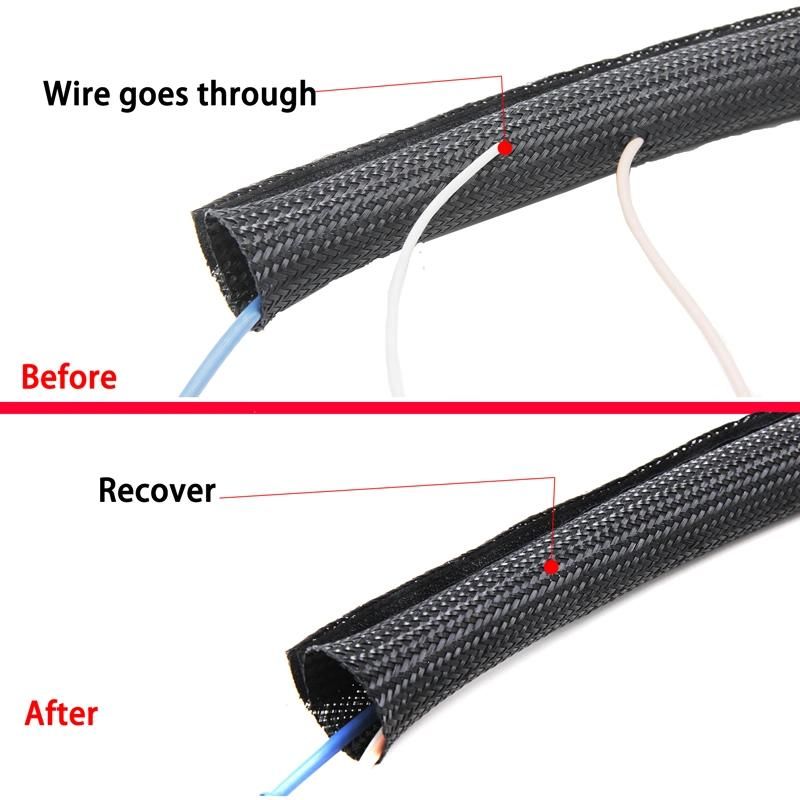

1.Flexible, Reused, Re-open.

2. Cable wire tidy/management. Insulative, Protective and Decorative.

3.Offer an additional protection against flame and abrasion.

4.install or uninstall very quickly and easily.

5. Flame Retardant PET Wrap, which offers added protection against fire with an organic flame inhibitor.

6. Size: Diameters from 1/2" to 2"

7. Standard color: Black, white.

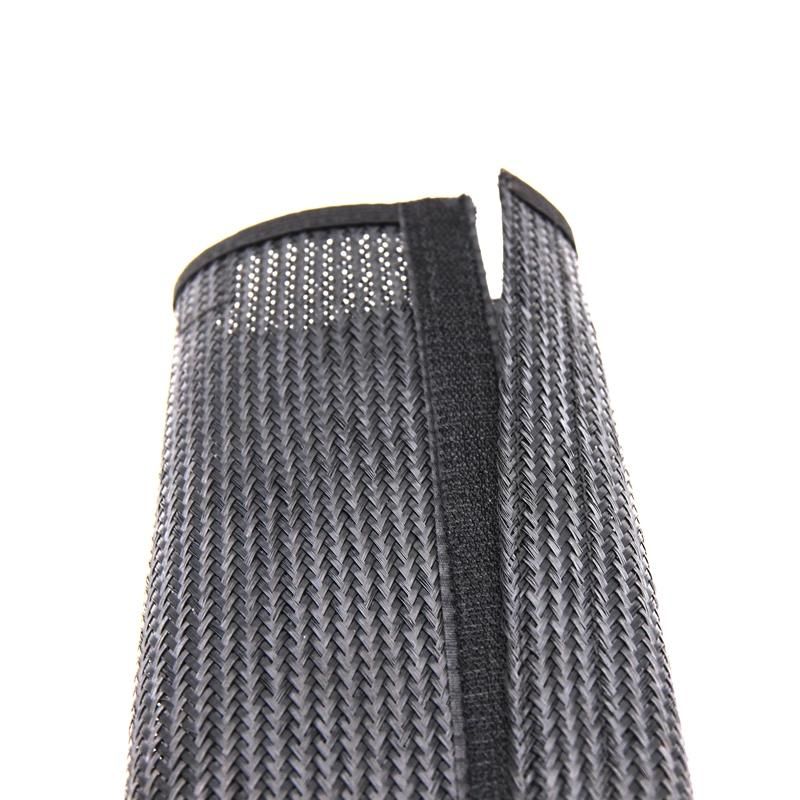

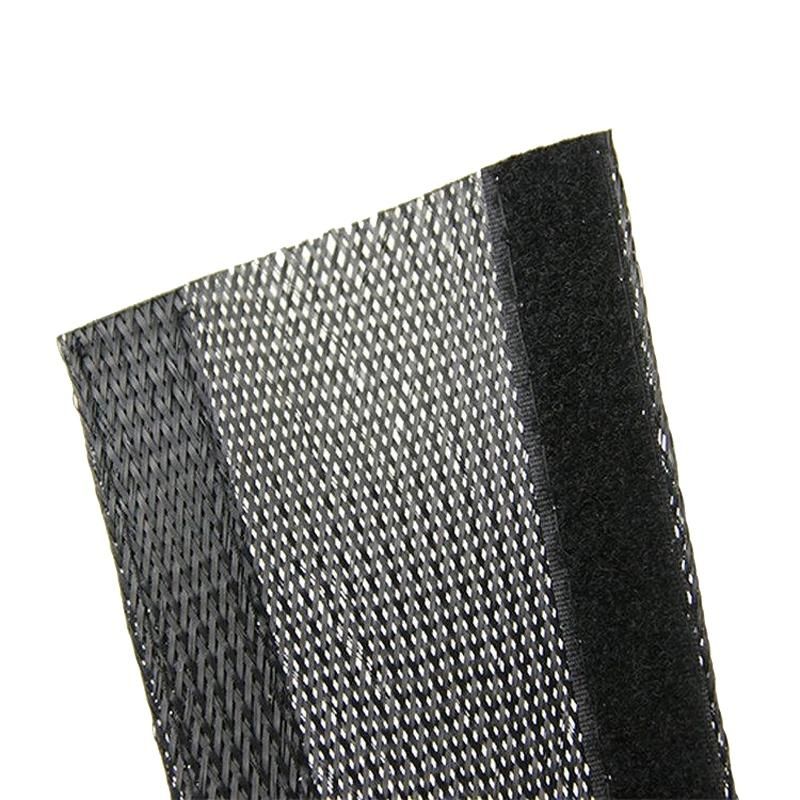

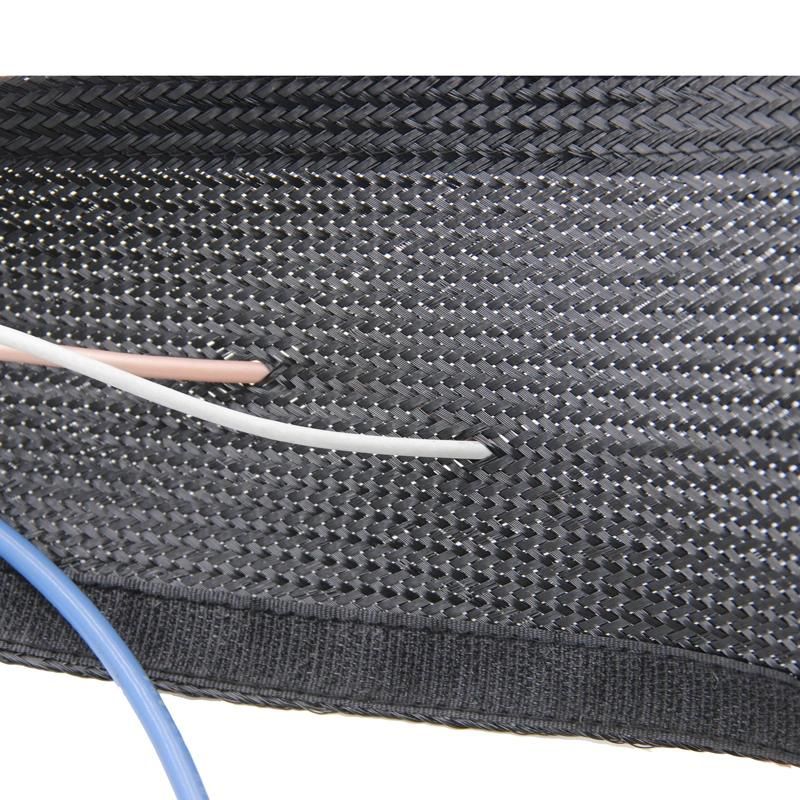

8. Provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving, but with the added feature of a hook and loop closure running the length of the material.








Technical Data:
1.Wrap material: Polyester
2.Hook & Loop material: Polyamide
3.Operating range: -50C - +150C
4.Melt Point: 230C+-5
5.Flammability: VW-1
6.Standard colour: Black and Grey, White
7.Certificate: RoHS, Halogen free
8.Cutting tool: Hot knife




Application:

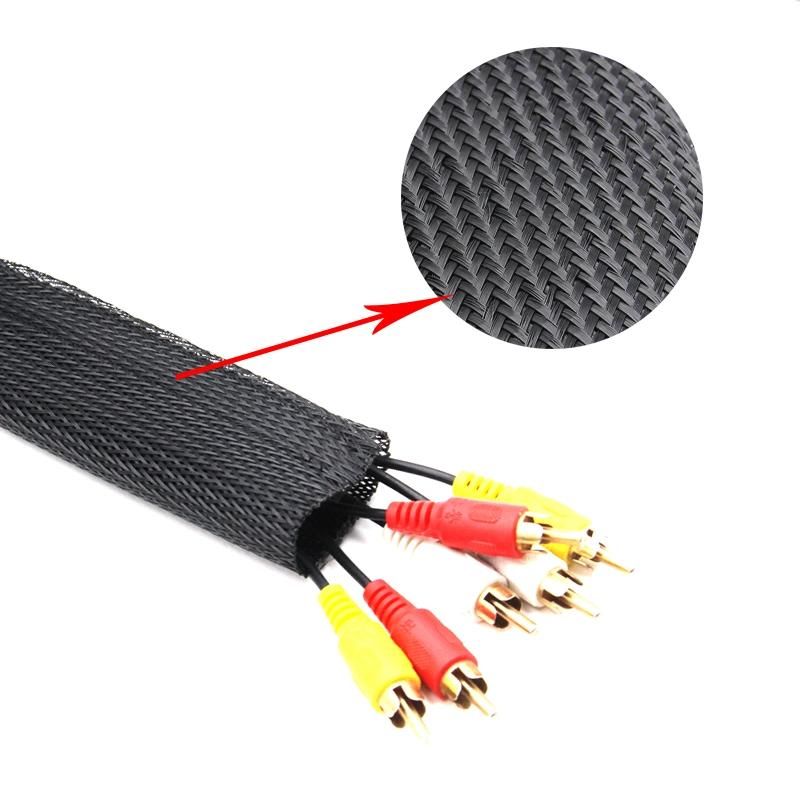

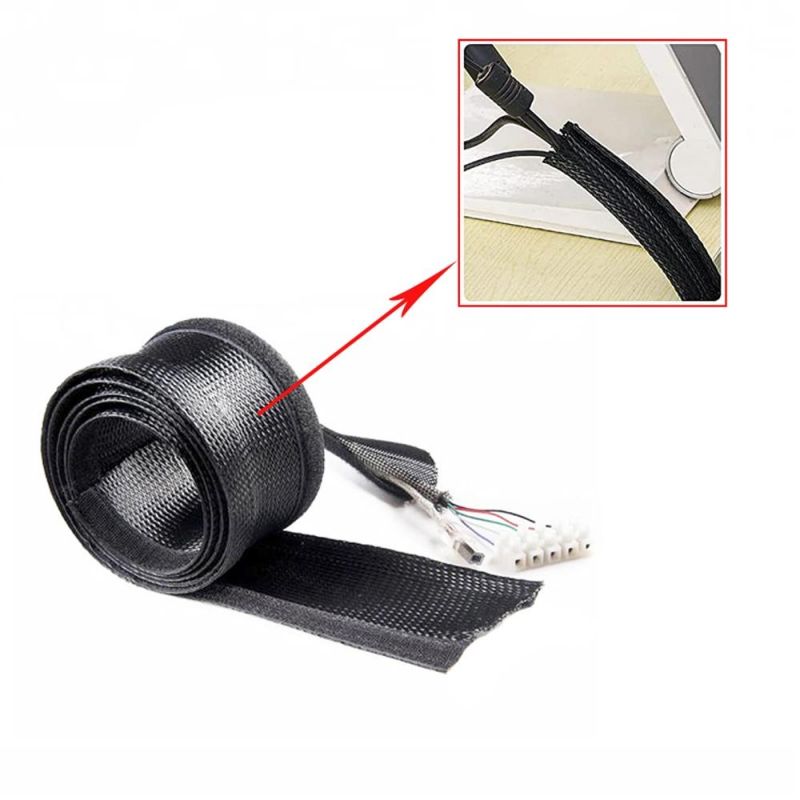

Hook & Loop braided wrap is widely used for management of A/V cables and power cord in home theater, computer, TV support and so on.


Part No	Nominal Size(Flat width)	Hook & Loop Width	Max Budle Dia	Packing(L)
BS-VCW013	13mm	10mm	8mm	25m/spool
BS-VCW019	19mm	10mm	12mm	25m/spool
BS-VCW032	32mm	20mm	20mm	25m/spool
BS-VCW051	51mm	20mm	32mm	25m/spool
BS-VCW064	64mm	20mm	40mm	25m/spool
