• Model NO.：BS-PET
• Available Size：3mm~100mm Flat Width
• Classification：UV Resist Pet Braided Sleeving
• Standard Color：Black, Grey
• Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm to 100mm Flat Width
• Trademark：QX
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month Cable Wrap

Basic Info.

Model NO. BS-PET Available Size 3mm~100mm Flat Width Classification UV Resist Pet Braided Sleeving Standard Color Black, Grey Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark QX Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/Month Cable Wrap

Product Description

Colored UV Resist Pet Braided Sleeving Cable Expandable Wrap



Product feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration  & Flame-retardant & Durable abrasion
resistance & Resistant to chemical degradation, in a wide range of industrial applications.

2. Braided of 0.25mm / 0.2mm Pet monofilament.

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with
bulky or large connectors.

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.

5. Logo printing is available.

6. Customized,Special package is willing to accepted,can be product according to customers requirements.

Colored UV Resist Pet braided sleeving cable expandable wrap

Technical data:
1. Material: Polyester

2. Operating range: - 50C - +150C

3. Melt Point: 250C+-5C

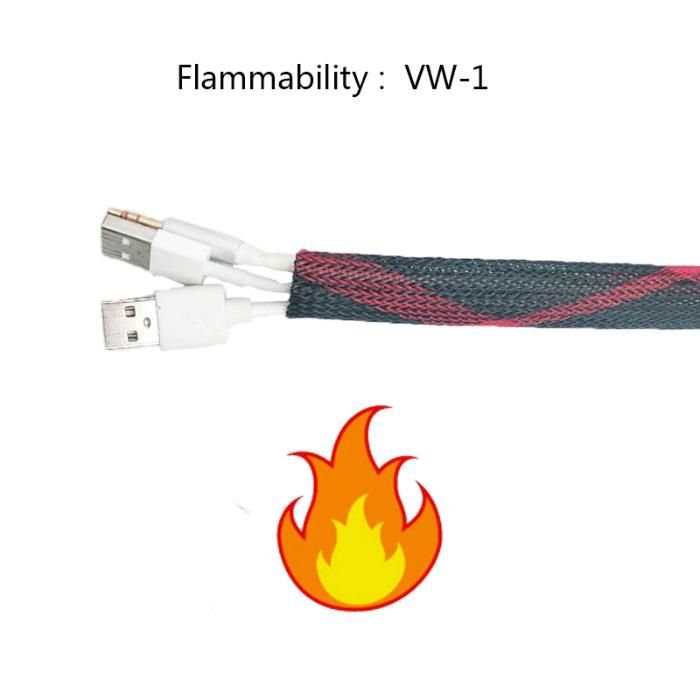

4. Flammability: VW-1

5. Standard colour: Black and grey

6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free

7. Cutting tool: Hot knife


Application:

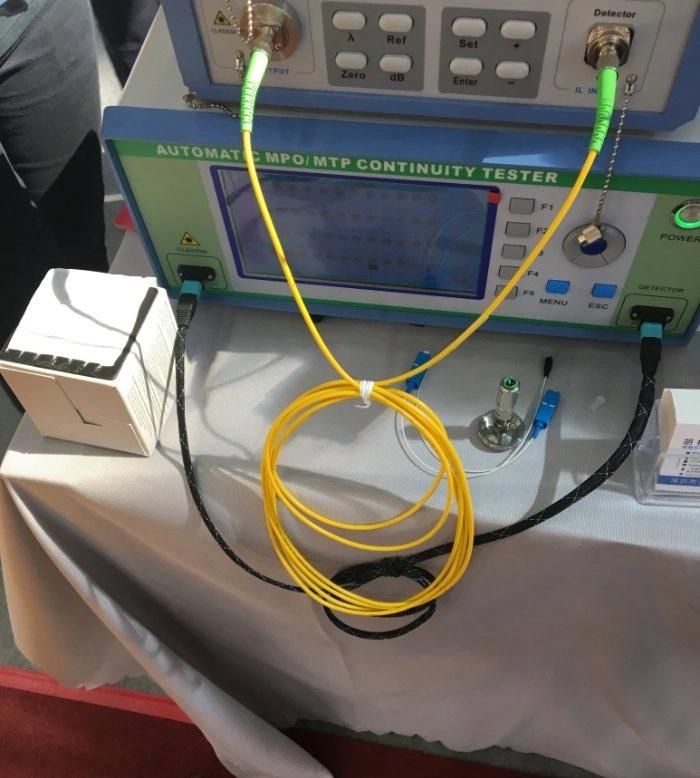

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment,
where is required an additional protection.



Part No	Size	Expanded Range(mm)		Packing (L)
	Flat width(mm)	Min(I)	Max.(O)	M/spool
BS-PET003	3	1	6	1000
BS-PET006	6	3	9	500
BS-PET008	8	5	16	350
BS-PET010	10	7	19	350
BS-PET012	12	8	24	300
BS-PET016	16	10	27	250
BS-PET019	20	14	30	200
BS-PET025	25	18	35	200
BS-PET032	32	20	50	150
BS-PET038	38	30	60	100
BS-PET045	45	35	75	100
BS-PET050	50	40	80	100
BS-PET064	64	45	105	100
BS-PET076	76	64	120	100

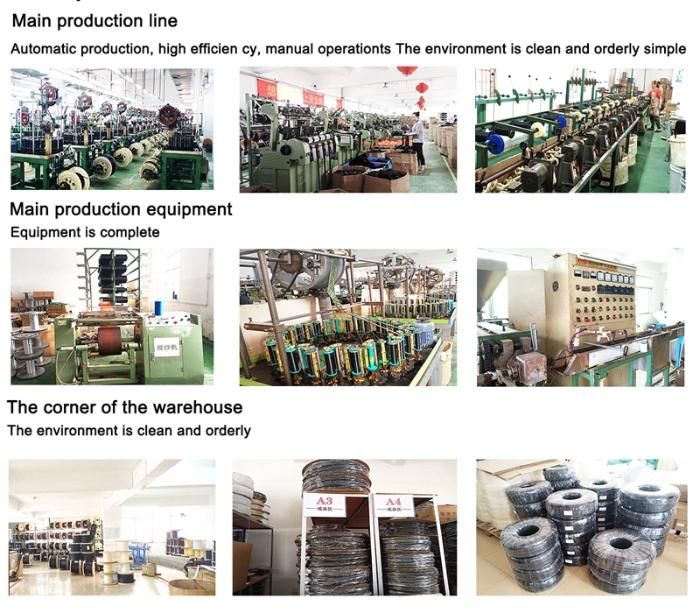

Company Profile:
Certifications:

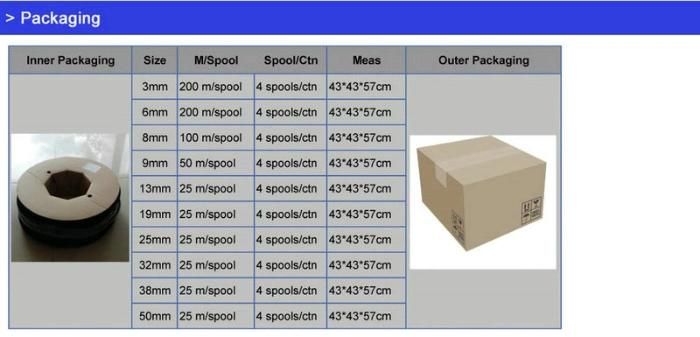

Packaging & shpping

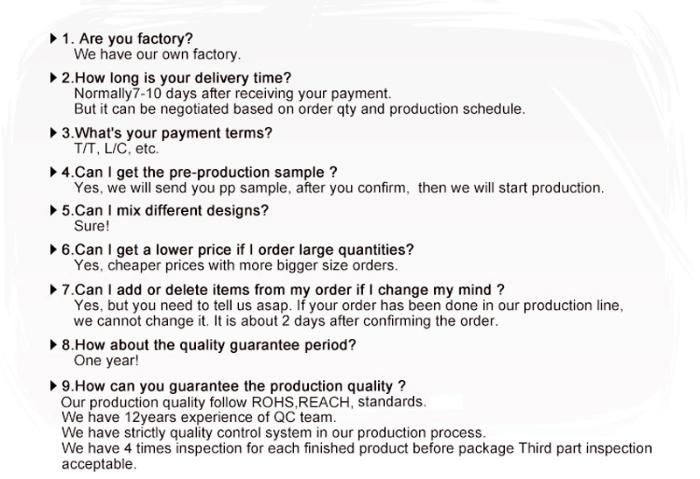

FAQ:
