• Model NO.：BS-WS
• Material Type：Polyester Monofilament and Multifilament
• Operating Range：-50°c - +150°c
• Melt Point：240c+-10c
• Flammability：UL94 V0, DIN5510
• Size：5mm@50mm
• Standard Color：Black
• Feature：Highly Abrasion Resistance
• Certificate：RoHS, Halogen Free
• Transport Package：100m,Roll, 50m,Roll, 25m,Roll or ODM
• Specification：5mm~50mm ID
• Trademark：QX
• Origin：Fujian, China
• HS Code：630790009
• Production Capacity：3000000 M,Month

Basic Info.

Model NO. BS-WS Material Type Polyester Monofilament and Multifilament Operating Range -50°c - +150°c Melt Point 240c+-10c Flammability UL94 V0, DIN5510 Size 5mm@50mm Standard Color Black Feature Highly Abrasion Resistance Certificate RoHS, Halogen Free Transport Package 100m/Roll, 50m/Roll, 25m/Roll or ODM Specification 5mm~50mm ID Trademark QX Origin Fujian, China HS Code 630790009 Production Capacity 3000000 M/Month

Product Description

Description

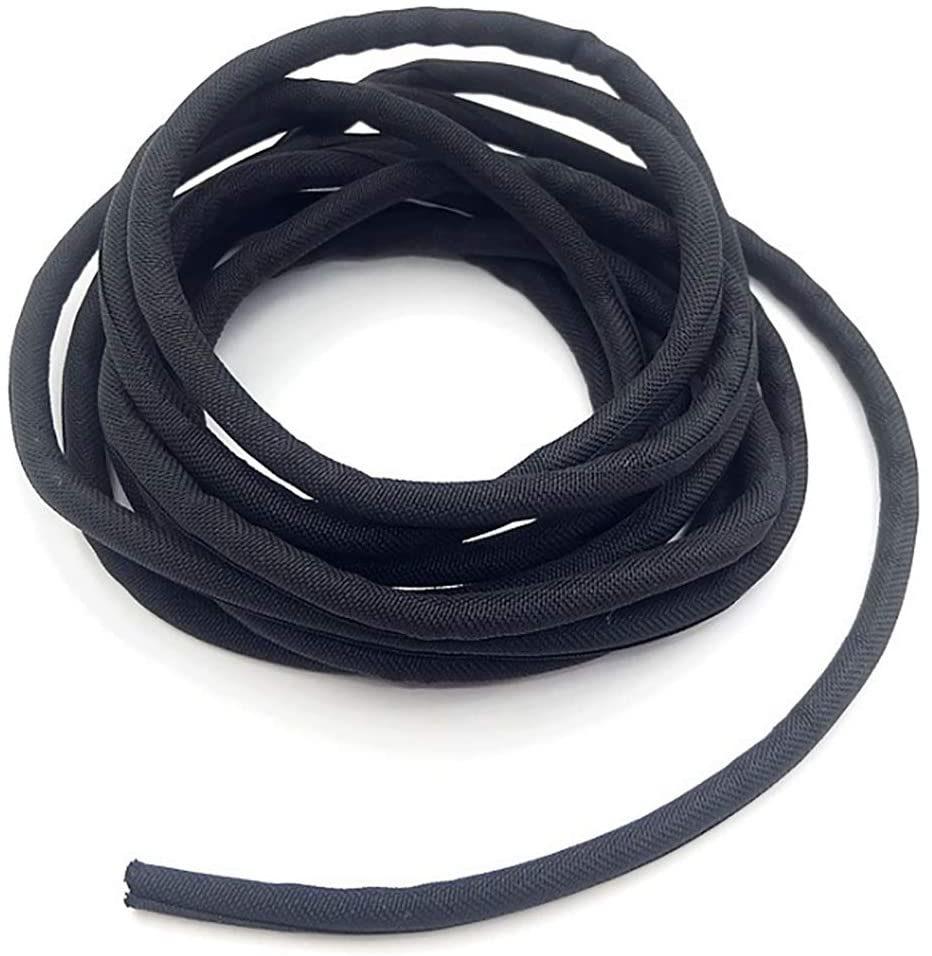

Woven wrap-around sleeving is a non-expandable sleeving woven from monofilament ( weft) and multifilament (warp) polyester yarns. It provides a lightweight, cost-effective and tough solution for the protection of a wide range of components. Its inherent flexibility allows it to bend, coil and comform to irregular shapes, while its open design allows it to be installed on completed assemblies.




Specifications

a.  Highly abrasion resistance
b.  Fireproof, dustproof and noise reduction
c.  Flexibility
d . Easy to install

Application
Most commonly used over wire harnesses, cable assemblies, flat ribbon cables, tubes and hoses to provide a tough, durable protection in automotive, automatic equipment, railways and panel boards.

Technical data

Material	Polyester monofilament multifilament
Operating range	-50C-+150C
Melt point	240+(-)10C
Flammability	U94 V0, DIN551
Certificate	RoHS, Halogen free
Standard color	Black
Cutting tool	Scissors
