4.0kv Silicone Insulating Flame Resistance Fiberglass Sleeving for Hosehold Electrical Applicnces
Xiamen QX Trade Co., Ltd.- Certification：CSA, RoHS
- Color：White,Colored
- Usage：Electric Wire
- Material：Fiberglass
- Type：Insulation Sleeve
- Application：Used for Supplementary Insulation on Transformer
Base Info
- Model NO.：BS-FS
- Chemistry：Organic Insulation
- Thermal Rating：200 200
- Maximum Voltage：<10kv
- Classification：Organic Insulating Material
- Standard Color：White

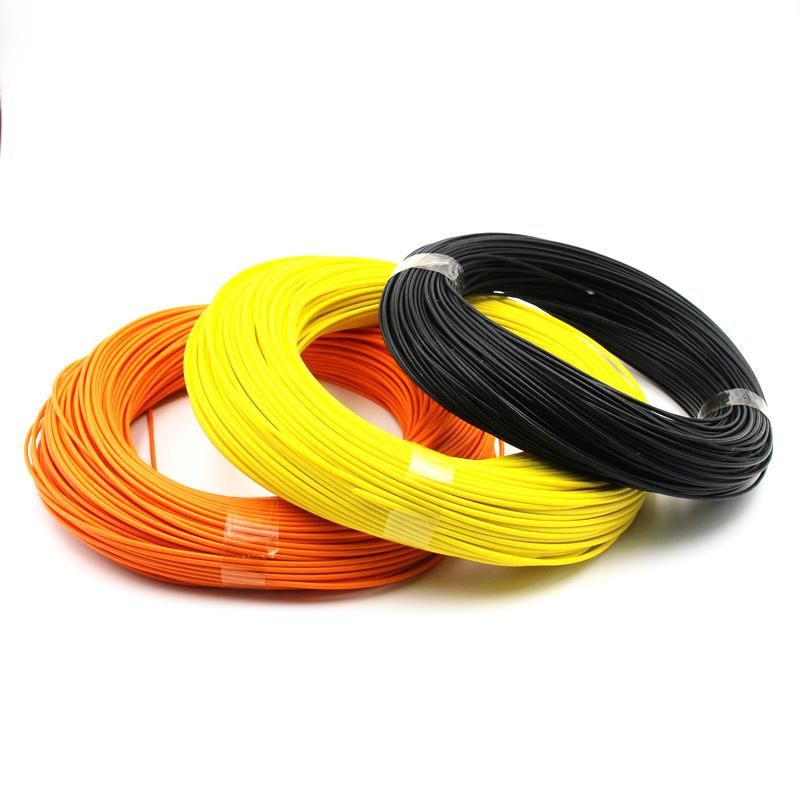

- Transport Package：100m,Roll
- Specification：0.8mm-100mm
- Trademark：Eko
- Origin：Made in China
- HS Code：7019909000
- Production Capacity：100, 000 M,Month
Description
Product Features
1.Tight weaving and full coverage
2.Economical and Easy to install
3.Non corrosive, fungas resistant
4.High temperature , aging resistant
5.Flexible and Soft
6.Self - extinguishing
7.High insulation
8.ROHS, UL, CSA Certification

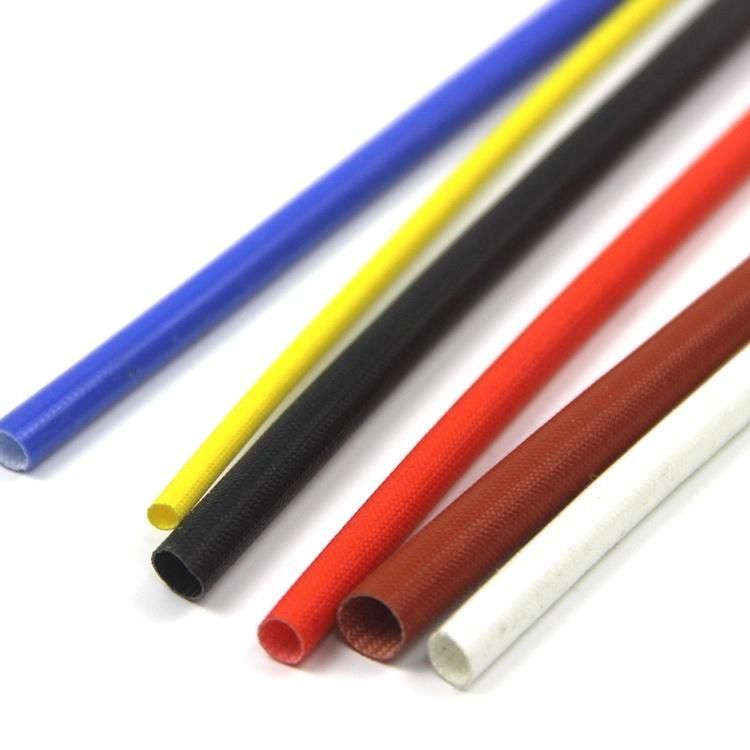

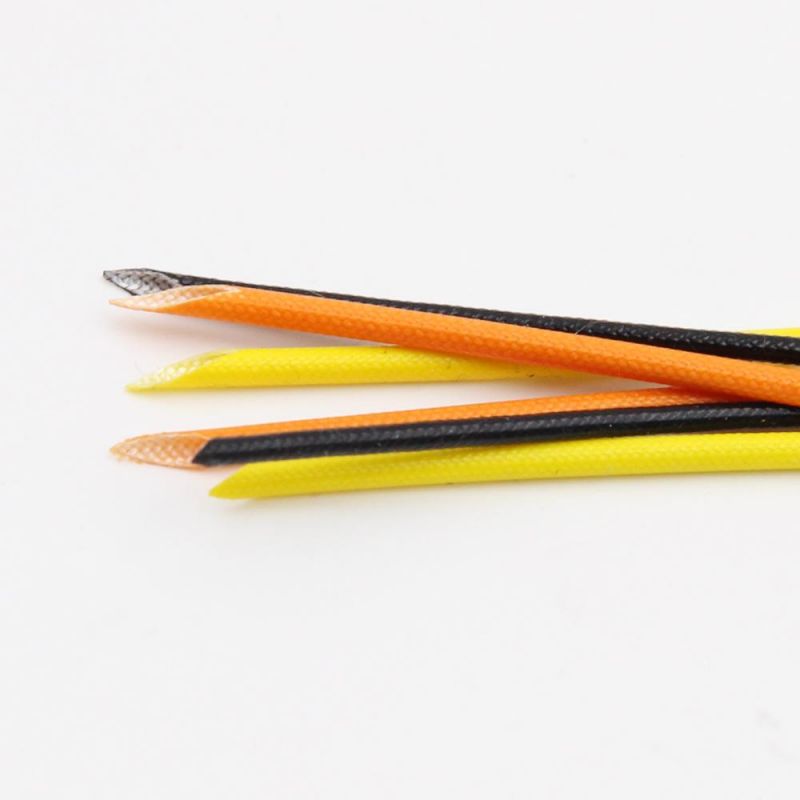

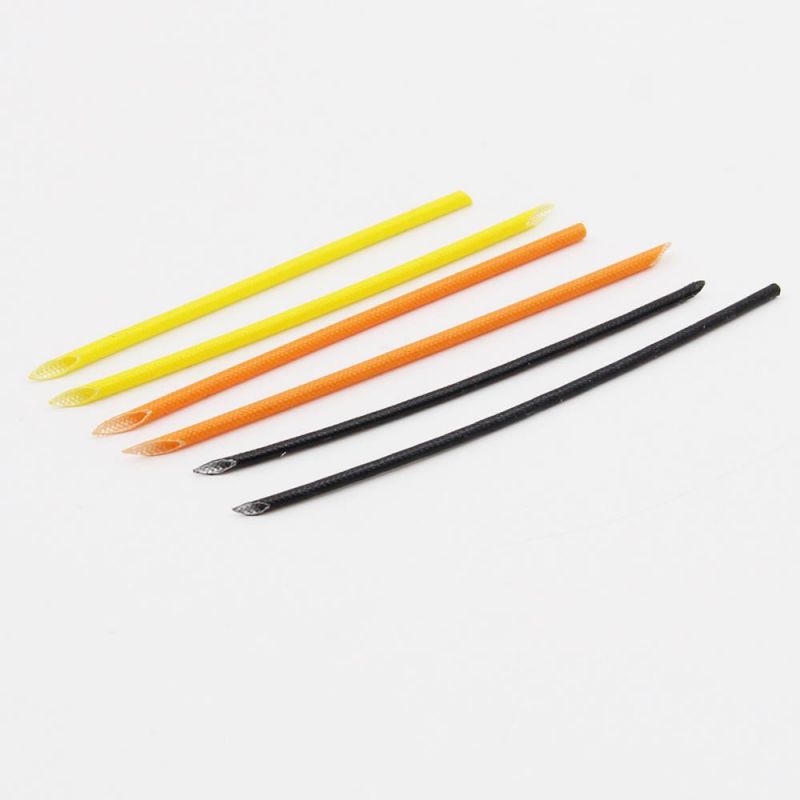

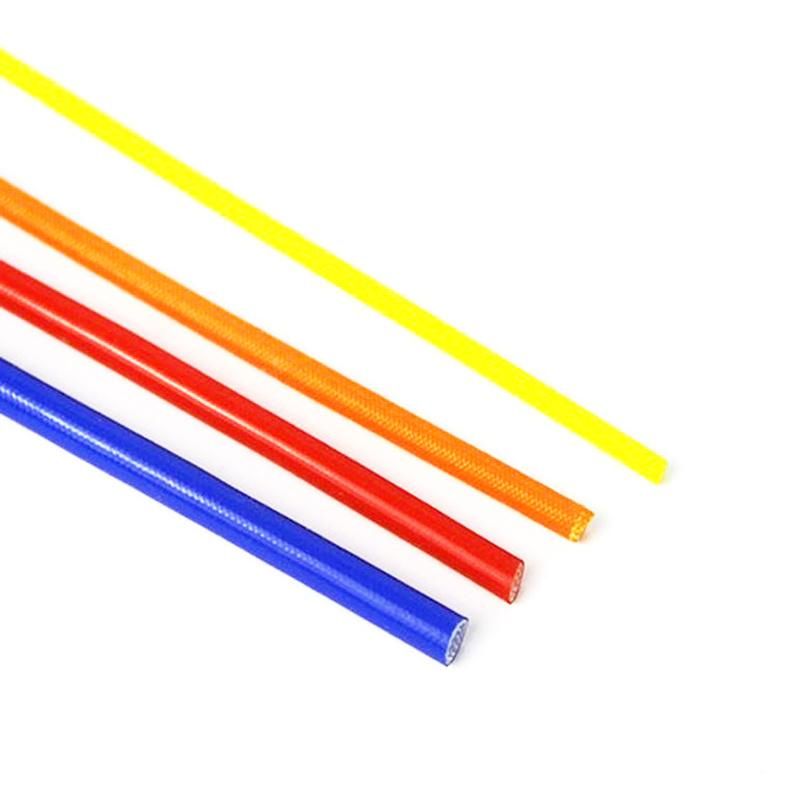

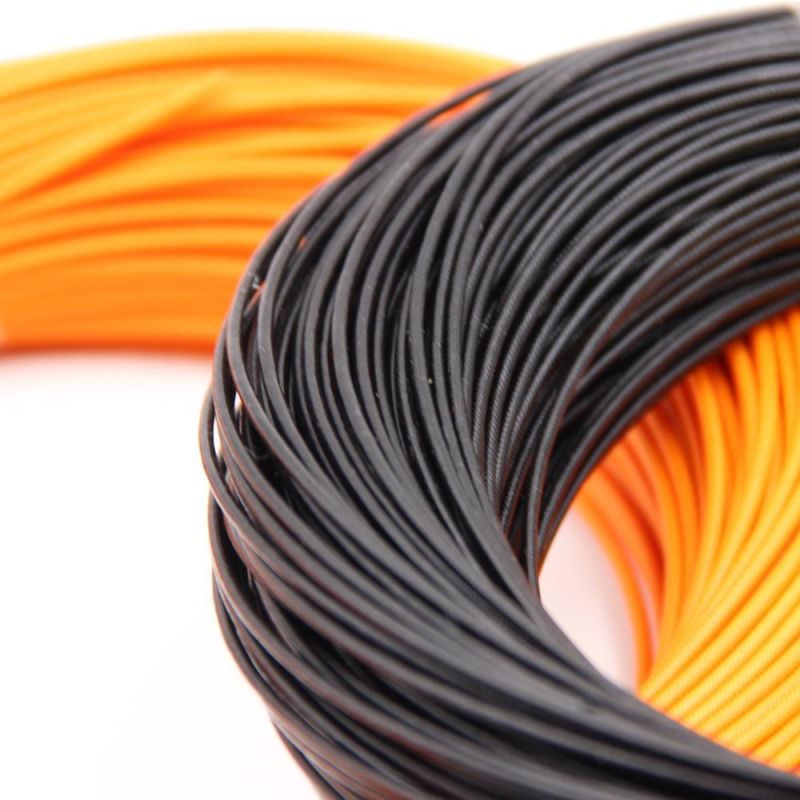

Details show
Application
These sleeves are widely used for supplementary insulation on transformer, motor, generator and resistor leads etc.
Technical data
| Sleeving material | Fiberglass fiber |
| Coating material | Silicone resin |
| Operating range | -60C-+200C |
| Breakdown voltage | 1.2kV-4.0kV |
| Flammability | VW-1 |
| Standard color | White |
| Certificate | UL, CSA, RoHS |
| Cutting tool | Cutting machine, Scissors |
Datasheet
| Part No. | I.D :mm | Wall thickness :mm | Packaging (L) |
| BS-FS0.8 | 0.80 | 0.30 | 100m/roll |
| BS-FS1.0 | 1.00 | 0.30 | 100m/roll |
| BS-FS1.5 | 1.50 | 0.30 | 100m/roll |
| BS-FS2.0 | 2.00 | 0.35 | 100m/roll |
| BS-FS2.5 | 2.50 | 0.35 | 100m/roll |
| BS-FS3.0 | 3.00 | 0.35 | 100m/roll |
| BS-FS4.0 | 4.00 | 0.40 | 100m/roll |
| BS-FS10.0 | 10.00 | 0.50 | 50m/roll |
| BD-FS12.0 | 12.00 | 0.50 | 50m/roll |
