• Model NO.：BS-PET
• Customized：Customized
• Condition：New
• Available Size：3mm~100mm Flat Width
• Classification：Pet Braided Sleeving
• Standard Color：Black, Grey
• Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
• Specification：3mm to 100mm Flat Width
• Trademark：QX
• Origin：Fujian, China
• HS Code：4602900000
• Production Capacity：3000000 M,Month

Product feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration  & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.

2. Braided of 0.25mm / 0.2mm Pet monofilament.

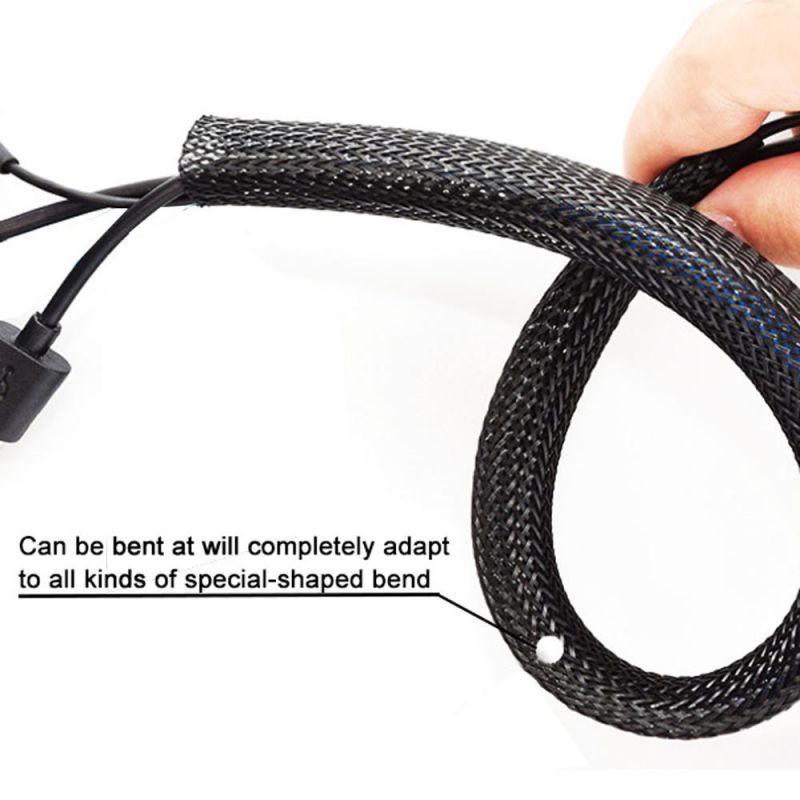

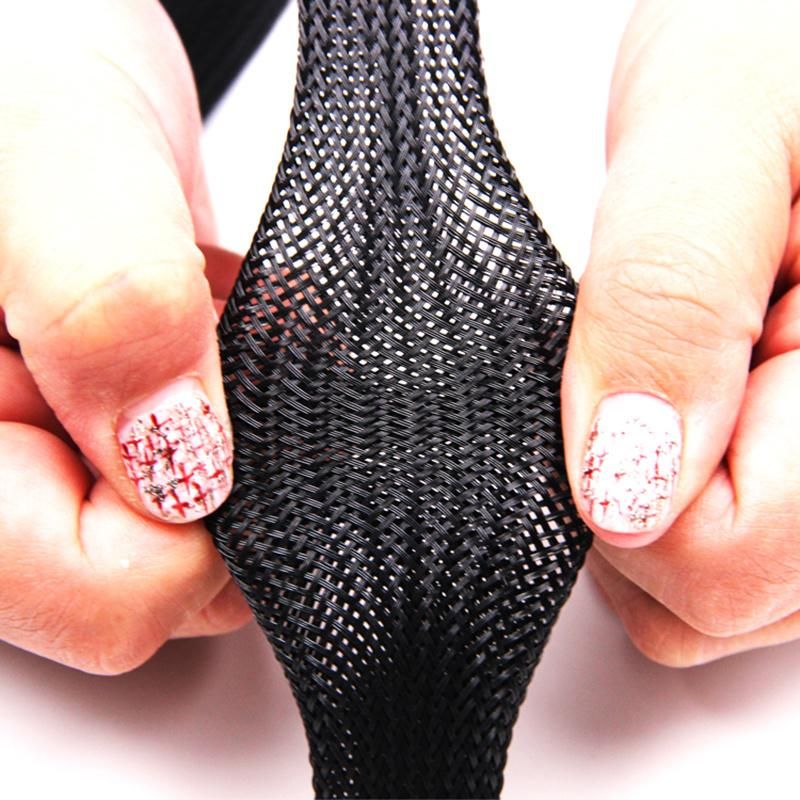

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

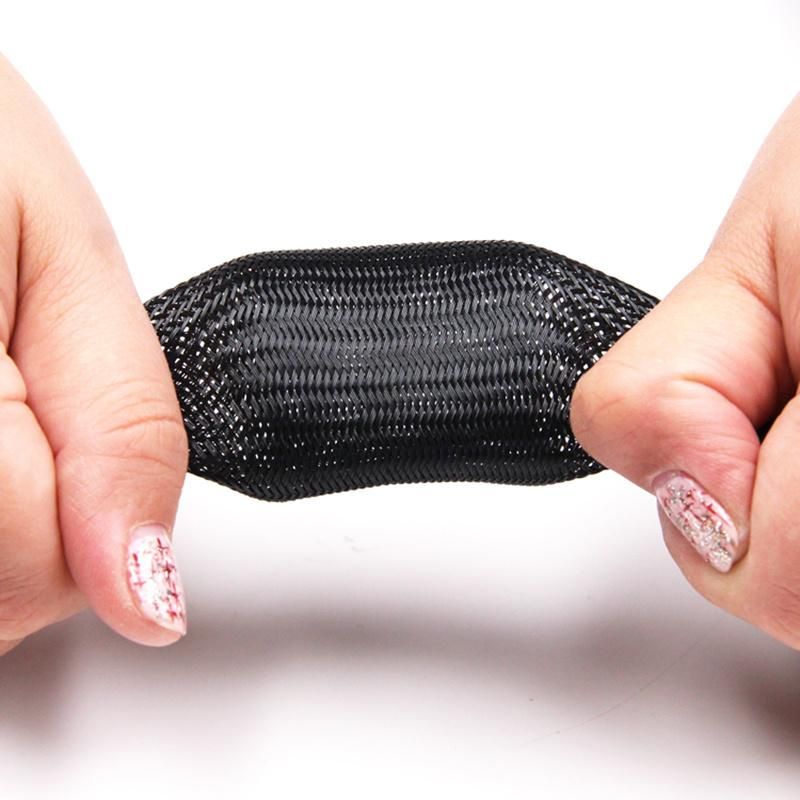

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.

5. Customized,Special package is willing to accepted,can be product according to customers requirements.
Technical data:
1. Material: Polyester

2. Operating range: - 50C - +150C

3. Melt Point: 250C+-5C

4. Flammability: VW-1

5. Standard colour: Black and grey

6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free

7. Cutting tool: Hot knife

Application:

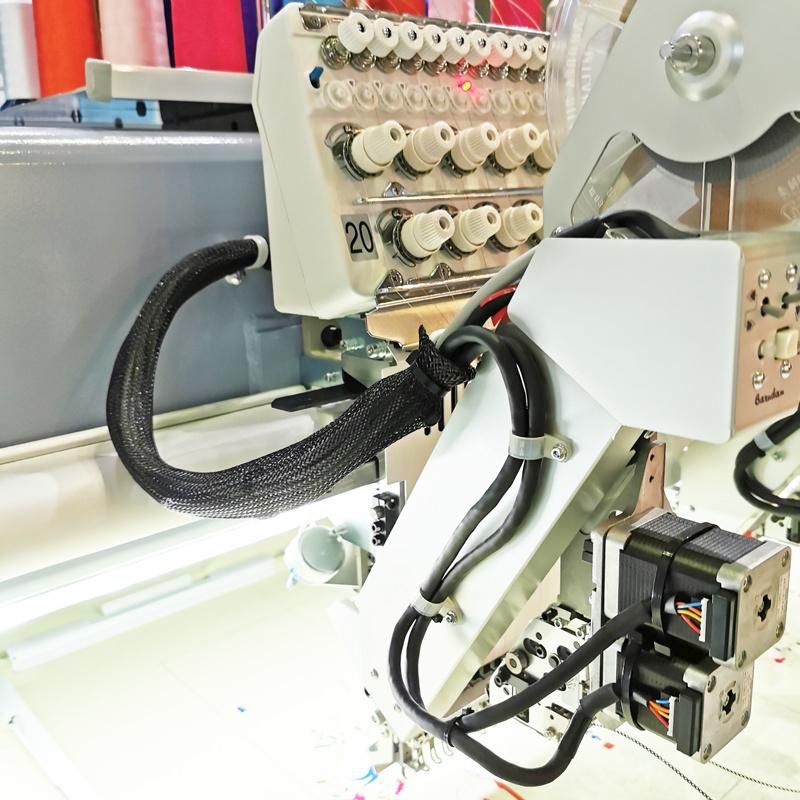

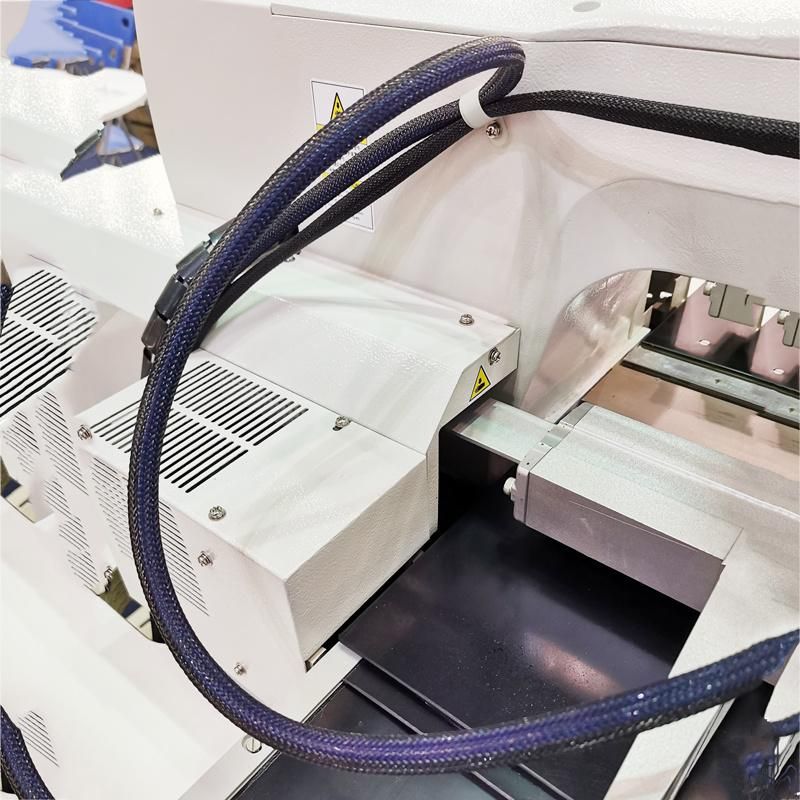

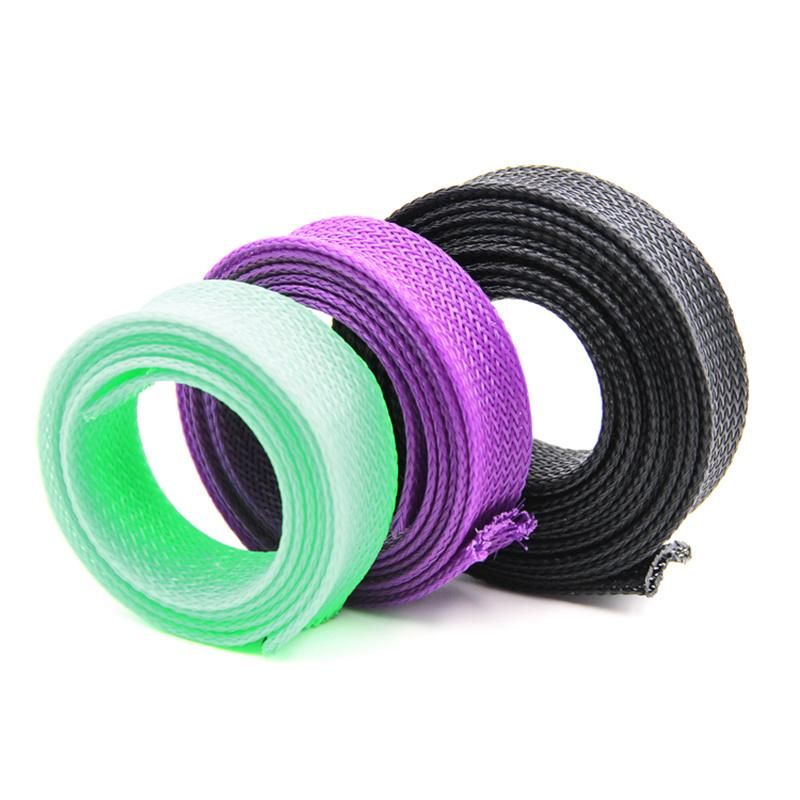

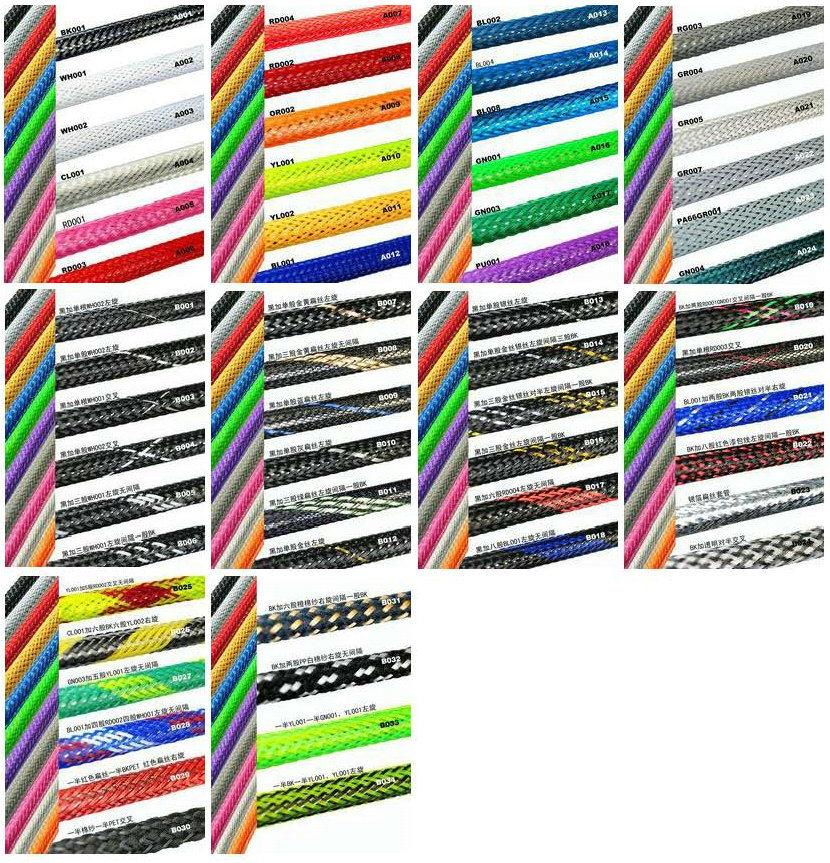

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.DatasheetPart No Size Expanded Range(mm)  Packing (L)  Flat width(mm) Min(I) Max.(O) M/spool BS-PET003 3 1 6 1000 BS-PET006 6 3 9 500 BS-PET008 8 516 350 BS-PET010 10 719 350 BS-PET012 12 824 300 BS-PET016 161027 250 BS-PET019 201430 200 BS-PET025 251835 200 BS-PET032 322050 150 BS-PET038 383060 100 BS-PET045 453575 100 BS-PET050 504080 100 BS-PET064 6445105 100 BS-PET076 7664120 100   Color Guide:FAQ
