FTTH Accessories Fiber Optical Cable Planar Lightwave Circuit Splitter
Qingdao Powtech Electronics Co., Ltd.- Certification:RoHS, ISO, CE
- Color:Colored
- Surface Treatment:Polishing
- Usage:Electrical Appliance, Telecom
- Material:Plastic
- Type:as Picture
Base Info
- Model NO.:PLC
- Nane:PLC Splitter
- Operating Wavelength(Nm):1260 ~ 1650
- Min.Return Loss (dB):55
- Max.Temperature Stability (dB):0.5( Typical 0.3 )
- Transport Package:Carton
- Specification:CE, RoHS, SGS, ISO
- Trademark:Powtech
- Origin:China
- Production Capacity:10000PCS,Month
Description
ParameterOperating Wavelength(nm) 1260 ~ 1650 Type(1*N) 1*2 1*4 1*8 1*16 1*32 1*64 Max.Insertion Loss(dB) 3.9 7.2 10.3 13.5 16.8 20.3 Max.Uniformity(dB) 0.8 0.8 0.8 1.0 1.5 2.0 Min.Return Loss(dB) 55 Max.PDLs (dB) 0.2 0.3 0.3 0.3 0.3 0.5 Type(2*N) 2*2 2*4 2*8 2*16 2*32 2*64 Max.Insertion Loss(dB) 4.2 7.5 10.6 13.9 17.2 20.8 Max.Uniformity(dB) 0.8 1.0 1.2 1.5 1.8 2.0 Min.Return Loss (dB) 55 Max.PDL(dB) 0.2 0.3 0.3 0.3 0.3 0.5 Fiber Type ITU-T G657A1 , G657A2 and G.652D Max.Temperature Stability (dB) 0.5( Typical 0.3 ) Operating Temperature(ºC) -40 ~ +85 Storage Temperature(ºC) -40 ~ +85
PLC Splitter Type and Packagin

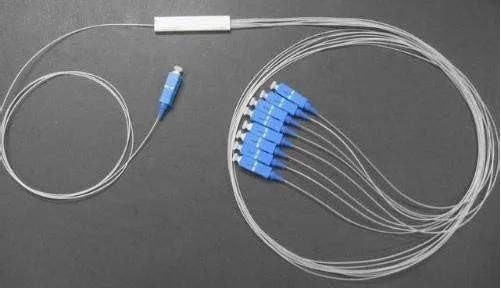

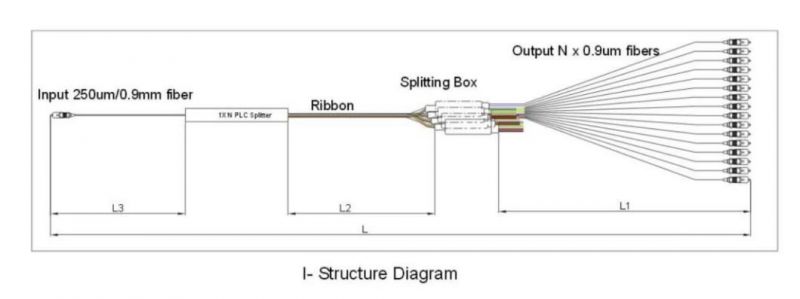

1, Basic Plc Splitter(Bare ribbon type)

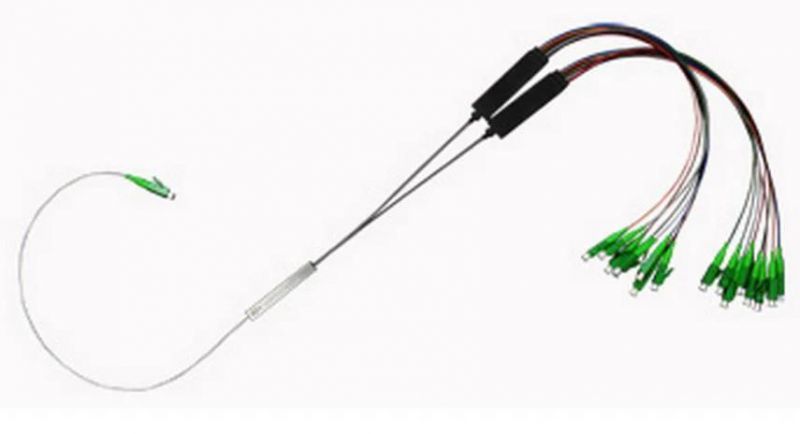

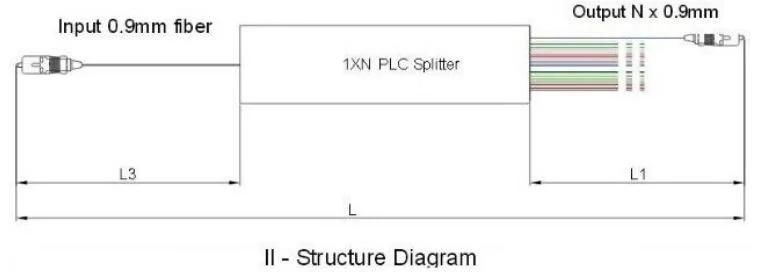

2. Mini Module Type PLC Splitter

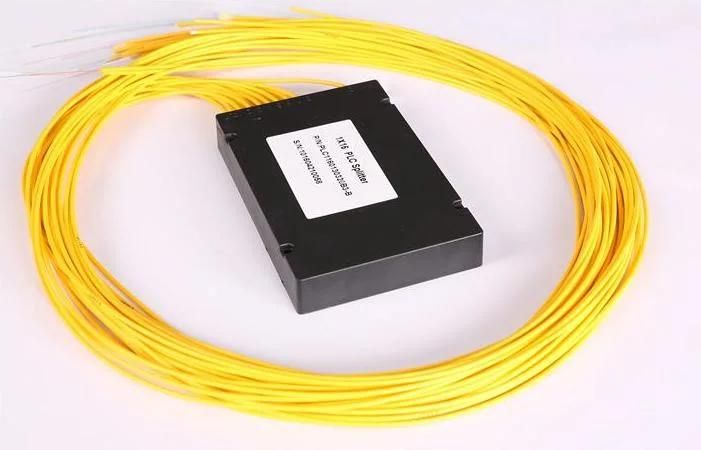

3. Module Box Type
PLC Splitter Type and Packagin
1, Basic Plc Splitter(Bare ribbon type)
2. Mini Module Type PLC Splitter
3. Module Box Type
