• Model NO.：GL-4013
• Connector Port：RJ45 Socket
• IDC Contact Pin：Gold-Plating
• IDC Body：Anti-Burn PC UL94V-0
• Transport Package：White Box
• Trademark：OEM
• Origin：China
• HS Code：8517709000
• Production Capacity：20000 Piece,Pieces , Month

Basic Info.

Model NO. GL-4013 Connector Port RJ45 Socket IDC Contact Pin Gold-Plating IDC Body Anti-Burn PC UL94V-0 Transport Package White Box Trademark OEM Origin China HS Code 8517709000 Production Capacity 20000 Piece/Pieces / Month

Product Description

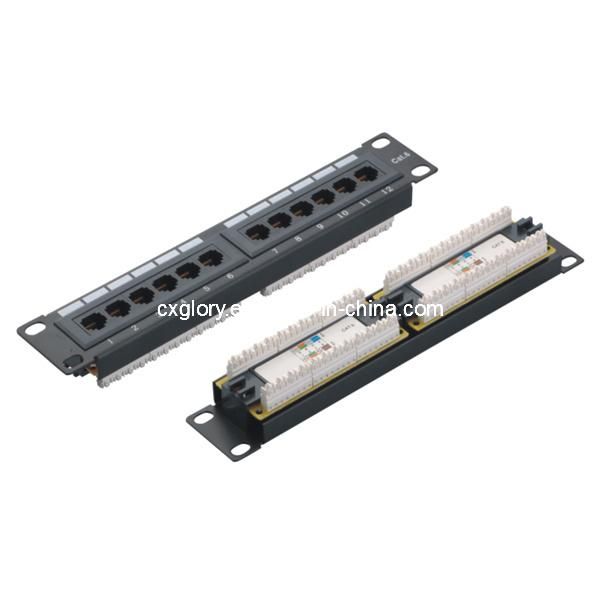

10 inch 12 Port Rack-mounted Patch Panel
1. GL-4013A-110 12 port Cat. 5e Patch panel(110 IDC)
2. GL-4013A-Dual 12 port Cat. 5e Patch panel(Dual IDC)
3. GL-4013A-KR 12 port Cat. 5e Patch panel(krone IDC)
4. GL-4013B-110 12 port Cat. 6 Patch panel(110 IDC)
5. GL-4013B-Dual 12 port CAT6 Patch panel(Dual IDC)
When ordering, pls select the type of IDC(110, DUAL OR Krone, also decide front frame type(print or lable paper)

The main commutation mean is patch cords (a sections of cable, usually up to 5 m long, of the appropriate category with plug-type connections at the ends). They are used to connect patch panel ports, active equipment, sockets at the working places (PC, telephones, printers, etc).

The cable is laid to each port and using a special tool is mounted (connected to) in the IDC module (IDC is Insulation Displacement Connection). There are the following types of IDC modules: of type 110 , Krone and Dual IDC (universal). Depending on the module type different tools are used for cable mounting. Dual IDC is a universal module and admits use both 110 type tool and Krone type tool for cable mounting.

Panels may be mounted on the wall and in 19" telecommunication cabinets, racks and frames. Some kinds of panels are produced according to standard 10".
