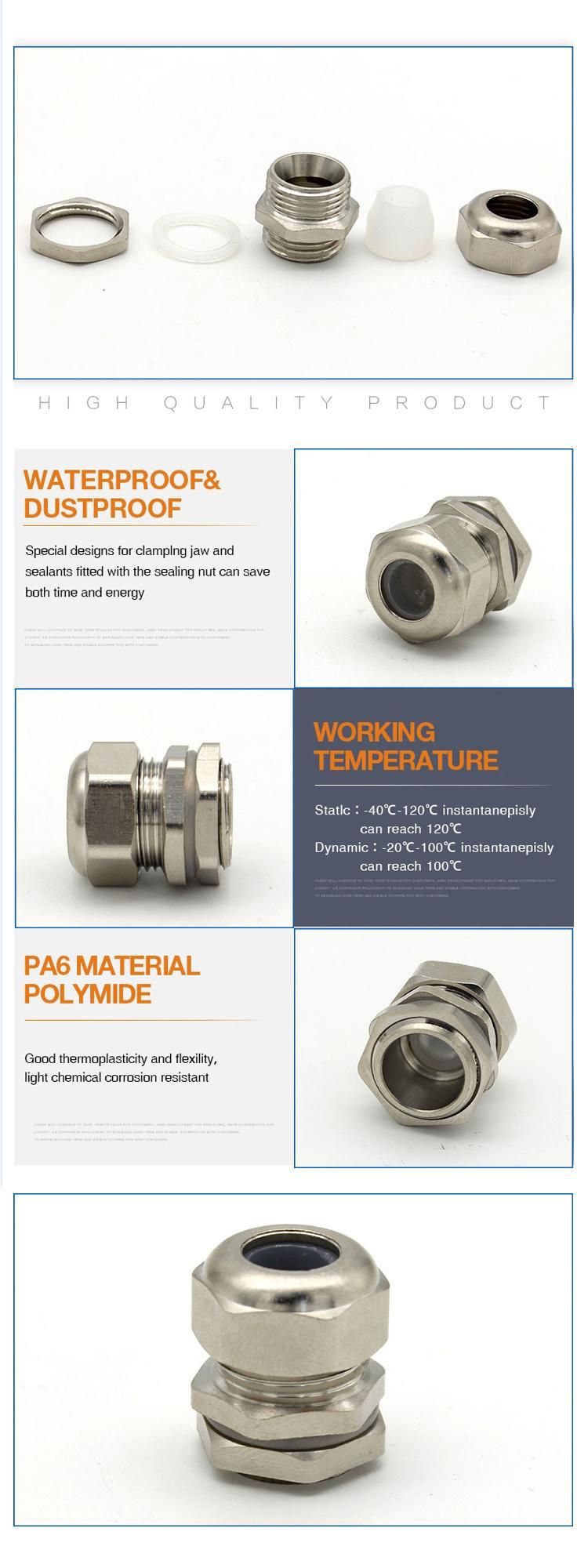

Metal Watertight IP68 Cable Glands Pg Thread
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP68
- Material：Brass
- Transport Package：Polybag+Label Export Carton Box
Base Info
- Model NO.：PG thread
- Specification：Metric
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547909000
- Production Capacity：50000PCS,Week
Description
Cable Gland ParametersThread Thread AG Cable range
(mm) Thread O.D
(mm) Mounting Hole
Diamter (mm) Thread Length
GL(mm) Spanner size
(mm) Metric thread M8x1 2-5 8 8-8.2 5 12 M10x1 3-6.5 10 10-10.2 7 14 M12x1.5 3-6.5 12 12-12.2 7 14 M14x1.5 4-8 14 14-14.2 7 17 M16x1.5 4-8 16 16-16.2 8 18 M18x1.5 5-10 18 18-18.2 8 20 ***** ***** ***** ***** ***** ***** M100x2 78-84 100 100-100.2 15 110 PG thread PG7 3-6.5 12.5 12.5-12.7 7 14 PG9 4-8 15.2 15.2-15.4 8 18 PG11 5-10 18.6 18.6-18.8 8 20/21 PG13.5 6-12 20.4 20.4-20.6 8 22 ***** ***** ***** ***** ***** ***** PG63 42-52 72 72-72.2 15 78 G thread G1/4 3-6.5 13.1 13.1-13.3 7 14 G3/8 4-8 16.6 16.6-16.8 8 18 G1/2 6-12 20.9 20.9-21.1 8 22 ***** ***** ***** ***** ***** ***** G3 65-70 87.8 87.8-88 15 94 NPT thread NPT1/4 3-6.5 13.6 13.6-13.8 7 14 NPT3/8 4-8 17 17-17.2 8 18 NPT1/2 6-12 21.2 21.2-21.4 8 22 ***** ***** ***** ***** ***** ***** NPT3 65-70 88.6 88.6-88.8 15 98 More size, kindly contact for further communication( we also provide customization service)..
FAQ:
Q: Are you trading company or manufacturer?
A: We are CABLE GLAND factory, we also export the goods by ourselves.
Q: How long is your delivery time?
A: Generally the delivery time should be 1-3 days if the glands are in stock.
Q: Do you provide samples? Is it free or not ?
A: Yes, we offer several free cable glands for test, but don't pay for the cost of freight.
Q: What is your terms of payment ?
A: Payment <=1000USD, 100% in advance. Payment >=1000USD, 30%T/T in advance, the rest before shippment.
Q: How about the after-sale service?
A: Any feedback or comment of cable gland and our service are welcomed. We will try to make the best assistant to let you maximum satisfaction.
More information about Cable Gland, kindly contact directly( we provide customization service ).
