One Armor Rod Band Mounted Suspension Clamp
Qingdao Powtech Electronics Co., Ltd.- Installation：Through Stainless Steel Strap
- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Aluminum
- Sheath Material：PVC
Base Info
- Model NO.：AQXM
- Insulation Material：PE
- Material Shape：Round Wire
- Range of Application：Cold-Resistant
- Name：One Armor Rod Band Mounted Suspension Clamp
- Span Length：200m
- Rts：40kn
- Transport Package：Wooden Case
- Specification：CE, RoHS
- Trademark：Powtech
- Origin：China
- HS Code：76109090
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. AQXM Insulation Material PE Material Shape Round Wire Range of Application Cold-Resistant Name One Armor Rod Band Mounted Suspension Clamp Span Length 200m Rts 40kn Transport Package Wooden Case Specification CE, RoHS Trademark Powtech Origin China HS Code 76109090 Production Capacity 10000PCS/MonthProduct Description

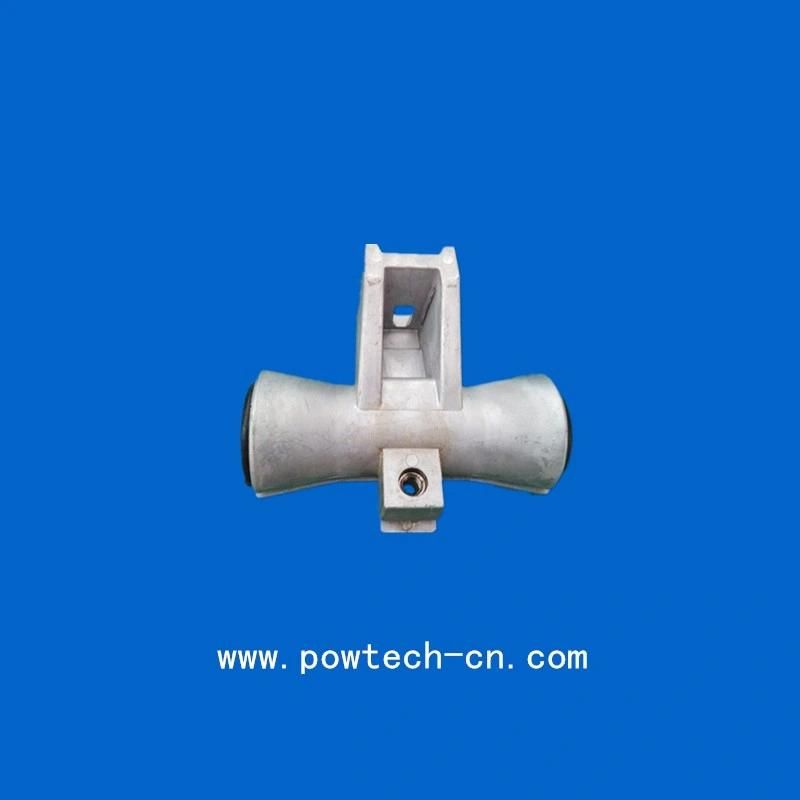

One Armor Rod Band Mounted Suspension Clamp
Applications:
The suspension sets is designed to gently, but firmly support ADSS cable. The AQXM suspension set features the following: band mount design, hinged keeper, single-bolt clamping, and stackability for multi-cable installations.
Configuration
| S.No | Description | Qty | Material |
| 1 | Keeper | 1 | Aluminium alloy |
| 2 | Cushion inserts | 1 | Synthetic rubber |
| 3 | Captured bolt & washer | 1 | Stainless Steel |
| 4 | Lock nut | 1 | Stainless Steel |
Data sheet:
Max. Span length: 200m
RTS: 40KN
| Model | Cable diameter | Armor Rods (mm) | Weight(kg) |
| AQXM 200-XX | 9.0-18.0 | 0 | 1.1 |

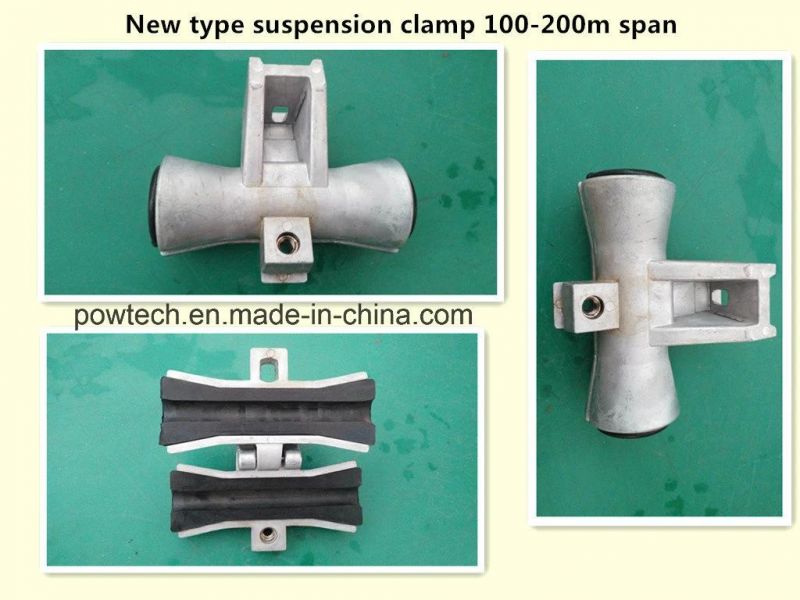

Details Images:
Production line:

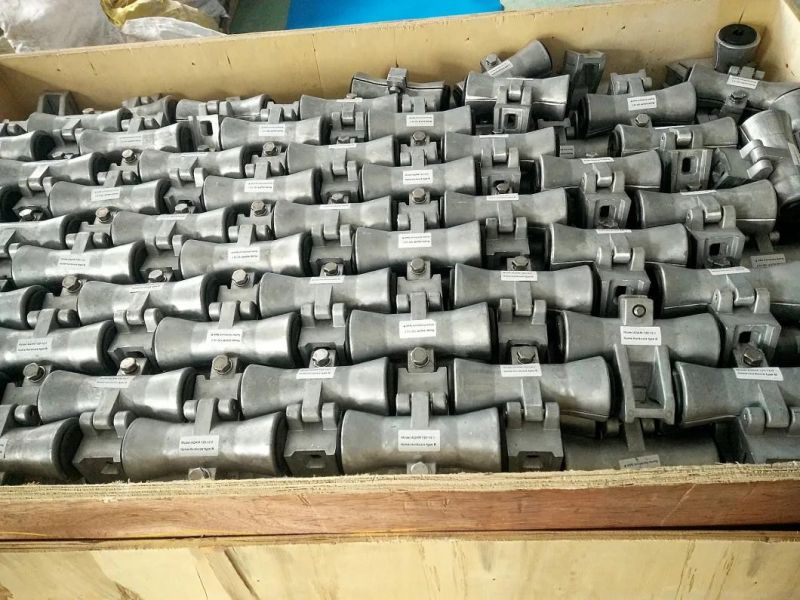

Package&Shipment:

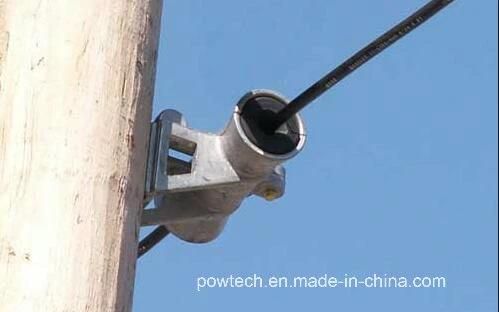

Installation Guide:
