ADSS 120m Spanterminal Type B Suspension Clamp
Qingdao Powtech Electronics Co., Ltd.- Installation：Through Stainless Steel Strap
- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Aluminum
- Sheath Material：PVC
Base Info
- Model NO.：AQXM
- Insulation Material：PE
- Material Shape：Round Wire
- Range of Application：Cold-Resistant
- Name：ADSS 120m Spanterminal Type B Suspension Clamp
- Rts：40kn
- Span Length：200m
- Transport Package：Wooden Case
- Specification：CE, RoHS
- Trademark：Powtech
- Origin：China
- HS Code：76109090
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. AQXM Insulation Material PE Material Shape Round Wire Range of Application Cold-Resistant Name ADSS 120m Spanterminal Type B Suspension Clamp Rts 40kn Span Length 200m Transport Package Wooden Case Specification CE, RoHS Trademark Powtech Origin China HS Code 76109090 Production Capacity 10000PCS/MonthProduct Description

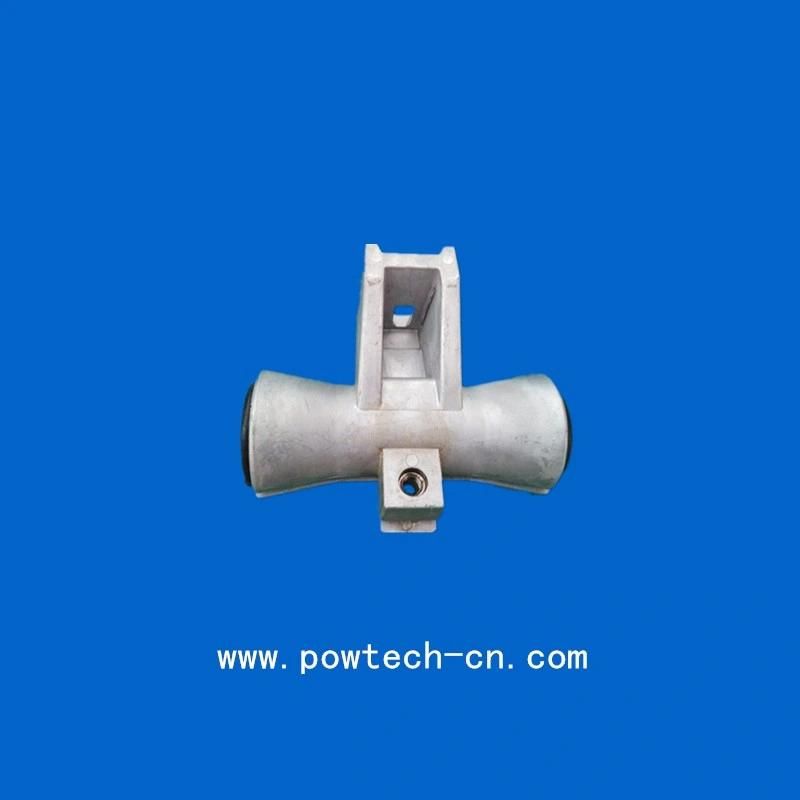

ADSS 120m SpanTerminal Type B Suspension Clamp
Applications:
The suspension sets is designed to gently, but firmly support ADSS cable. The AQXM suspension set features the following: band mount design, hinged keeper, single-bolt clamping, and stackability for multi-cable installations.

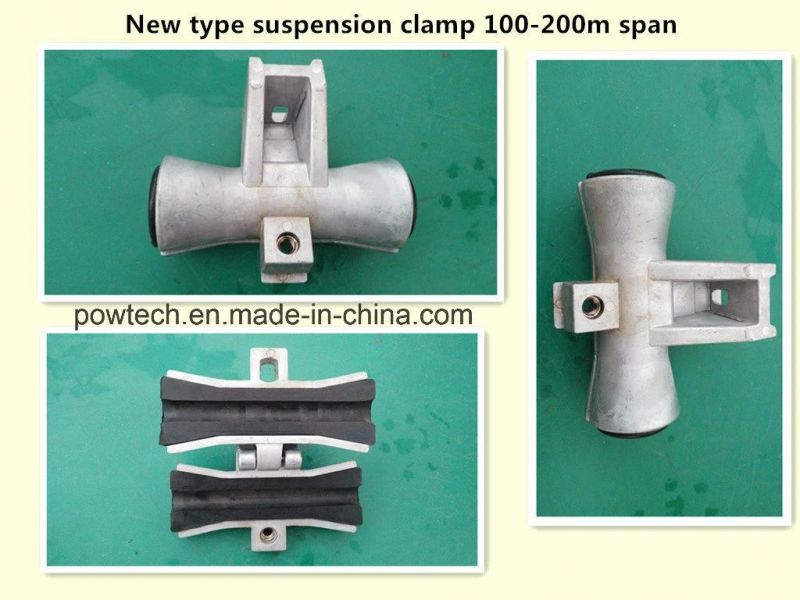

Configuration
| S.No | Description | Qty | Material |
| 1 | Keeper | 1 | Aluminium alloy |
| 2 | Cushion inserts | 1 | Synthetic rubber |
| 3 | Captured bolt & washer | 1 | Stainless Steel |
| 4 | Lock nut | 1 | Stainless Steel |
Data sheet:
Max. Span length: 200m
RTS: 40KN
| Model | Cable diameter | Armor Rods (mm) | Weight(kg) |
| AQXM 200-XX | 9.0-18.0 | 0 | 1.1 |
Production line:

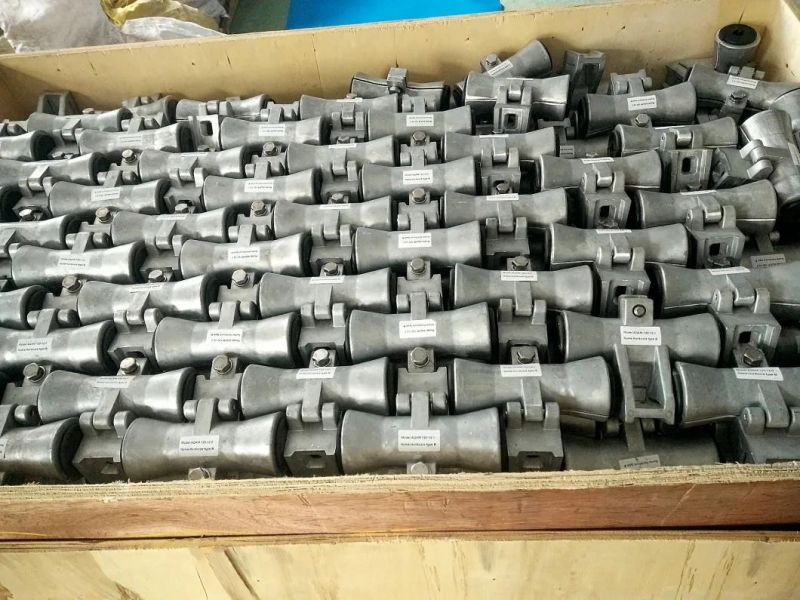

Package&Shipment:

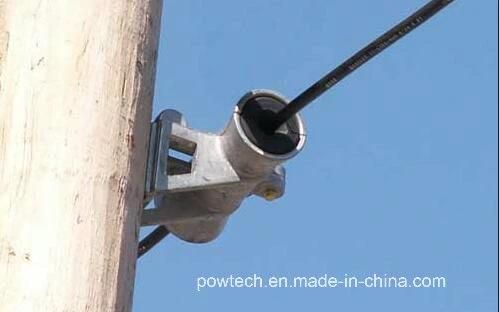

Installation Guide:
