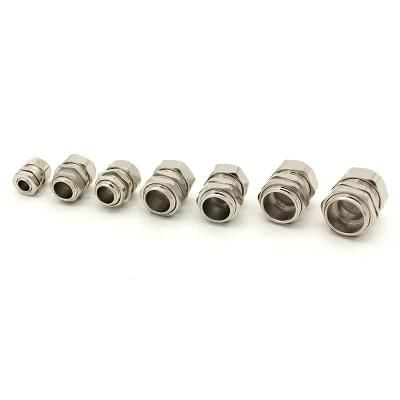

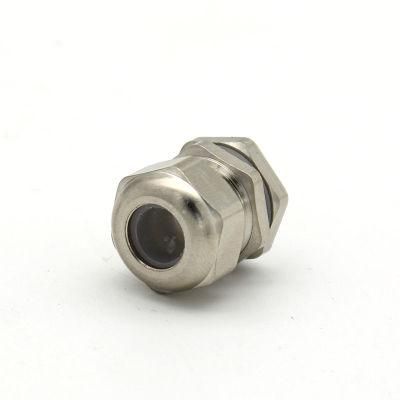

Cw Armoured Brass Cable Gland Brass Plated Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP66
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP66
- Material：Brass
- Transport Package：Polybag+Label Export Carton Box
Base Info
- Model NO.：Metric Thread
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547909000
- Production Capacity：50000PCS,Week
Description
CW Cable Gland - Armored, Metric, NPT Thread
Code
Entry Thread
Cable Dia
Thread length L(mm)
Entry Hole Size (mm)
Armor
Braid
Hexagon Dimensions "H"
Length " L" (mm)
Metric
NPT
Outer A
Metric
NPT
Metric
NPT
Size
Size
JX-CW-16A
M16/M20
1/2''
8-13
15
15
17/21
22
0.9/1.25
0.05/0.8
H25*27
59
JX-CW-16B
M16/M20
1/2''
12-15.1
15
15
17/21
22
0.9/1.25
0.05/0.8
H25*27
59
JX-CW-20A
M20
1/2''/ 3/4''
13-17.5
15
15/16
21
22/27
0.9/1.25
0.05/0.8
H31*34
65
JX-CW-20B
M20
1/2''/ 3/4''
16-19.5
15
15/16
21
22/27
0.9/1.25
0.05/0.8
H31*34
65
JX-CW-25A
M25
3/4'' / 1''
17.5-22
15
16/18
26
27/34
1.25/1.6
0.05/0.8
H36*39
70
JX-CW-25B
M25
3/4'' / 1''
21-26
15
16/18
26
27/34
1.25/1.6
0.05/0.8
H36*39
70
JX-CW-32A
M32
1'' / 1.1/4''
22-28
15
18/19
33
34/43
1.6/2.0
0.05/1.2
H45*49
74
JX-CW-32B
M32
1'' / 1.1/4''
27-32
15
18/19
33
34/43
1.6/2.0
0.05/1.2
H55*59
74
JX-CW-40A
M40
1.1/4'' / 1.1/2''
30-35
15
19/21
41
43/50
1.6/2.0
0.05/1.2
H55*59
82
JX-CW-40B
M40
1.1/4'' / 1.1/2''
35.1-40
15
19/21
41
43/50
1.6/2.0
0.05/1.2
H68*73
82
JX-CW-50A
M50
1.1/2'' / 2''
38-45
15
21/24
51
50/62
1.8/2.5
0.05/1.2
H68*73
88
JX-CW-50B
M50
1.1/2'' / 2''
43-50
15
21/24
51
50/62
1.8/2.5
0.05/1.2
H82*88
88
JX-CW63A
M63
2'' / 2''
48-53
15
24/24
64
62/74
1.8/2.5
0.05/1.2
H82*88
100
JX-CW63B
M63
2'' / 2.1/2''
51-56
15
24/27
64
62/74
1.8/2.5
0.05/1.2
H82*88
100
JX-CW63C
M63
2'' / 2.1/2''
55-60
15
24/27
64
62/74
1.8/2.5
0.05/1.2
H98*106
100
JX-CW75A
M75
2.1/2'' / 2.1/2''
56-62
20
27/27
76
74/90
1.8/2.5
0.05/1.2
H98*106
121
JX-CW75B
M75
2.1/2'' / 2.1/2''
62.1-66
20
27/27
76
74/90
1.8/2.5
0.05/1.2
H98*106
121
JX-CW75C
M75
2.1/2'' / 3''
66.1-70
20
27/30
76
74/90
1.8/2.5
0.05/1.2
H98*106
121
JX-CW75D
M75
2.1/2'' / 3''
68-75
20
27/30
76
74/90
1.8/2.5
0.05/1.2
H98*106
121
JX-CW90A
M90
3'' / 3.1/2''
74-83
25
30/32
91
90/102
1.8/3.0
0.05/1.6
H110*120
133
JX-CW90B
M90
3'' / 3.1/2''
82-90
25
30/32
91
90/102
1.8/3.0
0.05/1.6
H110*120
133
JX-CW100A
M100
3.1/2'' / 4''
89-94
25
30
101
102/116
1.8/3.0
0.05/1.6
H120*130
145
JX-CW100B
M100
3.1/2'' / 4''
93-98
25
30
101
102/116
1.8/3.0
0.05/1.6
H120*130
145
