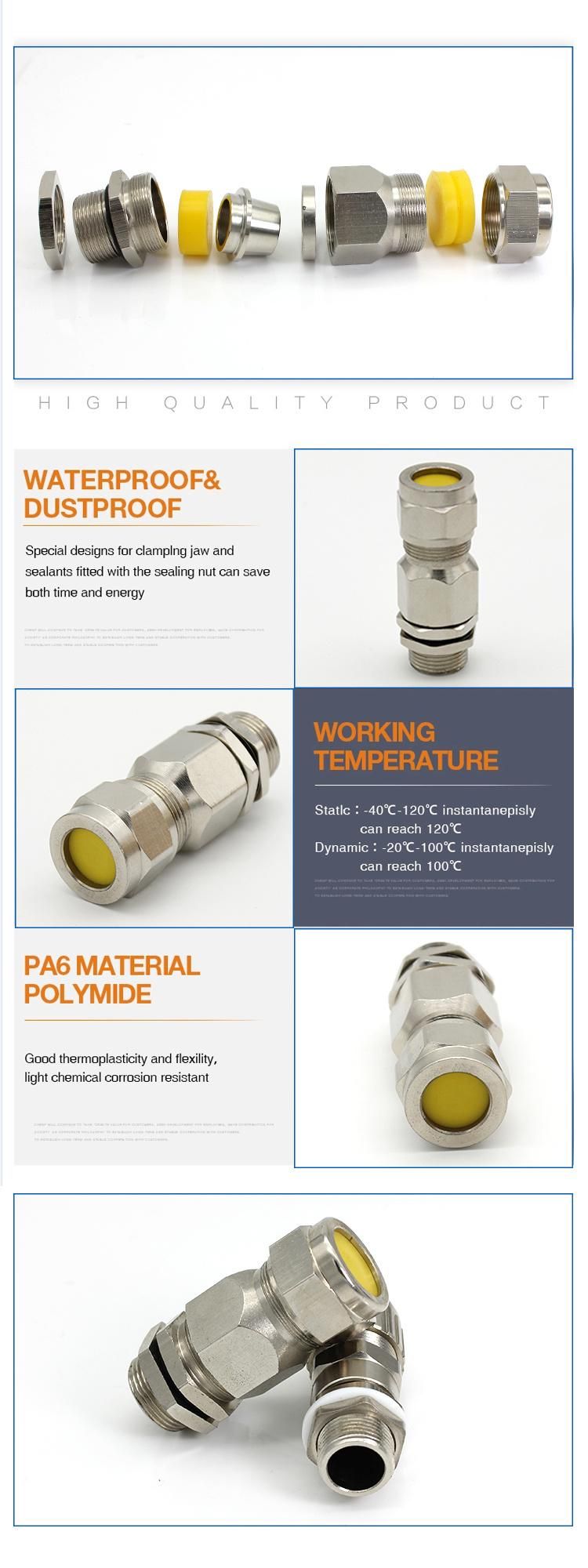

Ex Clamp Sealing Joint Explosion-Proof Cable Gland

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE, Ex; IP66
  • Surface Treatment：Electroplating
  • Color：Metalic
  • IP Rating：IP66
  • Material：Brass
  • Transport Package：Polybag+Label Export Carton Box

Base Info

  • Model NO.：Metric Thread
  • Trademark：Jixiang
  • Origin：Zhejiang; China
  • HS Code：8547909000
  • Production Capacity：50000PCS,Week

Description

EX Standard Cable Gland JX6 Series - Metric, G Thread

Product Code

Thread  AG

Outer Diameter of Cable (mm)

Thread length L1(mm)

Length L (mm)

Outlet A

Incoming Line B

JX-6-EX-15A

M16*1.5

-

5-8

7-15

15

67

JX-6-EX-15B

M20*1.5

G1/2

5-12

8-15

15

67

JX-6-EX-20

M25*1.5

G3/4

8-17

11-20

15

71

JX-6-EX-27

M32*1.5

G1

11-22

14-27

17

76

JX-6-EX-33

M40*1.5

G1 1/4

14-28

19-33

17

76

JX-6-EX-40

M50*1.5

G1 1/2

16-33

22-40

17

94

JX-6-EX-50

M63*1.5

G2

29-43

29-50

17

98

JX-6-EX-63

M75*1.5

G2 1/2

38-57

35-63

17

112

JX-6-EX-77A

M85*1.5

G3S

38-72

41-77

18

114

JX-6-EX-77B

M90*1.5

G3

38-72

41-77

18

126

JX-6-EX-83

M100*1.5

G4S

48-83

55-90

18

126

JX-6-EX-94

M110*1.5

G4

 48-94

61-104

18

128
