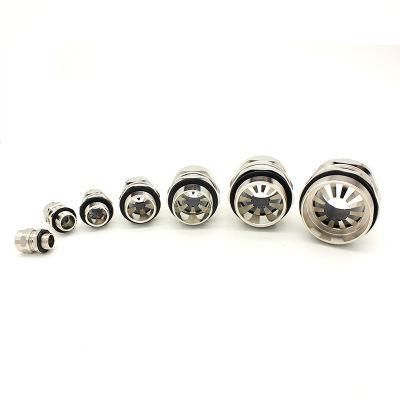

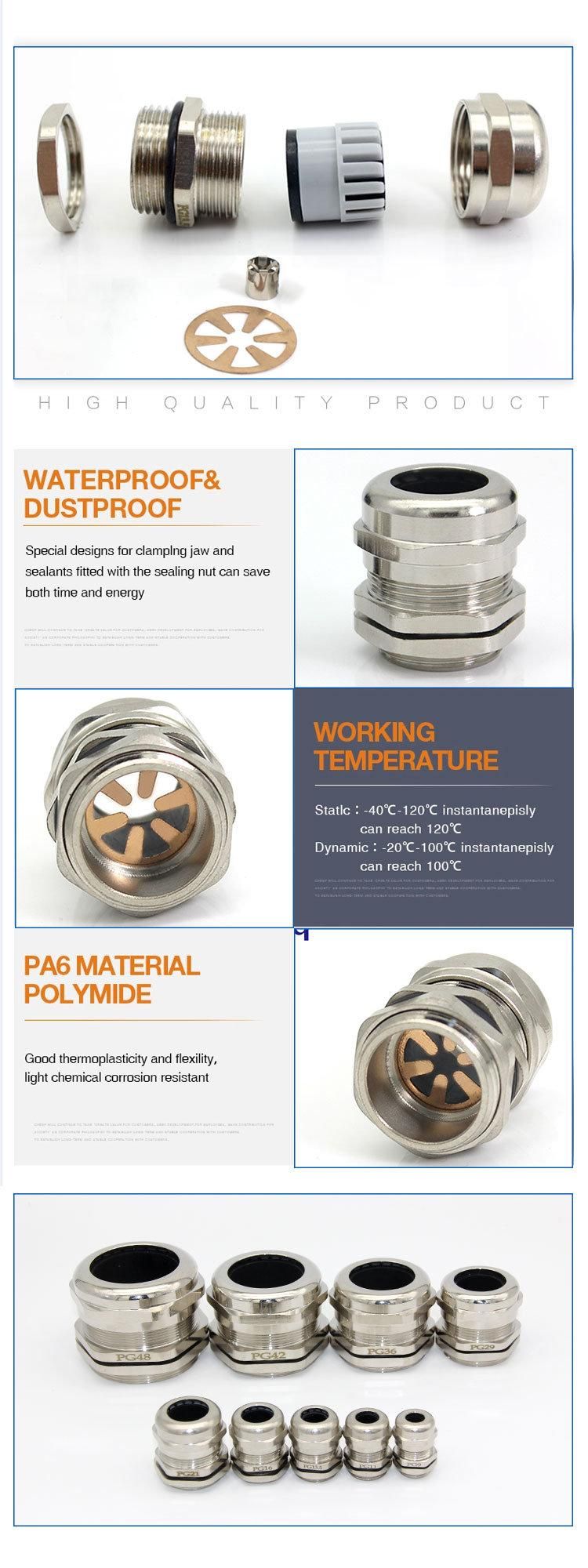

IP68 EMC Waterproof Brass Cable Gland-G/NPT Type

Yueqing Jixiang Connector Co., Ltd.
  • Certification：RoHS, ISO, CE, TUV
  • Surface Treatment：Brass with Nickle Plated
  • Color：Metallic
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：G1,2-G3,NPT1,4-NPT3
  • Claw：PA
  • Approvals：IP68, ISO9000, TUV
  • Sealing and Sealing Ring：NBR
  • Advantages：Free Sample
  • Brand Name：Jixiang
  • Protection Level：IP68
  • Size：M12-M100,Pg7-Pg100
  • Transport Package：Standard Export Package
  • Specification：36*26*19
  • Trademark：Jixiang
  • Origin：Zhejiang
  • HS Code：8547901000
  • Production Capacity：1000000piece,Year

Description

EMC Brass Cable Gland--G thread type,NPT thread typeCODEThread AGCable range(mm)Thread O.D.(mm)Thread no. per inchThread length GL(mm)Joint length H(mm)Spanner size (mm)JX-D.G1/4-EMCG1/46.5-313.11971914JX-D.G3/8-EMCG3/88-416.61981918JX-D.G1/2-EMCG1/212-620.91482222JX-D.G3/4-EMCG3/418-1326.41492530JX-D.G1- EMCG125-1833.211112940JX-D.G1- 1/4-EMCG1-1/433-2541.911133550JX-D.G1-1/2-EMCG1-1/238-3247.911143757JX-D.G2-EMCG244-3759.611143864JX-D.G2- 1/2-EMCG2-1/252-4275.111153877JX-D.G3-EMCG370-6587.811154894JX-D.NPT 1/4- EMCNPT1/46.5-313.61871914JX-D.NPT 3/8- EMCNPT3/88-4171881918JX-D.NPT 1/2- EMCNPT1/212-621.21482222JX-D.NPT 3/4- EMCNPT3/418-1326.51492530JX-D.NPT 1- EMCNPT125-1833.211.5112940JX-D.NPT 1-1/4- EMCNPT1-1/433-2541.911.5133550JX-D.NPT 1-1/2- EMCNPT1-1/238-324811.5143757JX-D.NPT 2- EMCNPT244-376011.5143864JX-D.NPT 2-1/2- EMCNPT2-1/252-4272.68153878JX-D.NPT 3- EMCNPT370-6588.68154598IP68 EMC Waterproof Brass Cable Gland-G/NPT TypeIP68 EMC Waterproof Brass Cable Gland-G/NPT Type
