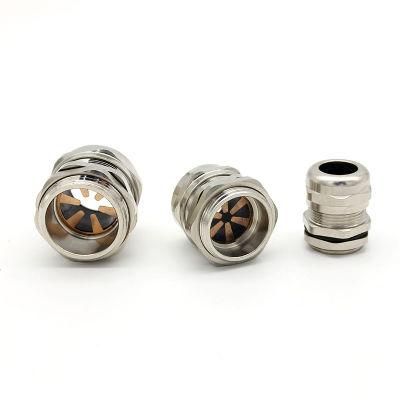

CE RoHS Certificate Metric EMC Metal Thread Type Waterproof Cable Gland with IP68

Yueqing Jixiang Connector Co., Ltd.
  • Certification：RoHS, ISO, CE, TUV
  • Surface Treatment：Brass with Nickle Plated
  • Color：Metallic
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M12-M100
  • Claw：PA
  • Approvals：IP68, ISO9000, TUV
  • Sealing and Sealing Ring：NBR
  • Advantages：Free Sample
  • Brand Name：Jixiang
  • Protection Level：IP68
  • Size：M12-M100,Pg7-Pg100
  • Transport Package：Standard Export Package
  • Specification：36*26*19
  • Trademark：Jixiang
  • Origin：Zhejiang
  • HS Code：8547901000
  • Production Capacity：1000000piece,Year

Description

EMC Cable Gland ---D series, Metric threadProduct CodeThread  AGCable range(mm)Thread diameter(mm)Board caliber(mm)Thread length GL(mm)Joint length(mm)Wrench diameter (mm)JX-D.M12-EMCM12*1.56.5-31212-12.271914JX-D.M14-EMCM14*1.58-41414-14.271917JX-D.M16-EMCM16*1.58-41616-16.282018JX-D.M18-EMCM18*1.510-51818-18.282120JX-D.M20-EMCM20*1.512-62020-20.282222JX-D.M22-EMCM22*1.514-102222-22.282324JX-D.M24-EMCM24*1.514-102424-24.292524/27JX-D.M25A-EMCM25*1.514-102525-25.292524/27JX-D.M27A-EMCM27*1.518-132727-27.292730JX-D.M28A-EMCM28*1.518-132828-28.292730........................JX-D.M72-EMCM72*252-427272-72.2154265/68JX-D.M75-EMCM75*252-427575-75.2154278JX-D.M80-EMCM80*262-508080-80.2154586/88JX-D.M88-EMCM88*270-608888-88.2154598JX-D.M100-EMCM100*280-70100100-100.21545110
