• Model NO.：AQX
• Application：100m Span
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：76169990
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. AQX Application 100m Span Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 76169990 Production Capacity 10000PCS/Month

Product Description

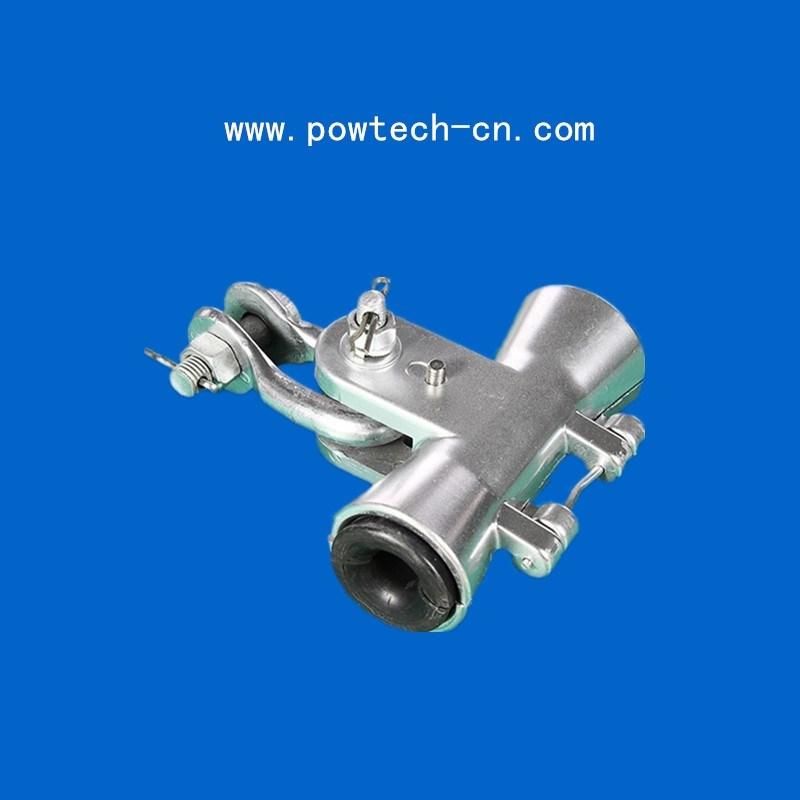

ADSS Fitting Aluminium Suspension Clamp

Configuration:
1. Anchor shackle: forged steel
2. Housing: aluminum alloy
3. Rubber insert: synthetic rubber
4. Bolt, nut, cotter pin
 Features: Simple structures, easy installation, and lower cost.
 Applications: Poles/towers with span of less than 100m, and line angle of less than 15°
 Technical Data:RTS: greater than 20kN
Recommended span length: 100m


Product Model	Cable Diameter (mm)	Armor Rods (mm)	Anchor Shackle
AQX 100-12	9.0-12	0	U-5
AQX 100-14	12-14	0	U-5
AQX 100-16	14-16	0	U-5
AQX 100-18	16-18	0	U-5

The suspension sets also can be used for 200m span when add reinforcing rods.

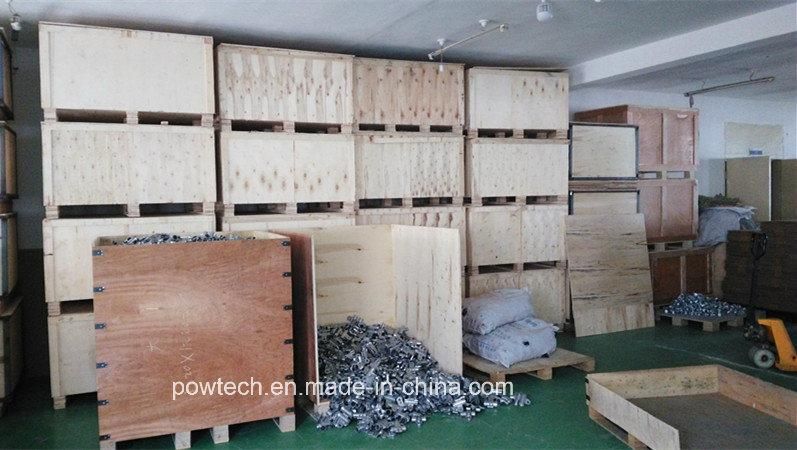

 Package&Shipment:

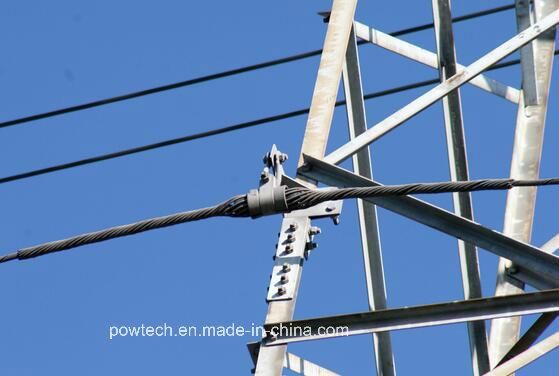

Applications:

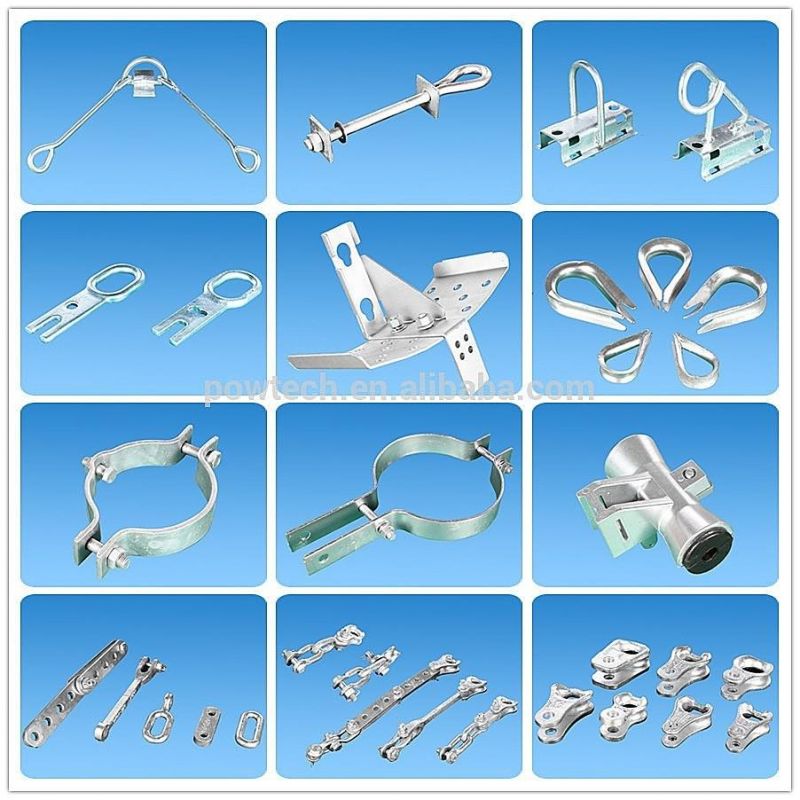

Related Product:
