• Model NO.：TK-5
• Housing Material：Aluminum
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：76169990
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. TK-5 Housing Material Aluminum Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 76169990 Production Capacity 10000PCS/Month

Product Description

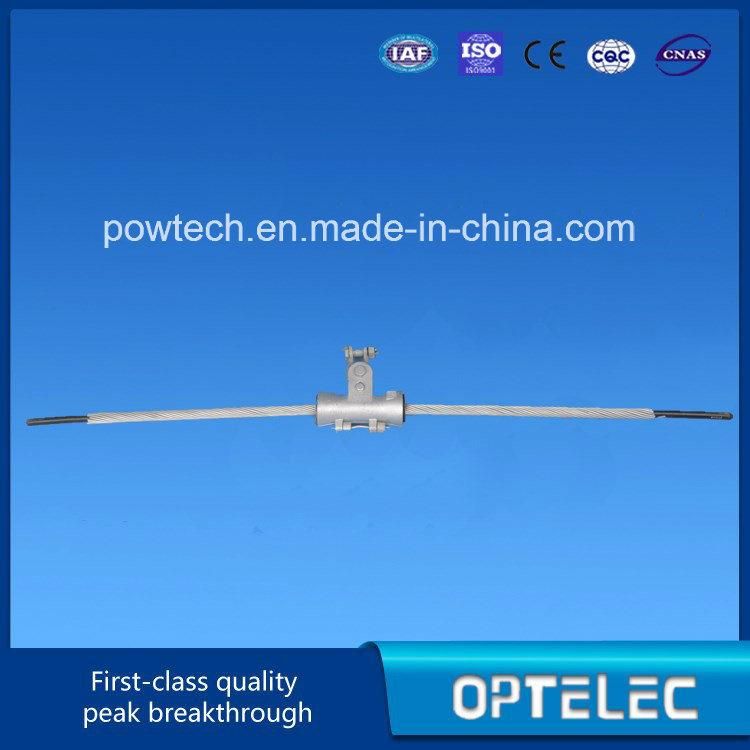

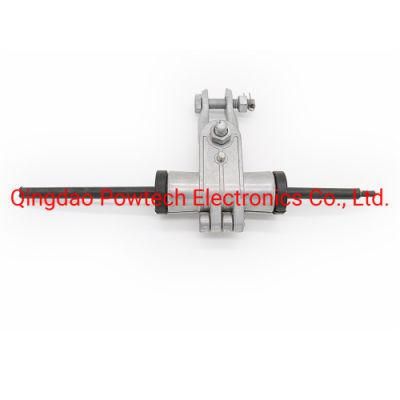

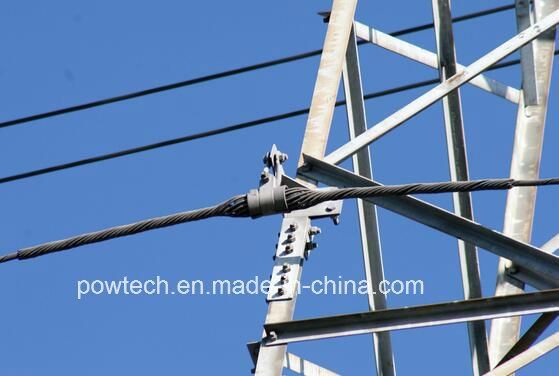

TK Series Aluminum alloy suspension clamps for ADSS cable /ADSS/OPGW cable accessories




Product Name: Newly suspension sets
Model: TK-3,TK-5,TK-7E,TK-7B

TK series newly suspension sets are specially designed for customer to reduce static stress at the support point of ADSS/OPGW cables, as well as ensure that the cable is cushioned against the dynamic stress of aeolian vibration.  The newly suspension set features the following: band mount design, hinged keeper, single-bolt clamping, and stackability for multi-cable installations.

Span length:  100m,200m,300m,400m,500m,600m,700m,800m,1000m

Structure and Raw Material:

Housing Clamp------It is made of cast Aluminum alloy, which is stable, better anti-corrosive in aero and mechanical performance.
Rubber Insert------It consists of high-class rubber, compounded for resistance to ozone, weathering extreme high and low temperature variations and compression set.
Bolt, Nut, Flat washer, Spring Washer, Split Pin, Anchor Shackle ------ Stainless steel

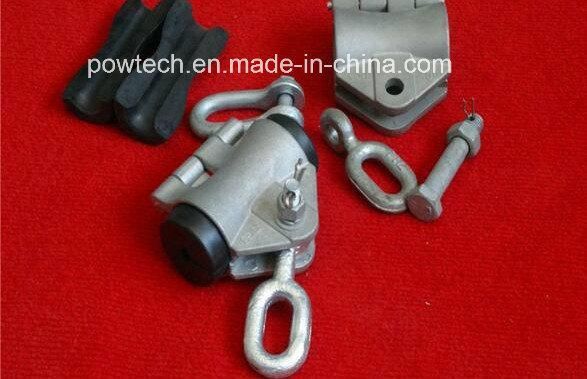

Configuration:
S.N.	Part name	Material
1	Anchor shackle	forged steel
2	Housing	aluminum alloy
3	Rubber insert	synthetic rubber
4	Reinforcing rod	aluminum clad steel

Application Guide:

1.It is designed to connect straight pole and ADSS/OPGW cables, or elevation angel less than 25 degree. The special specification: one unit per pole.
2.Select the specification model corresponding to the appropriate cable diameter, Load-weight or span length.
