Tension Sets (CE, SGS, ISO certified) / ADSS Fittings
Qingdao Powtech Electronics Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Color：White
- Fire Rating：High
- Size：Customized
- Material：Aluminium Clad Steel
- Type：Marker Cable Tie
Base Info
- Model NO.：NL
- Transport Package：Wooden Cartons
- Specification：RoHS, CE, SGS, ISO
- Trademark：OPTELEC
- Origin：China
- HS Code：76109090
- Production Capacity：1000PCS,Day
Description
Basic Info.
Model NO. NL Transport Package Wooden Cartons Specification RoHS, CE, SGS, ISO Trademark OPTELEC Origin China HS Code 76109090 Production Capacity 1000PCS/DayProduct Description

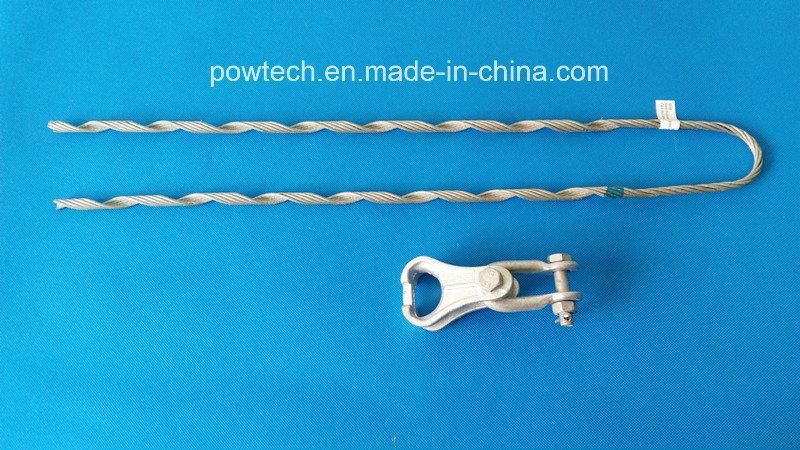

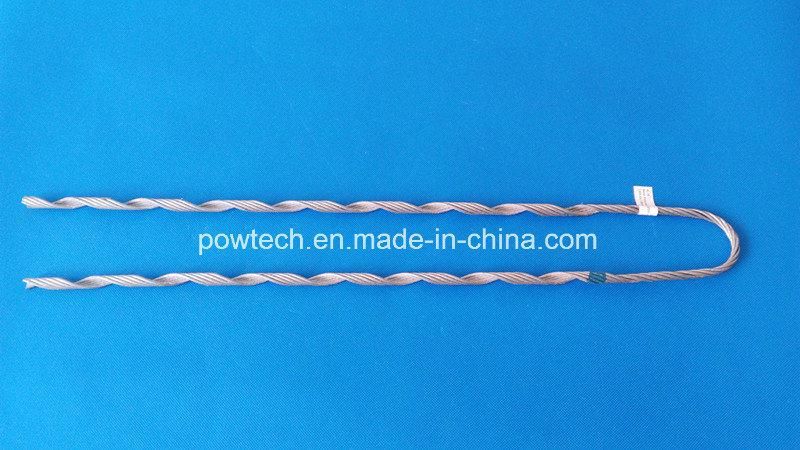

Preformed dead-ends for ADSS cable/ADSS fittings

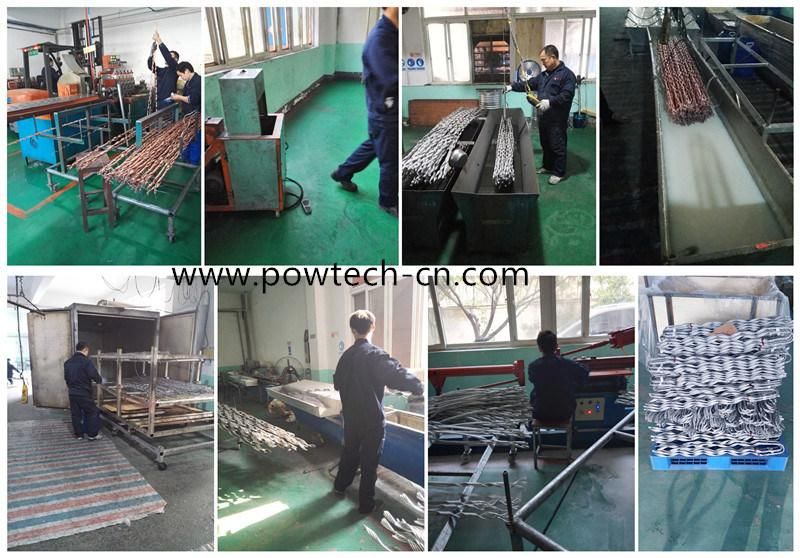

Production line:

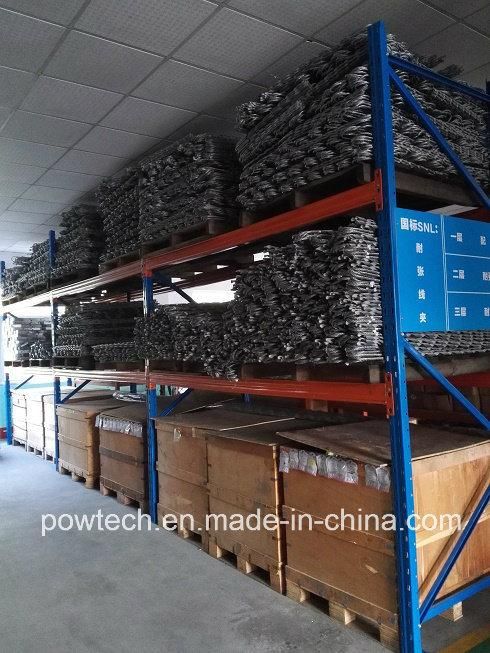

Warehouse:

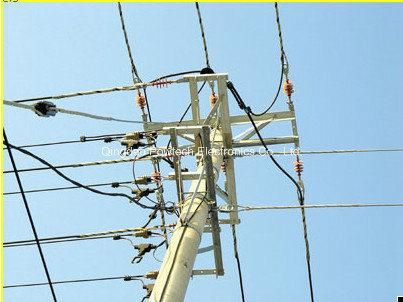

Installation Guide:
Product features:
1.Materials:aluminium clad steel
2.Bigger strength of tension
3.ISO9001 certificated
4.Top quality ,best price
5.Professional technical service
Usage:
The preformed dead-ends component are used to protect conductors so as to reduce vibration.
The distribution-grip dead-ends can improve self-damping and reduces abrasion. The galvanized steel materials make it have spendid mechanical performance and corrosion resistance.
The distribution-grip dead-end is easy to install and one person can finish installation without any tools.
Technical data sheet:
| Model | Guy Wire (mm) | Length (mm) | Guy Wire (mm2) | Weight (kg) | Color code |
| NL-25/G | 6.6 | 635 | 25 | 0.2 | Yellow |
| NL-35/G | 7.65~7.95 | 711 | 35 | 0.3 | Black |
| NL-50/G | 8.95~9.30 | 901 | 50 | 0.5 | Orange |
| NL-70/G | 10.82~11.10 | 1016 | 70 | 0.8 | Green |
| NL-95/G | 12.5 | 1333 | 95 | 1.7 | Orange |
| NL-100/G | 13.0 | 1333 | 100 | 1.7 | Yellow |
| NL-120/G | 14.0 | 1460 | 120 | 2.2 | Yellow |
