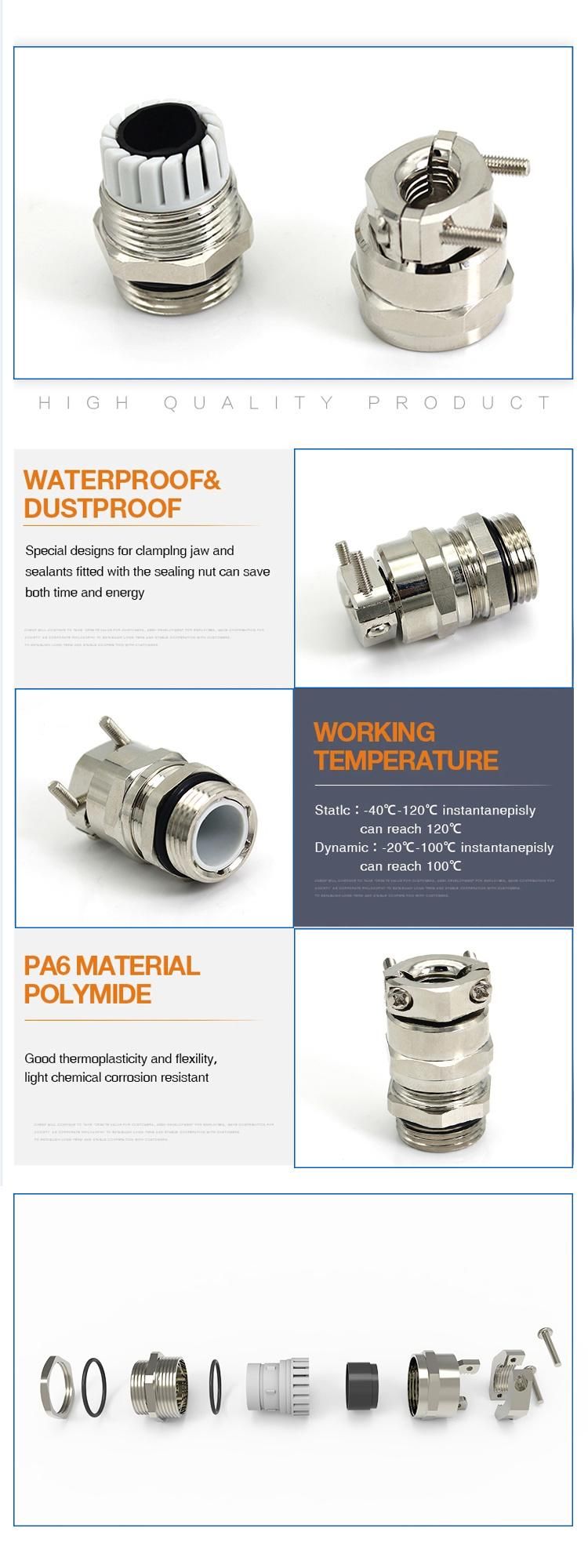

Double Locked Metal Cable Gland with Nickle Plated Factory Direct Brass M Thread Air Permeable Type Cable Glands
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE, TUV
- Surface Treatment：Brass with Nickle Plated
- Color：Metallic
- IP Rating：IP68
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：M12-M63
- Claw：PA
- Sealing：NBR
- Size：M12-63
- Work Temperature：-40~+100ºC,Short Time
- Transport Package：Standard Export Package
- Specification：36*26*19
- Trademark：Jixiang
- Origin：Zhejiang
- HS Code：8547901000
- Production Capacity：1000000piece,Year
Description
Breathable Cable Gland--- metric threadProduct Code Thread AG Cable range(mm) Thread Length (mm) Thread O.D (mm) Spanner Size (mm) JX-M12-BR M12 3-6.5 7 11.9 17 JX-M14-BR M14 4-8 7 13.9 19 JX-M16-BR M16 4-8 7 15.9 21 JX-M18-BR M18 5-10 8 17.9 22 JX-M20-BR M20 6-12 8 19.9 24 JX-M22-BR M22 10-14 8 21.9 27 JX-M25-BR M25 10-16 9 24.9 27 JX-M27-BR M27 13-18 9 26.9 30 JX-M28-BR M28 13-18 9 27.9 30 JX-M30-BR M30 13-18 10 29.9 36 JX-M32-BR M32 15-22 10 31.9 38 JX-M37-BR M36 18-25 12 36.9 42 JX-M40-BR M40 22-30 12 39.9 46
