Terminal Type a Strain Clamp
Qingdao Powtech Electronics Co., Ltd.- Product Name：Anchor Clamp
- Surface Finish：Hot-DIP Galvanized
- Type：Cable Clamp
- Material：Hot DIP Galvanized Steel
- Certification：RoHS, ISO, CCC, SGS
- Customized：Customized
Base Info
- Model NO.：FTM-A
- Condition：New
- Flame Retardant：High

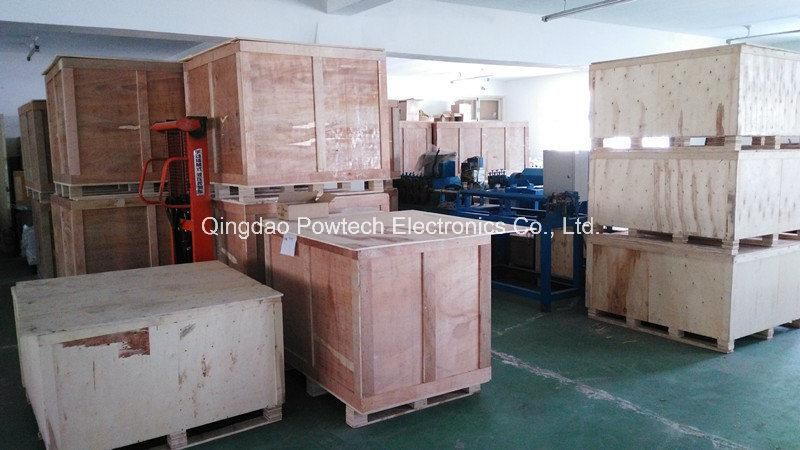

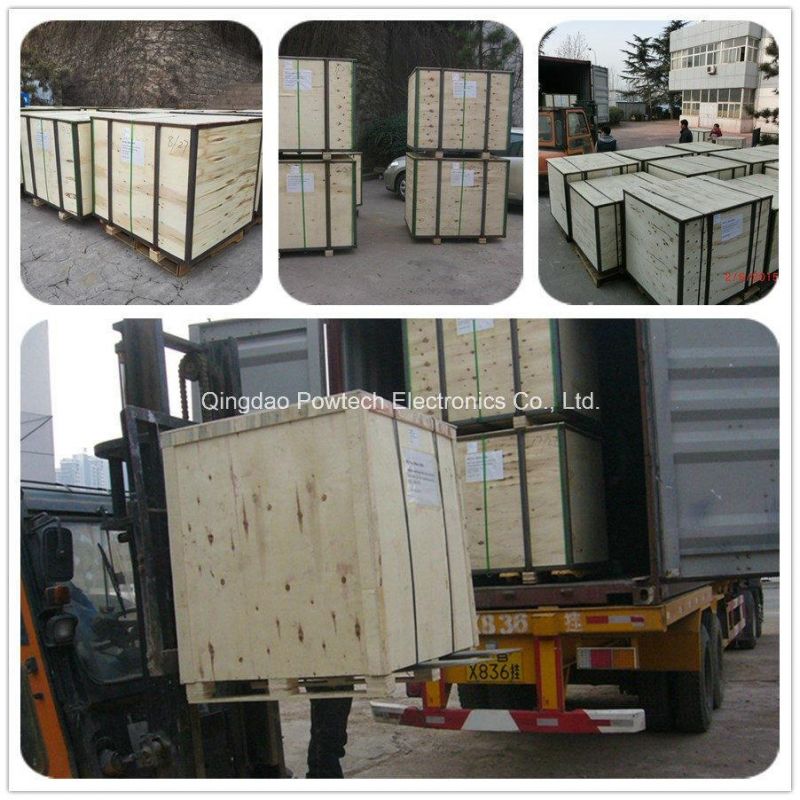

- Transport Package：Wooden Case
- Specification：CE, SGS, ISO
- Trademark：OPTELEC
- Origin：China
- HS Code：7316
- Production Capacity：30000 Set,Sets Per Month
Description
Basic Info.
Model NO. FTM-A Condition New Flame Retardant High Transport Package Wooden Case Specification CE, SGS, ISO Trademark OPTELEC Origin China HS Code 7316 Production Capacity 30000 Set/Sets Per MonthProduct Description

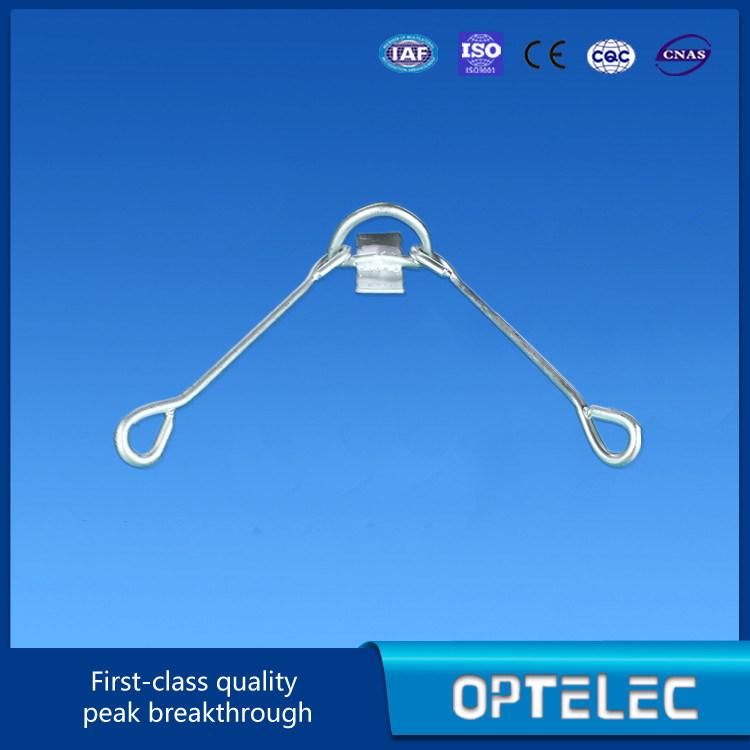

Terminal Type A Strain Clamp
Description:
Material: Hot-dip galvanized steel ASTM A-36
Lengthening in 50mm minimum: 21%
Base: 50mm * 106mm (tolerance +10%)
The hardware is hot galvanized according to standards ISO R 1460, ISO R 1461
Hardware designed to hold ADSS 200m span
Technical specs:
| Product Model | Weight (kgs) | Min. tensile strength (Mpa) | Min. yield strength (Mpa) |
| FTM-A | 1.43 | 400 | 250 |
Quality of ASTM A-36 Steel
Chemical Composition (%)
| C (≤) | Si (≤) | Mn (≤) | P (≤) | S (≤) | Cu (≤) | Fe (≥) |
| 0.26% | 0.4% | 0.80-1.20% | 0.04% | 0.05% | 0.20% | 97.85% |
Mechanical properties
| Tensile strength MPa | Elongation% | Yield strength MPa |
| 400~550 | ≥20% | ≥250 |
Hot Dip Galvanized Coatings:
| Article and its thickness | Mean coating thickness (um) | Mean coating mass g/m2 |
| Castings<=6mm | 65um | 460g/m2 |
| Castings>6mm | 80um | 575g/m2 |
