Black Pet Expandable Flame Retardant Halogen Free Wire Cable Cover Sleeve
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS
- Color：Black
- IP Rating：VW-1
- Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
- Material：PE
- Type：Spiral Wrapping
Base Info
- Model NO.：BS-PET
- Customized：Customized
- Condition：New
- Flame Retardant：Normal
- Classification：Black Pet Expandable Wire Cable Cover Sleeve
- Available Size：3mm~100mm Flat Width
- Standard Color：Black, White, Grey
- Cutting Tool：Hot Knife
- Melt Point：240ºC+-10ºC
- Certificate：UL, CSA, RoHS, Pfos, Reach, Halgen Free
- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month Wire Cable Cover Sleeve
Description
Basic Info.
Model NO. BS-PET Customized Customized Condition New Flame Retardant Normal Classification Black Pet Expandable Wire Cable Cover Sleeve Available Size 3mm~100mm Flat Width Standard Color Black, White, Grey Cutting Tool Hot Knife Melt Point 240ºC+-10ºC Certificate UL, CSA, RoHS, Pfos, Reach, Halgen Free Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark QX Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/Month Wire Cable Cover SleeveProduct Description
Product feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.

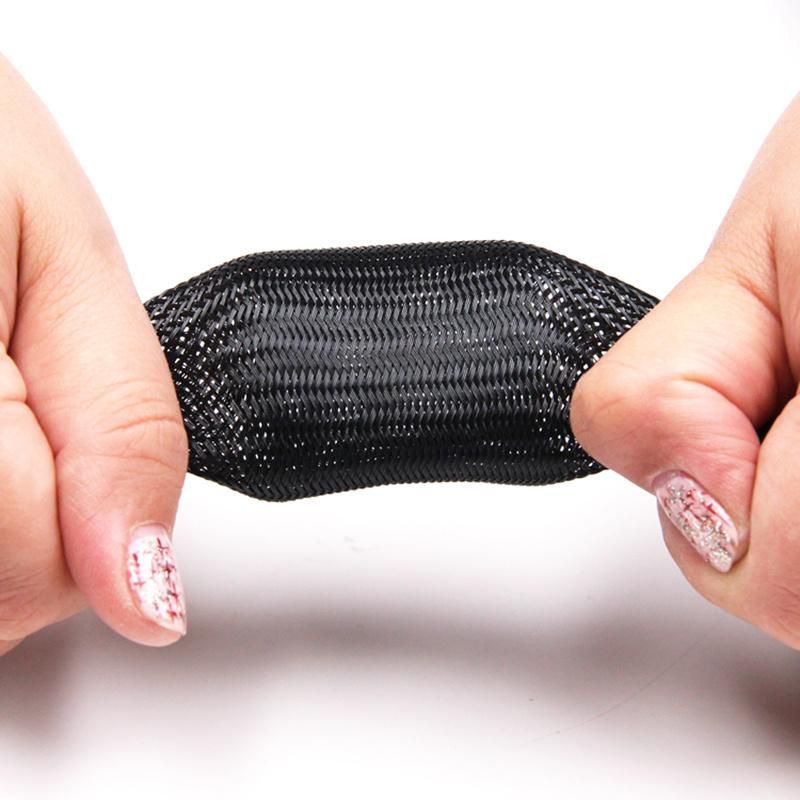

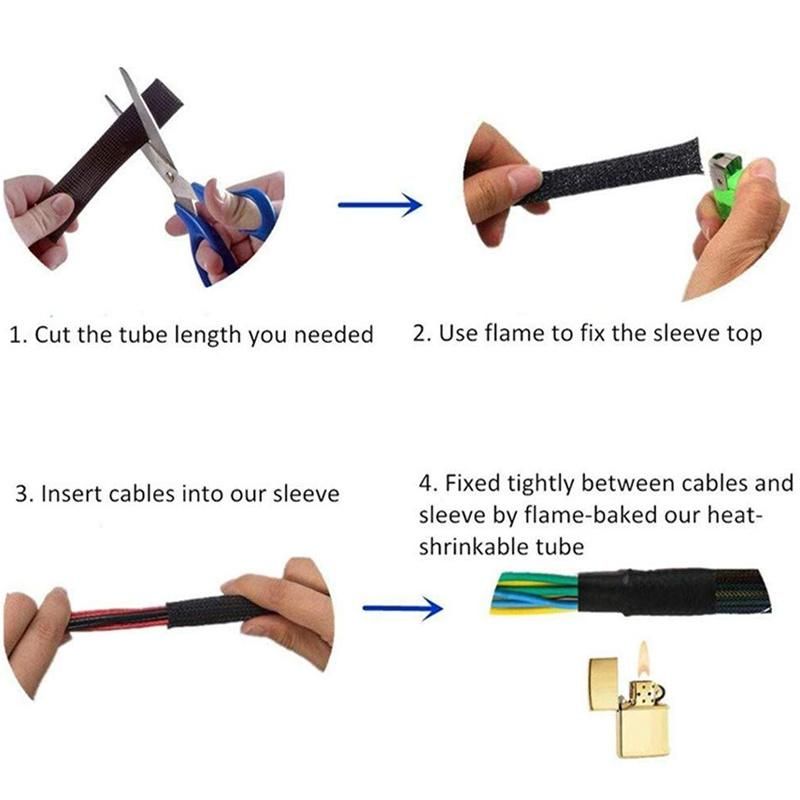

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Technical data:
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC +-5ºC
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife
Application:

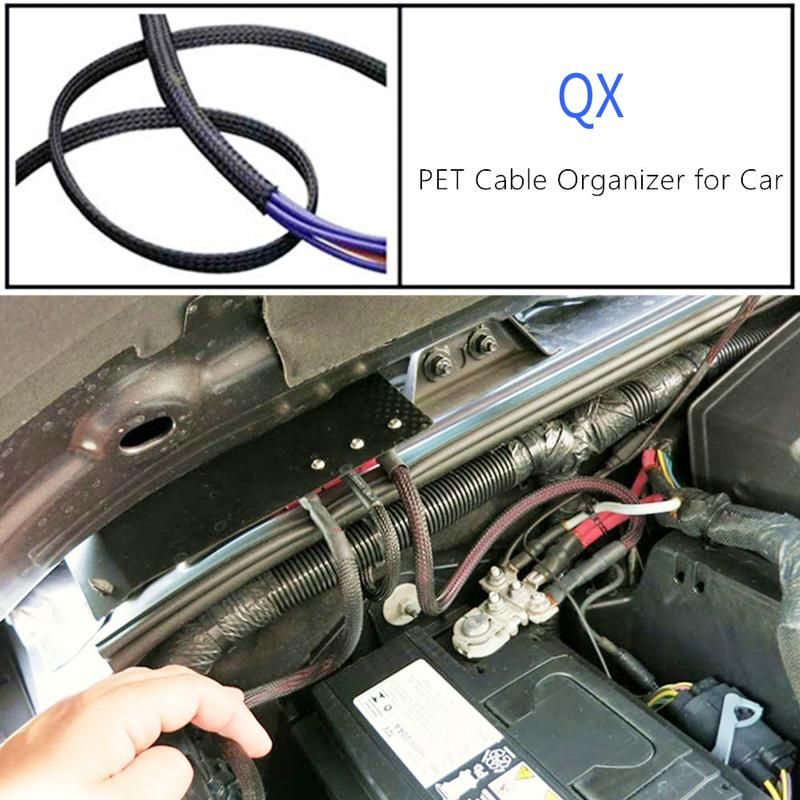

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required
an additional protection.
| Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| BS-PET003 | 3 | 1 | 6 | 1000 |
| BS-PET006 | 6 | 3 | 9 | 500 |
| BS-PET008 | 8 | 5 | 16 | 350 |
| BS-PET010 | 10 | 7 | 19 | 350 |
| BS-PET012 | 12 | 8 | 24 | 300 |
| BS-PET016 | 16 | 10 | 27 | 250 |
| BS-PET019 | 20 | 14 | 30 | 200 |
| BS-PET025 | 25 | 18 | 35 | 200 |
| BS-PET032 | 32 | 20 | 50 | 150 |
| BS-PET038 | 38 | 30 | 60 | 100 |
| BS-PET045 | 45 | 35 | 75 | 100 |
| BS-PET050 | 50 | 40 | 80 | 100 |
| BS-PET064 | 64 | 45 | 105 | 100 |
| BS-PET076 | 76 | 64 | 120 | 100 |

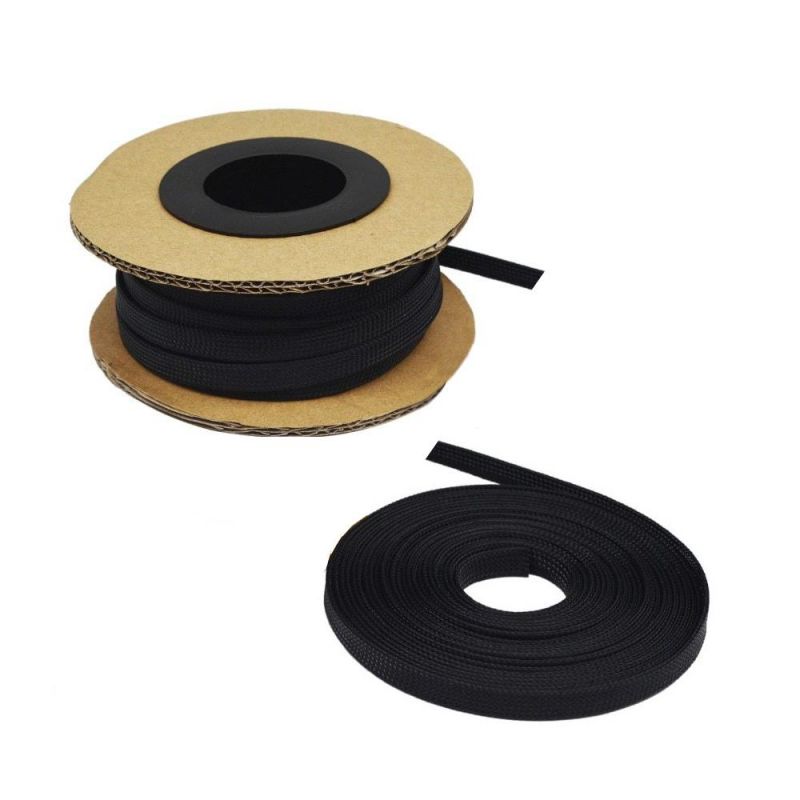

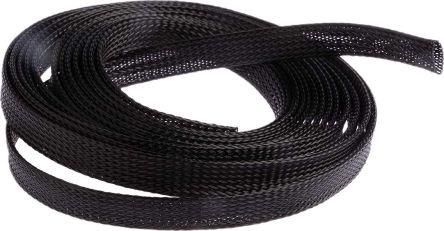

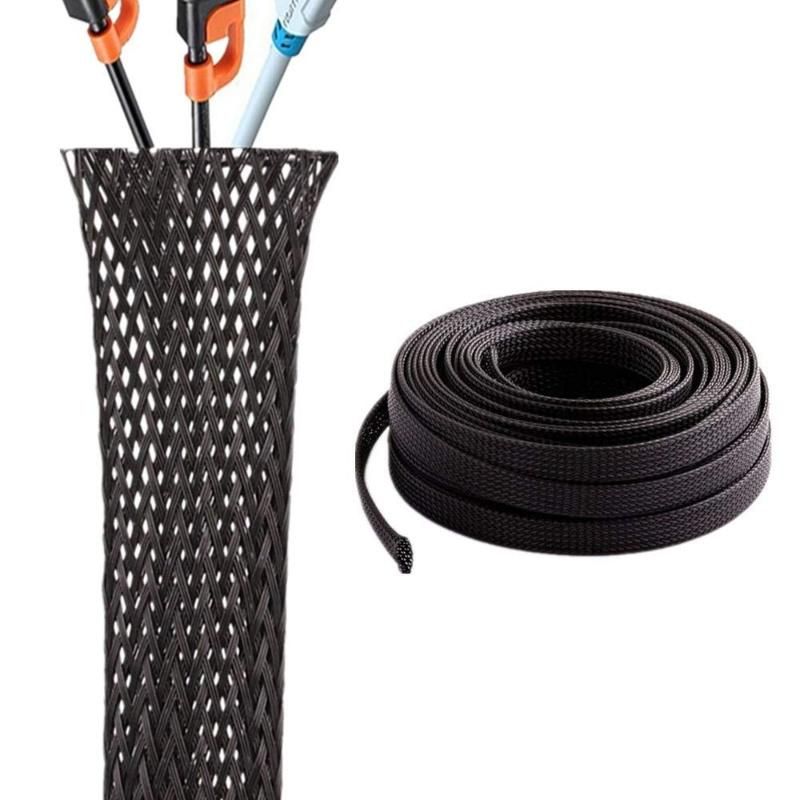

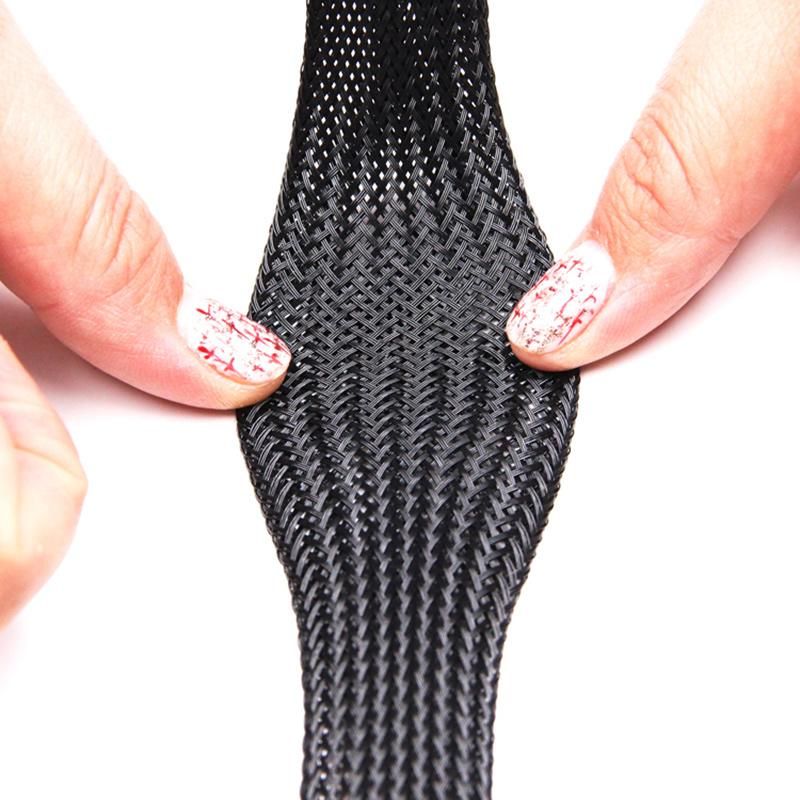

Detail Pictures:

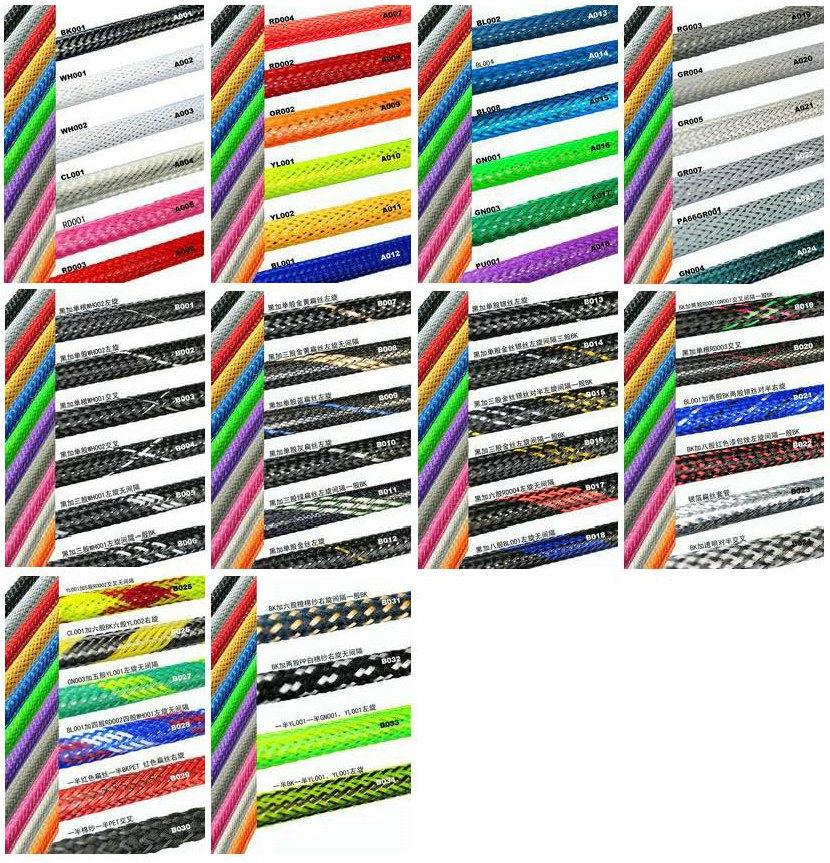

Color Guide:
