Color PET Braided Expandable Wire Cable Mesh Sleeving for Wire and Cable Management
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS
- Material：Plastic
- Type：Cable Sleeve
- Flame Retardant：Normal
- Customized：Customized
- Condition：New
Base Info
- Model NO.：BS-PET
- Available Size：3mm~100mm Flat Width
- Classification：Pet Braided Sleeving
- Standard Color：Black, Grey
- Transport Package：500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm to 100mm Flat Width
- Trademark：QX
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month
Description
Basic Info.
Model NO. BS-PET Available Size 3mm~100mm Flat Width Classification Pet Braided Sleeving Standard Color Black, Grey Transport Package 500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol. Specification 3mm to 100mm Flat Width Trademark QX Origin Fujian, China HS Code 4602900000 Production Capacity 3000000 M/MonthProduct Description
Product feacture:1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.

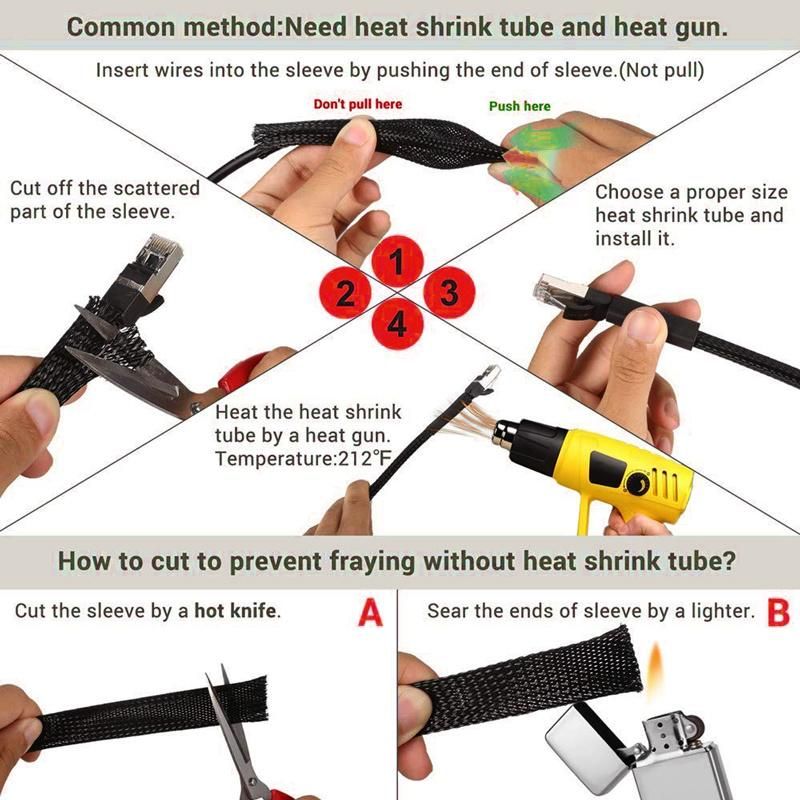

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

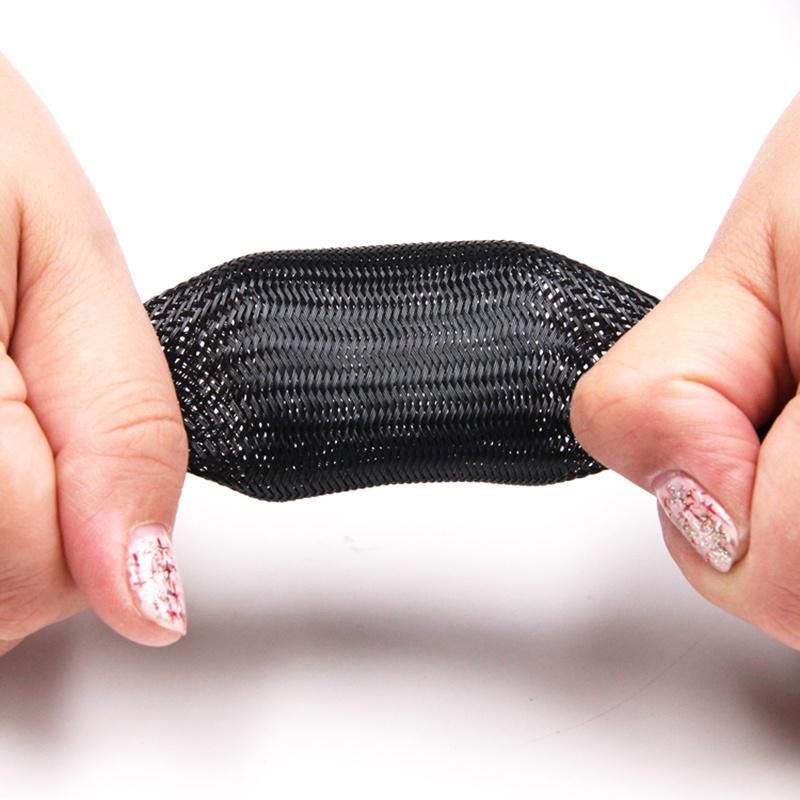

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Technical data:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free

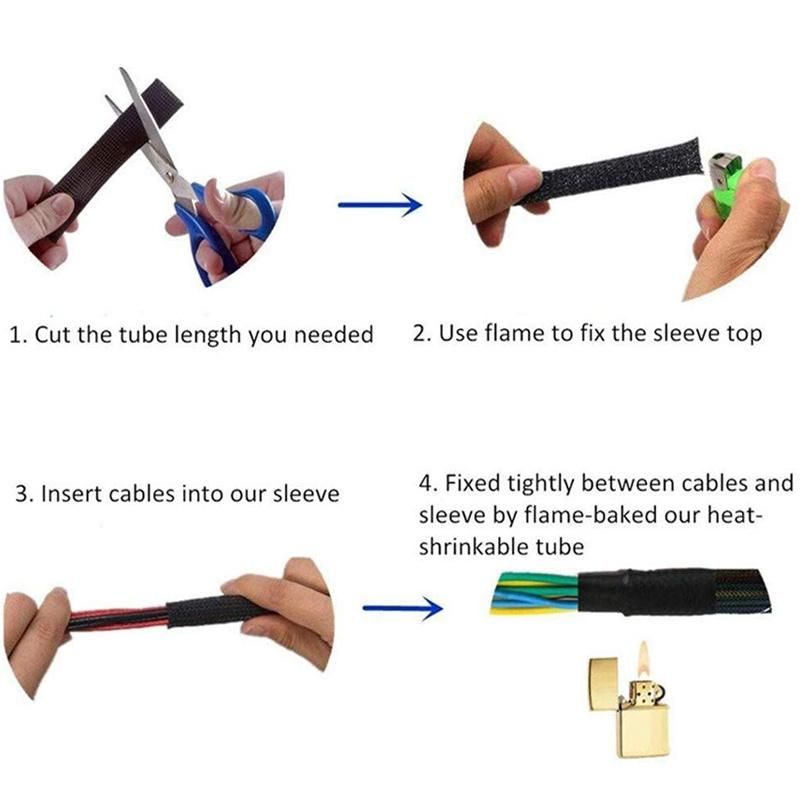

7. Cutting tool: Hot knife
Application:

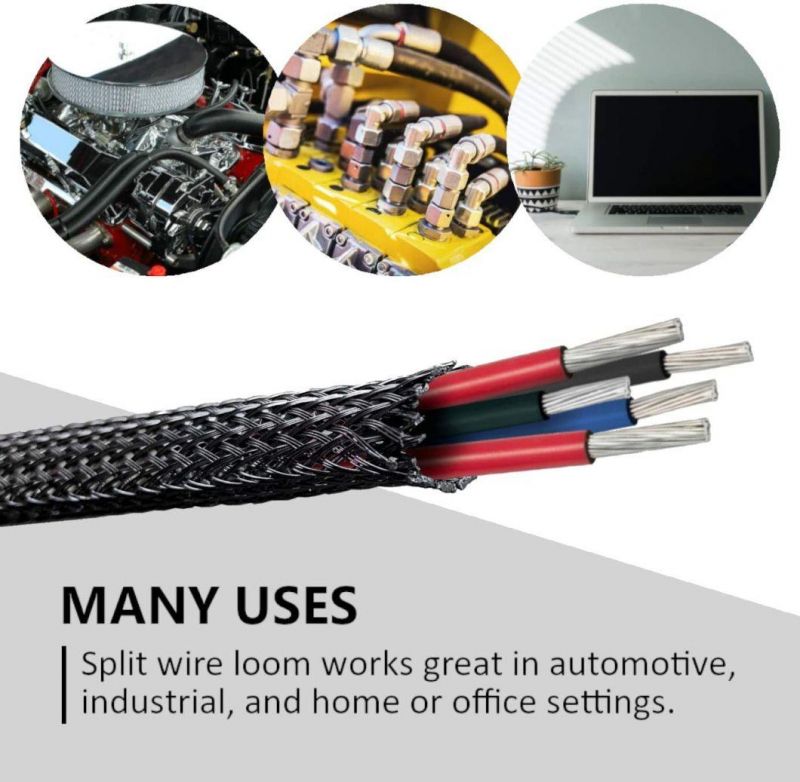

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.
| Part No | Size | Expanded Range(mm) | Packing (L) | |
| Flat width(mm) | Min(I) | Max.(O) | M/spool | |
| BS-PET003 | 3 | 1 | 6 | 1000 |
| BS-PET006 | 6 | 3 | 9 | 500 |
| BS-PET008 | 8 | 5 | 16 | 350 |
| BS-PET010 | 10 | 7 | 19 | 350 |
| BS-PET012 | 12 | 8 | 24 | 300 |
| BS-PET016 | 16 | 10 | 27 | 250 |
| BS-PET019 | 20 | 14 | 30 | 200 |
| BS-PET025 | 25 | 18 | 35 | 200 |
| BS-PET032 | 32 | 20 | 50 | 150 |
| BS-PET038 | 38 | 30 | 60 | 100 |
| BS-PET045 | 45 | 35 | 75 | 100 |
| BS-PET050 | 50 | 40 | 80 | 100 |
| BS-PET064 | 64 | 45 | 105 | 100 |
| BS-PET076 | 76 | 64 | 120 | 100 |

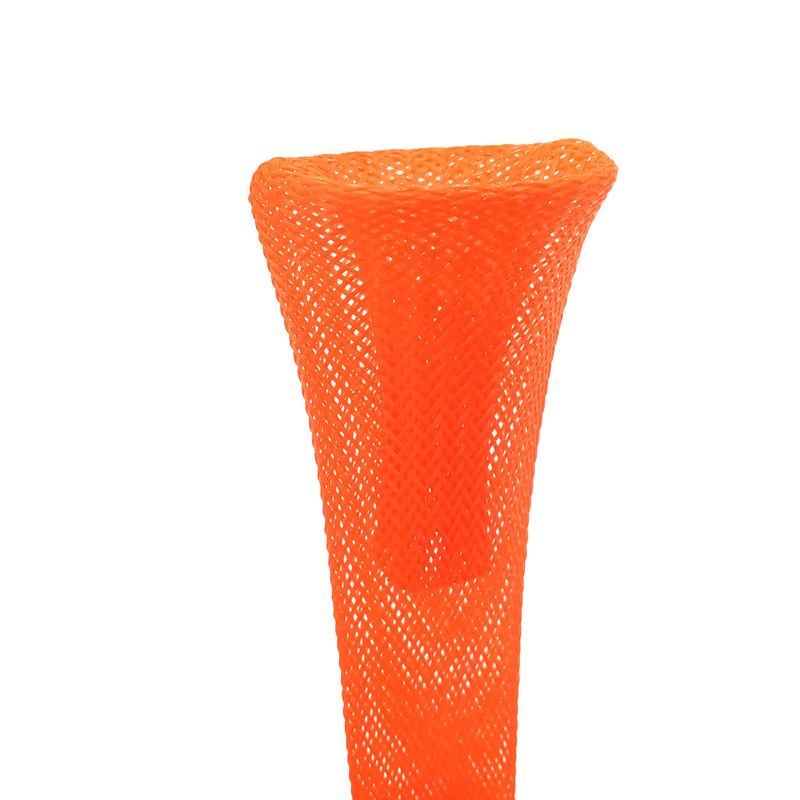

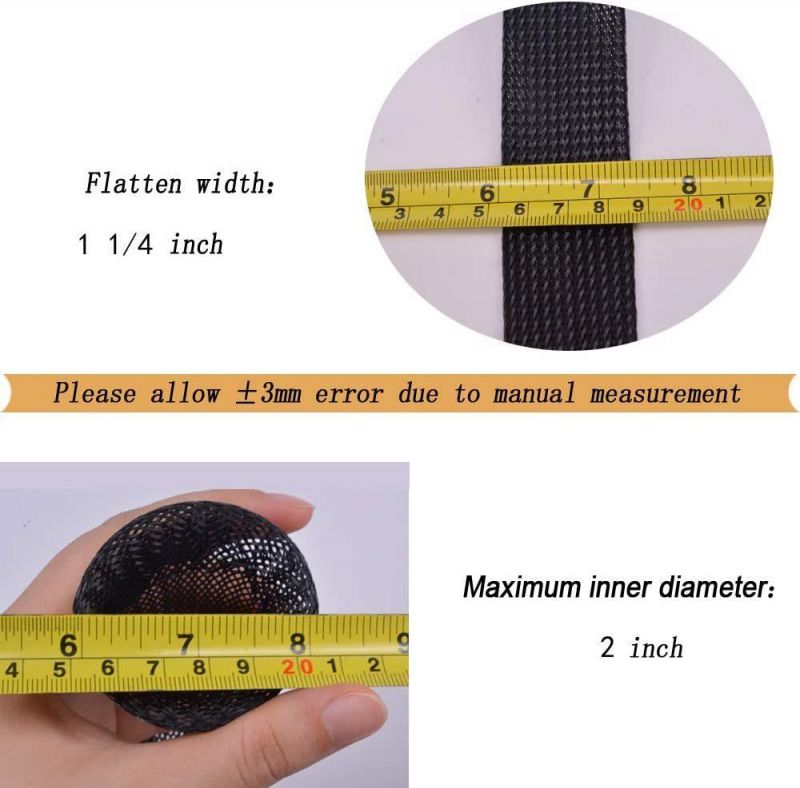

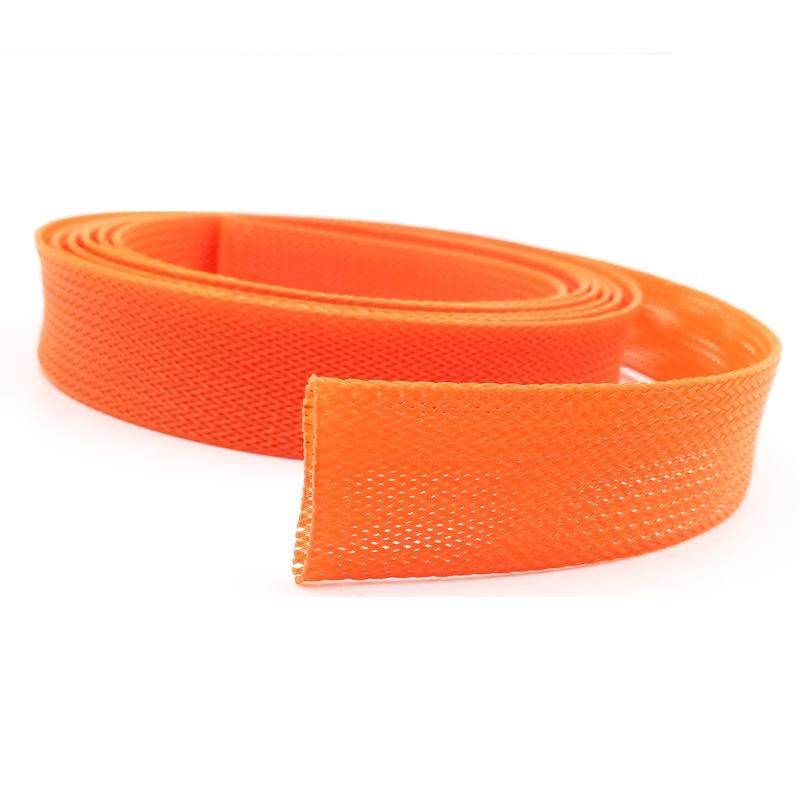

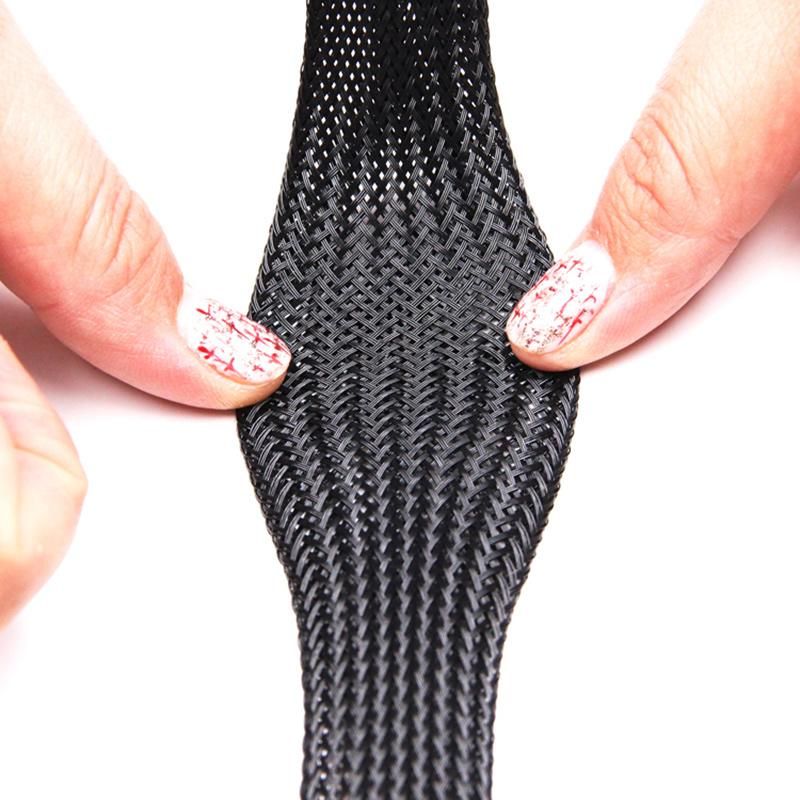

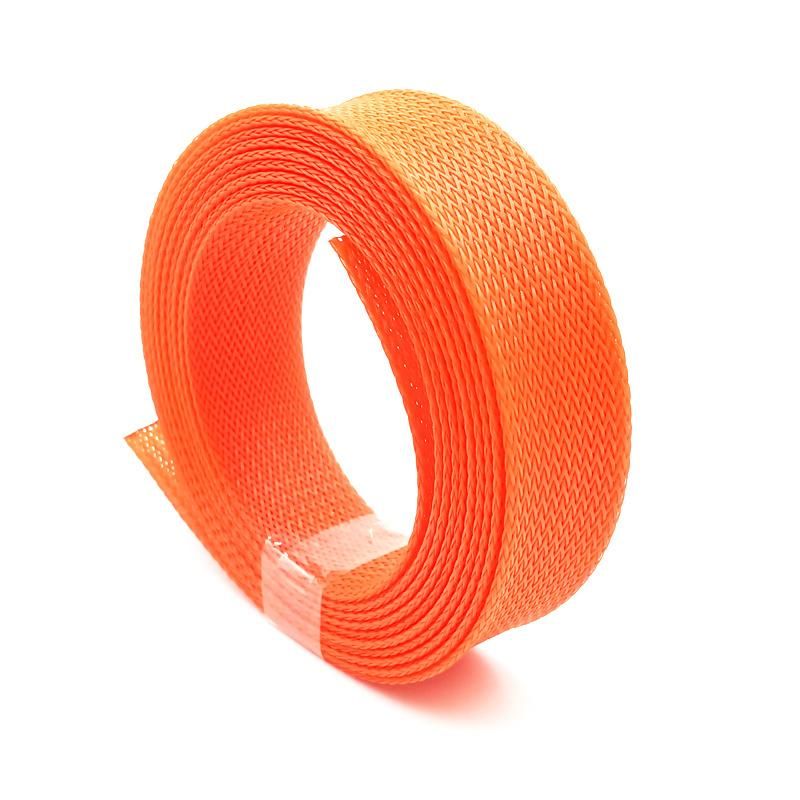

Detail Pictures:

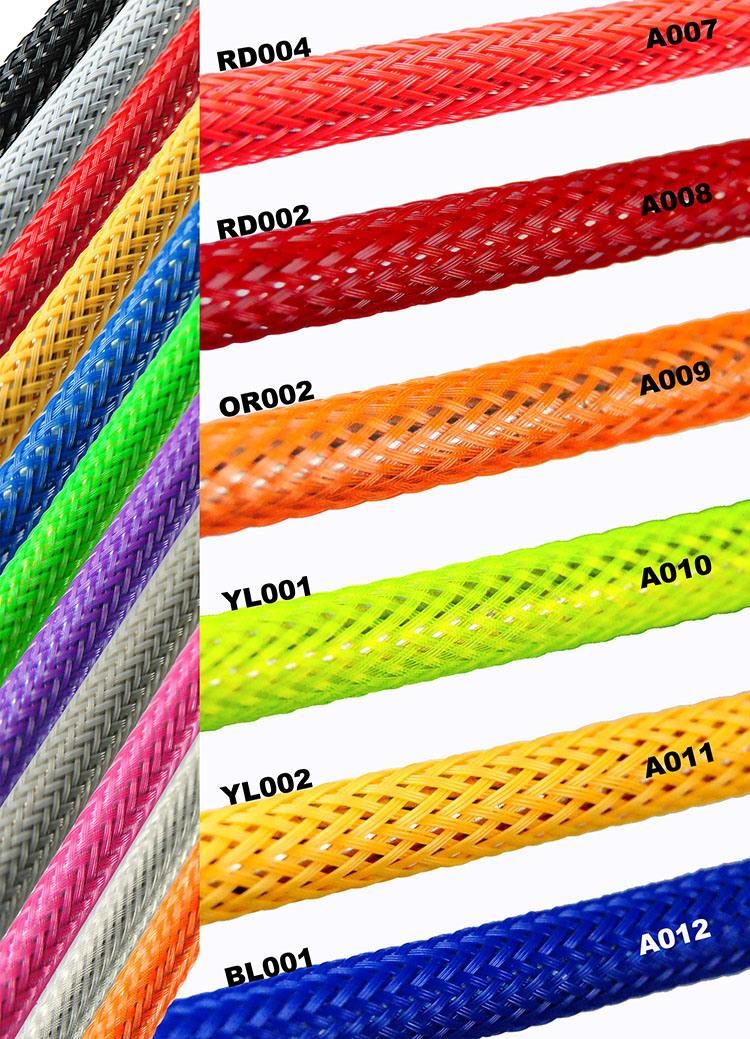

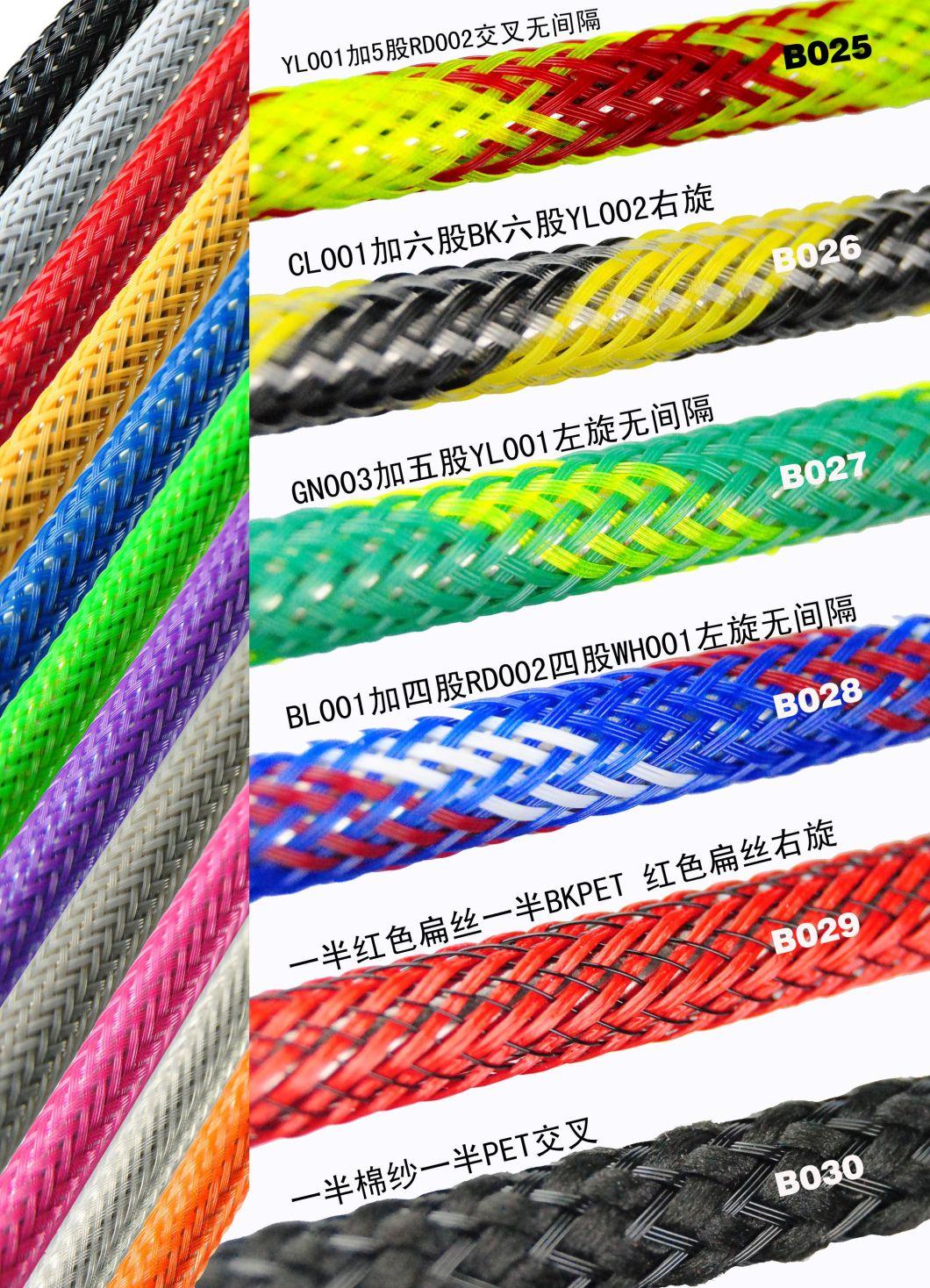

Color Guide:
