High Temperature Glass Fiber Insulation Material Cable Sleeve
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS, ISO, CE
- Color：White
- IP Rating：IP50
- Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
- Material：PA
- Type：Insulation Sleeve
Base Info
- Model NO.：BS-FS-SC
- Application：High Temperature Glass Fiber Insulation Material C
- Chemistry：Organic Insulation
- Standard Color：Black and Color
- Function：Economical and Easy to Install
- Feature：Resistant to Cuts or Abrasions
- Use：Commercial Electronics, Household Appliances Insul
- Transport Package：100m,Roll
- Specification：ISO9001: 2008, UL, CSA, ROHS
- Trademark：QX
- Origin：Made in China
- HS Code：7019909000
- Production Capacity：100, 000 M,Month
Description
Basic Info.
Model NO. BS-FS-SC Application High Temperature Glass Fiber Insulation Material C Chemistry Organic Insulation Standard Color Black and Color Function Economical and Easy to Install Feature Resistant to Cuts or Abrasions Use Commercial Electronics, Household Appliances Insul Transport Package 100m/Roll Specification ISO9001: 2008, UL, CSA, ROHS Trademark QX Origin Made in China HS Code 7019909000 Production Capacity 100, 000 M/MonthProduct Description

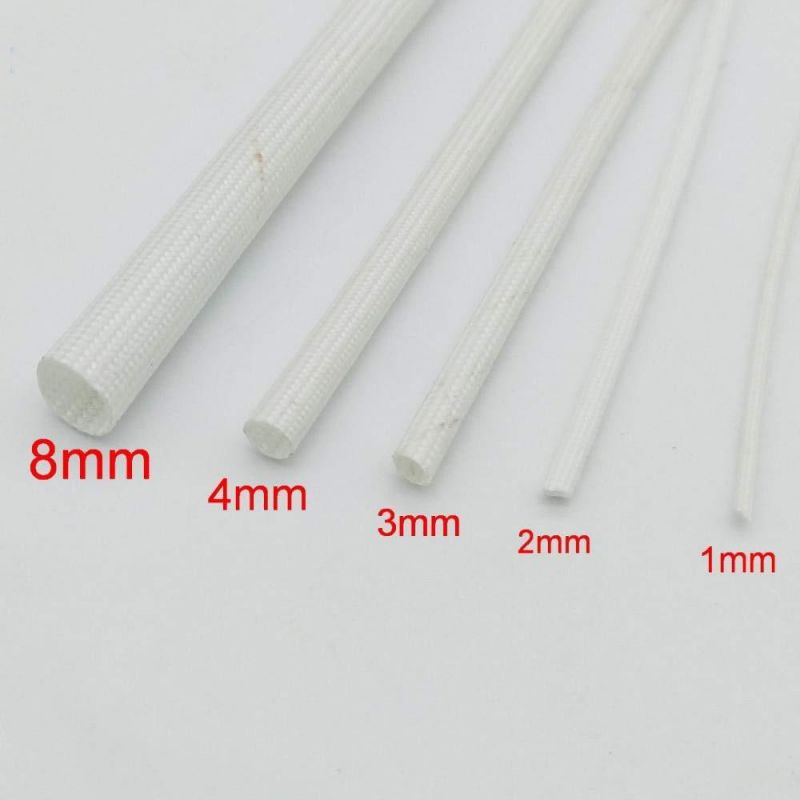

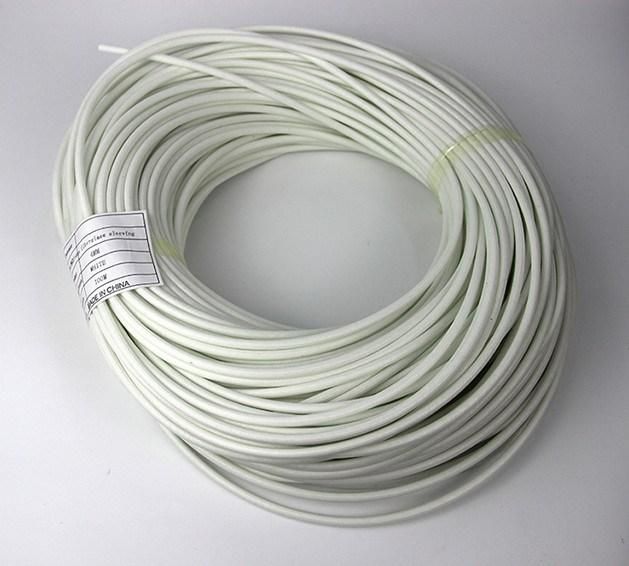

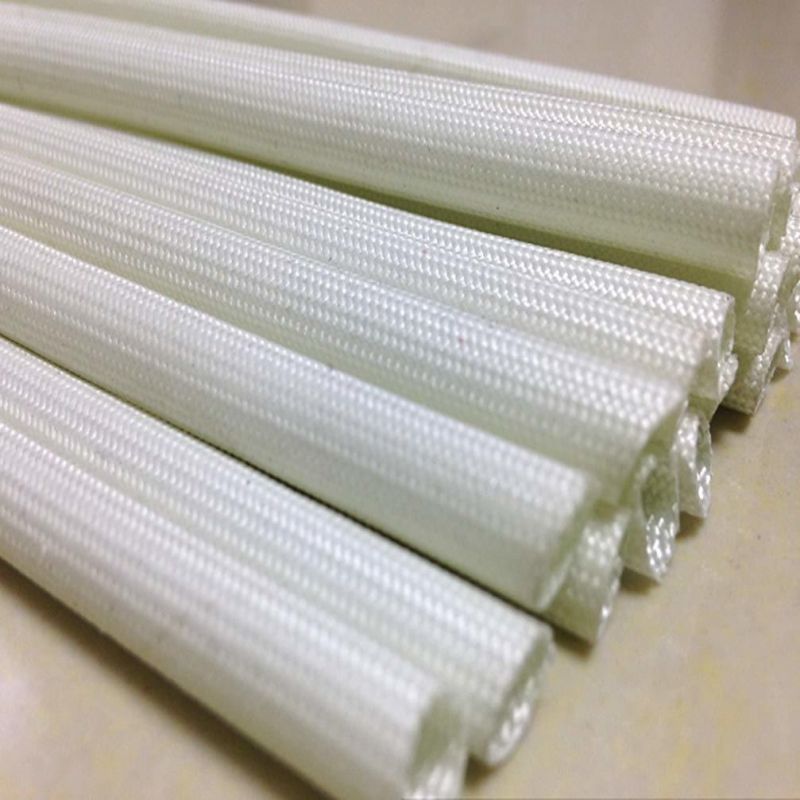

High Temperature Glass Fiber Insulation Material Cable Sleeve
BS-FS-SC the silicone fiberglass sleeving is made by compounding a high-grade fiberglass braided
sleeving and a silicone rubber coat. It is an extremely high temperature resistant sleeve commonly used
as thermal protection for wires, cables and hoses.and it is flexible in low temperatures for easily
installation. Silicone rubber coat maintains acids, liquids, and most organic solvents out to prevent
mechanical failure. The high dielectric strength on this silicone braided fiberglass sleeving makes it ideal
for power supplies, wire harnesses, motor coil, heater leads, and appliance assemblies.
Technical data:
Sleeving material: Fiberglass fiber
Coating material: Silicone resin
Operating range: -60C- +200C
Breakdown voltage: 4.0kv - 7.0kv
Flammability: VW-1
Standard colour: White
Certificate: UL, CSA, RoHS.
Cutting tool: Cutting machine, scissors.
| Part No | ID | Wall thickness(T) | Packing(L) |
| BS-FS0.8 | 0.8 | 0.3 | 100M/ROLL |
| BS-FS1.0 | 1.0 | 0.3 | 100M/ROLL |
| BS-FS1.5 | 1.5 | 0.3 | 100M/ROLL |
| BS-FS2.0 | 2.0 | 0.35 | 100M/ROLL |
| BS-FS2.5 | 2.5 | 0.35 | 100M/ROLL |
| BS-FS3.0 | 3.0 | 0.35 | 100M/ROLL |
| BS-FS3.5 | 3.5 | 0.35 | 100M/ROLL |
| BS-FS4.0 | 4.0 | 0.4 | 100M/ROLL |
| BS-FS5.0 | 5 | 0.4 | 100M/ROLL |
Application:
These sleeves are widely used for supplementary insulation on
Transformer, motor, generator and resistor leads etc.
