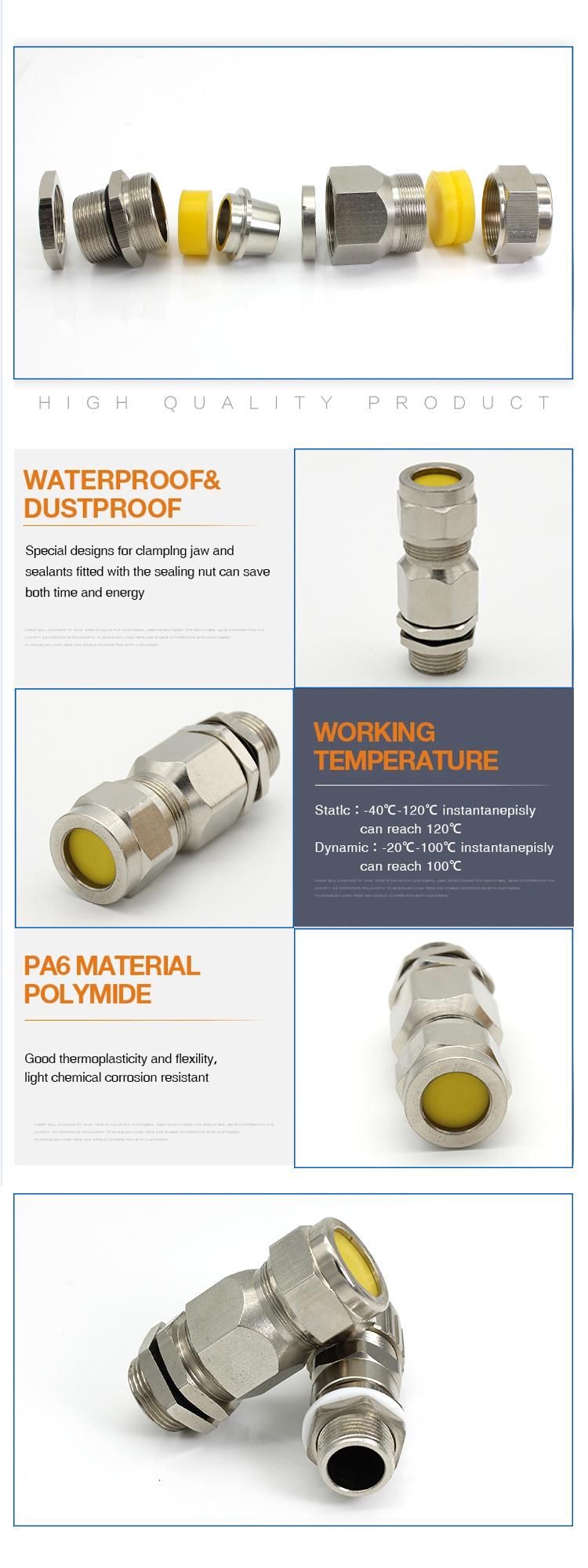

Single Sealed Ex Stainless Steel Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP66
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP66
- Material：Brass
- Transport Package：Polybag+Label Export Carton Box
Base Info
- Model NO.：Metric Thread
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547909000
- Production Capacity：50000PCS,Week
Description
Single Sealed Ex Stainless Steel JX8 - Metric, G Thread
Code
AG Thread
Cable Range (mm)
Armor
Braid
H (mm)
GL (mm)
Spanner Size (mm)
Std. Pkg (pcs)
Metric
G
Outer
Inner
Size
Size
JX-8-EXS-12
M16*1.5
3/8''
Φ6-12
Φ4-10
0.9/1.25
0/0.7
30
15
24
50
JX-8-EXS-16A
M20*1.5
1/2''
Φ10-16
Φ8-13
0.9/1.25
0/0.7
30
15
24
50
JX-8-EXS-16B
M22*1.5
1/2''
Φ10-16
Φ8-13
0.9/1.25
0/0.7
30
15
24
50
JX-8-EXS-16C
M24*1.5
1/2''
Φ14-16
Φ12-16
0.9/1.25
0/0.7
32
15
30
50
JX-8-EXS-18
M25*1.5
3/4'' 1''
Φ14-18
Φ12-16
1.25/1.6
0/0.7
35
15
40
50
JX-8-EXS-23
M30*1.5
1''11/4''
Φ17-23
Φ15-21
1.6/2.0
0.6/1.2
39
15
46
50
JX-8-EXS-27A
M32*1.5
1''11/4''
Φ22-27
Φ20-25
1.6/2.0
0.6/1.2
39
15
46
50
JX-8-EXS-27B
M36*2.0
1''11/4''
Φ22-27
Φ20-25
1.6/2.0
0.6/1.2
39
15
55
50
JX-8-EXS-33A
M40*1.5
11/2''
Φ26-33
Φ24-31
1.6/2.0
0.6/1.2
43
15
55
50
JX-8-EXS-33B
M48*2.0
11/2''
Φ26-33
Φ24-31
1.6/2.0
0.6/1.2
43
15
55
50
JX-8-EXS-41
M50*1.5
11/2'' 2''
Φ32-41
Φ27-35
1.6/2.0
0.6/1.2
48
15
65
50
JX-8-EXS-49
M56*2.0
2''
Φ40-49
Φ35-43
1.6/2.0
0.6/1.2
48
20
65
50
JX-8-EXS-57A
M63*1.5
21/2''
Φ48-57
Φ42-50
1.8/2.5
0.6/1.2
53
20
80
50
JX-8-EXS-57B
M64*2.0
21/2''
Φ48-57
Φ42-50
1.8/2.5
0.6/1.2
53
20
80
50
JX-8-EXS-68
M75*1.5
3''
Φ54-68
Φ45-58
1.8/2.5
1.0/1.5
58
20
96
50
JX-8-EXS-79
M87*1.5
3''
Φ67-79
Φ56-67
1.8/2.5
1.0/1.5
64
20
114
20
JX-8-EXS-89
M100*1.5
4''
Φ78-89
Φ65-75
1.8/2.5
1.0/1.5
70
20
138
10
For NPT Thread
JX-8-EXS-12
M16*1.5
3/8''
Φ6-12
Φ4-10
0.9/1.25
0/0.7
30
15
24
50
JX-8-EXS-16
M20*1.5
1/2''
Φ10-16
Φ8-13
0.9/1.25
0/0.7
30
15
24
50
JX-8-EXS-18
M22*1.5
3/4''
Φ14-18
Φ12-16
0.9/1.25
0/0.7
35
15
40
50
JX-8-EXS-23
M24*1.5
1''
Φ17-23
Φ15-21
1.6/2.0
0.6/1.2
39
15
46
50
JX-8-EXS-27
M25*1.5
11/4''
Φ22-27
Φ20-25
1.6/2.0
0.6/1.2
43
15
55
50
JX-8-EXS-33
M30*1.5
11/2''
Φ26-33
Φ24-31
1.6/2.0
0.6/1.2
43
15
55
50
