Explosion-Proof Brass Double Sealed Cable Gland

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE, Ex; IP68
  • Surface Treatment：Electroplating
  • Color：Metalic
  • IP Rating：IP66
  • Material：Brass
  • Transport Package：Polybag+Label Export Carton Box

Base Info

  • Model NO.：Metric Thread,PG Thread, NPT G Thread
  • Trademark：Jixiang
  • Origin：Zhejiang; China
  • HS Code：8547909000
  • Production Capacity：50000PCS,Week

Description

Double Sealed Explosion-proof Cable Gland JX2 - Metric Thread

Code

AG Thread

Inner sheath/ core line

Cable Outer diameter

Armored cable/belt

Max. Length (H)

Thread Length (mm)

Six Angle Size

Metric

NPT,G

Core line Max

Inner sheath

Max core line

Min

Max

Direction 1

Direction 2

On the edge

JX-2 -EX-12

M20*1.5

1/2''

9

10.0

6

5.5

12.0

0.9/1.25

0/0.7

65.5

15

24.0

JX-2 -EX-16

M20*1.5

1/2''

9

10.0

6

9.5

16.0

0.9/1.25

0/0.7

65.5

15

24.0

JX-2 -EX-20.5

M20*1.5

1/2''-3/4''

11.2

12.5

10

12.5

20.5

0.9/1.25

0/0.7

67.5

15

30.0

JX-2 -EX-26

M25*1.5

3/4''-1''

16.3

18.4

21

16.9

26.0

1.25/1.6

0/0.7

71.4

15

36.0

JX-2 -EX-33

M32*1.5

1''-11/4''

22

24.7

42

22.0

33.0

1.6/2.0

0/0.7

76.0

15

46.0

JX-2 -EX-41

M40*1.5

11/4''-11/2''

26.5

29.7

60

28.0

41.0

1.8/2.5

0/0.7

78.2

15

55.0

JX-2 -EX-52.6

M50*1.5

11/2''-2''

37.2

41.7

80

36.0

52.6

1.8/2.5

0/1.0

91.0

15

65.0

JX-2 -EX-65.3

M63*1.5

2''-21/2''

47.6

53.5

100

46.0

65.3

1.8/2.5

0/1.0

98

15

80.0

JX-2 -EX-78

M75*2.0

21/2''-3''

60

65.3/66.2

120

57.0

78.0

1.8/2.5

0/1.0

102.0

15

95.0

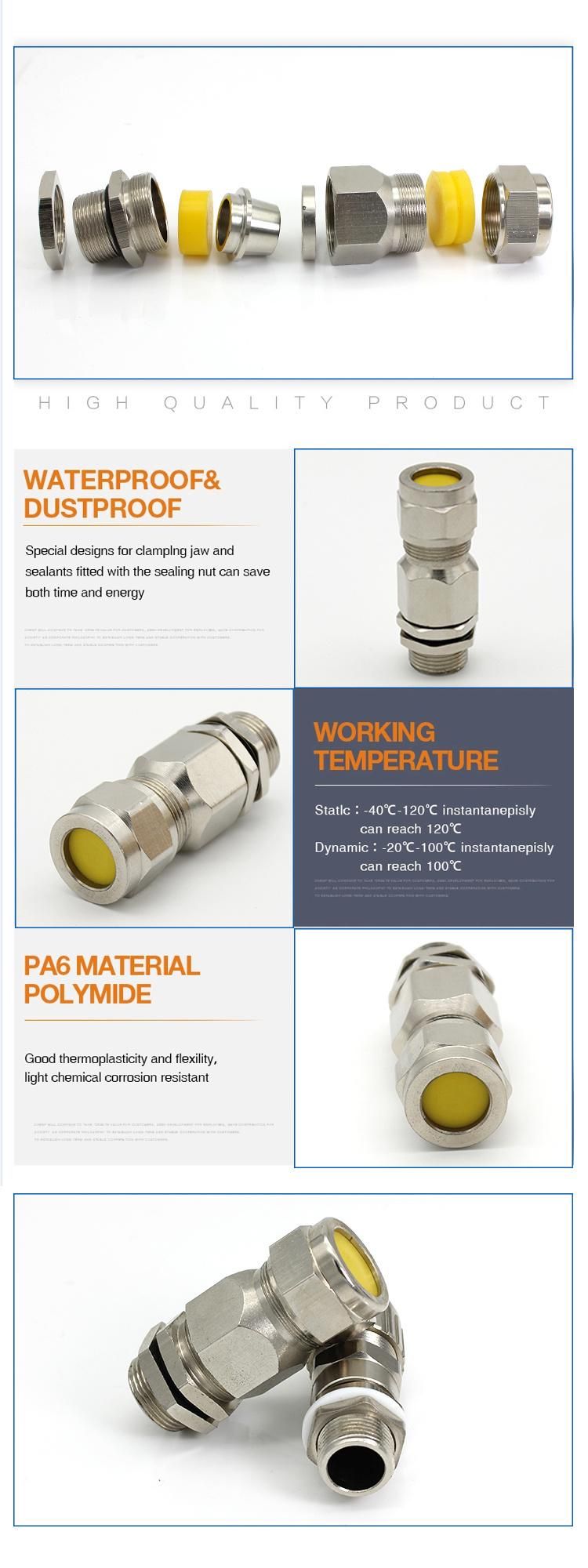

Explosion-Proof Brass Double Sealed Cable Gland
