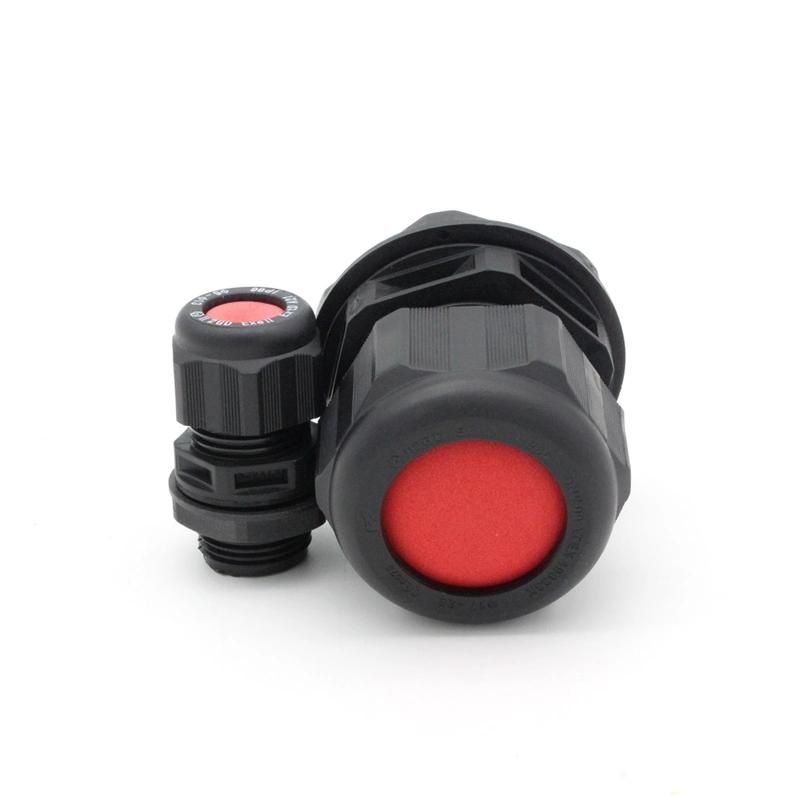

PA66 Ex Explosion Proof Cable Gland M Type
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Surface Treatment：Baking Paint
- Color：Black
- IP Rating：IP68
- Material：Nylon
- Type：Straight Head
Base Info
- Model NO.：M25*1.5
- Fuction：Protect Wires Safely
- Benefit：Free Samples
- Temperature：-40 to 100 Degree
- Claw：PA
- Sealing Ring：PA
- Sealing Rubber：Plastic
- Customization：Different Colors
- Transport Package：100 PCS Per Bag
- Specification：m type
- Trademark：JIXIANG
- Origin：Zhengjiang Province, Cn
- HS Code：33039649
- Production Capacity：30000 PCS , Week
Description
Basic Info.
Model NO. M25*1.5 Fuction Protect Wires Safely Benefit Free Samples Temperature -40 to 100 Degree Claw PA Sealing Ring PA Sealing Rubber Plastic Customization Different Colors Transport Package 100 PCS Per Bag Specification m type Trademark JIXIANG Origin Zhengjiang Province, Cn HS Code 33039649 Production Capacity 30000 PCS / WeekProduct Description
PRODUCT DESCRIPTION| Product Name | Atex Nylon Cable Gland |
| Material | Nylon |
| Color | Black |
| Size | M16-M63 |
| Grade | IP66 |
| Application Scope | Zone1 & Zone2 & zone20 & Zone 21 & Zone 22 |
| Code | Entry thread | Diameter of Cable(mm) | SW | Thread Length(mm) |
| A01 | N16x1.5 | ф4-9 | 20 | 10 |
| A02 | M20x1.5 | ф5.5-13 | 24 | 11 |
| A03 | M25x1.5 | ф8-17 | 29 | 11 |
| A04 | M32x1.5 | ф12-21 | 36 | 12 |
| A05 | M40x1.5 | ф17-28 | 46 | 14 |
| A06 | M50x1.5 | ф22-35 | 55 | 16 |
| A07 | M63x1.5 | ф27-48 | 68 | 16 |
| A08 | M25x1.5 | 4xф3-ф6 | 29 | 11 |
| A09 | M32x1.5 | 4xф5-ф7 | 36 | 12 |
| A10 | M20x1.5 | ф5.5-13 | 24 | 16 |
| A11 | M25x1.5 | ф8-17 | 29 | 16 |
| A12 | M32x1.5 | ф12-21 | 36 | 16 |
| A13 | M25x1.5 | 4xф3-ф6 | 29 | 16 |
| A14 | M32x1.5 | 4xф5-ф7 | 36 | 16 |
