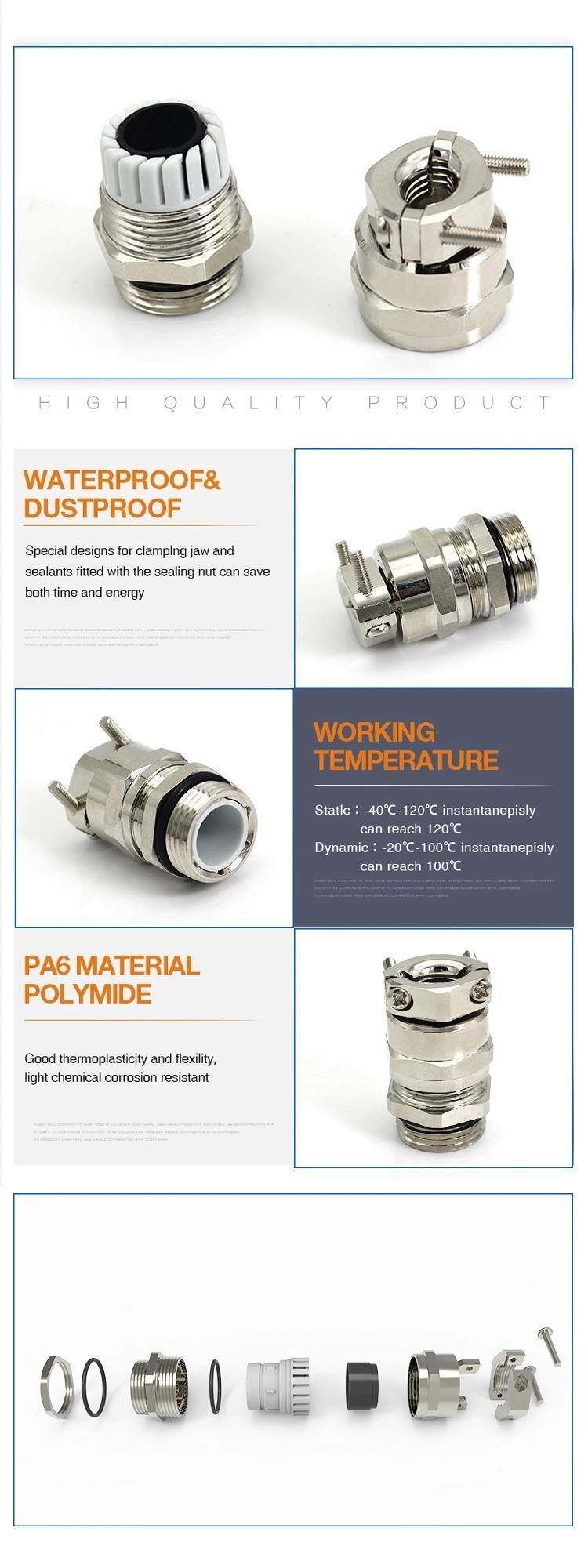

Metal Double-Locked Cable Gland with IP68 Metric & Pg Type
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE
- Surface Treatment：Brass with Nickle Plated
- Color：Metallic
- IP Rating：IP66
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：PG7, M12
- Claw：PA
- Transport Package：Standard Export Package
- Specification：36*26*19
- Trademark：Jixiang
- Origin：Zhejiang
- HS Code：33039649
- Production Capacity：1000 PCS , Week
Description
Double Sealed Explosion-proof Cable Gland - Metric Thread
Code
AG Thread
Cable Range (mm)
Armor
Braid
H (mm)
GL (mm)
Spanner Size (mm)
Std. Pkg (pcs)
Metric
G
Outer
Inner
Size
Size
JX-2-EXS-12
M16*1.5
3/8''
Φ6-12
Φ4-10
0.9/1.25
0/0.7
24
15
24
50
JX-2-EXS-12
M20*1.5
1/2''
Φ10-16
Φ8-13
0.9/1.25
0/0.7
24
15
24
50
JX-2-EXS-12
M22*1.5
1/2''
Φ10-16
Φ8-13
0.9/1.25
0/0.7
24
15
24
50
JX-2-EXS-12
M24*1.5
1/2''
Φ14-16
Φ12-16
0.9/1.25
0/0.7
30
15
30
50
JX-2-EXS-12
M25*1.5
3/4'' 1''
Φ14-18
Φ12-16
1.25/1.6
0/0.7
40
15
40
50
JX-2-EXS-12
M30*1.5
1''11/4''
Φ17-23
Φ15-21
1.6/2.0
0.6/1.2
46
15
46
50
JX-2-EXS-12
M32*1.5
1''11/4''
Φ22-27
Φ20-25
1.6/2.0
0.6/1.2
46
15
46
50
JX-2-EXS-12
M36*2.0
1''11/4''
Φ22-27
Φ20-25
1.6/2.0
0.6/1.2
55
15
55
50
JX-2-EXS-12
M40*1.5
11/2''
Φ26-33
Φ24-31
1.6/2.0
0.6/1.2
55
15
55
50
JX-2-EXS-12
M48*2.0
11/2''
Φ26-33
Φ24-31
1.6/2.0
0.6/1.2
55
15
55
50
JX-2-EXS-12
M50*1.5
11/2'' 2''
Φ32-41
Φ27-35
1.6/2.0
0.6/1.2
65
15
65
50
JX-2-EXS-12
M56*2.0
2''
Φ40-49
Φ35-43
1.6/2.0
0.6/1.2
65
20
65
50
JX-2-EXS-12
M63*1.5
21/2''
Φ48-57
Φ42-50
1.8/2.5
0.6/1.2
80
20
80
50
JX-2-EXS-12
M64*2.0
21/2''
Φ48-57
Φ42-50
1.8/2.5
0.6/1.2
80
20
80
50
JX-2-EXS-12
M75*1.5
3''
Φ54-68
Φ45-58
1.8/2.5
1.0/1.5
96
20
96
50
JX-2-EXS-12
M87*1.5
3''
Φ67-79
Φ56-67
1.8/2.5
1.0/1.5
114
20
114
20
JX-2-EXS-12
M100*1.5
4''
Φ78-89
Φ65-75
1.8/2.5
1.0/1.5
138
20
138
10
