Cable Parts

Home > Product > Cable Gland

Plastic Waterproof Cable Gland-Pg Type

Yueqing Jixiang Connector Co., Ltd.
  • Certification：RoHS, ISO, CE
  • Surface Treatment：Nylon
  • Color：Black and White
  • IP Rating：IP68
  • Material：Nylon
  • Type：Straight Head

Base Info

  • Model NO.：PG7-PG63
  • Claw：PA
  • Transport Package：Standard Export Package
  • Specification：36*26*19
  • Trademark：Jixiang
  • Origin：Zhejiang
  • HS Code：8547901000
  • Production Capacity：1000000piece,Year

Description

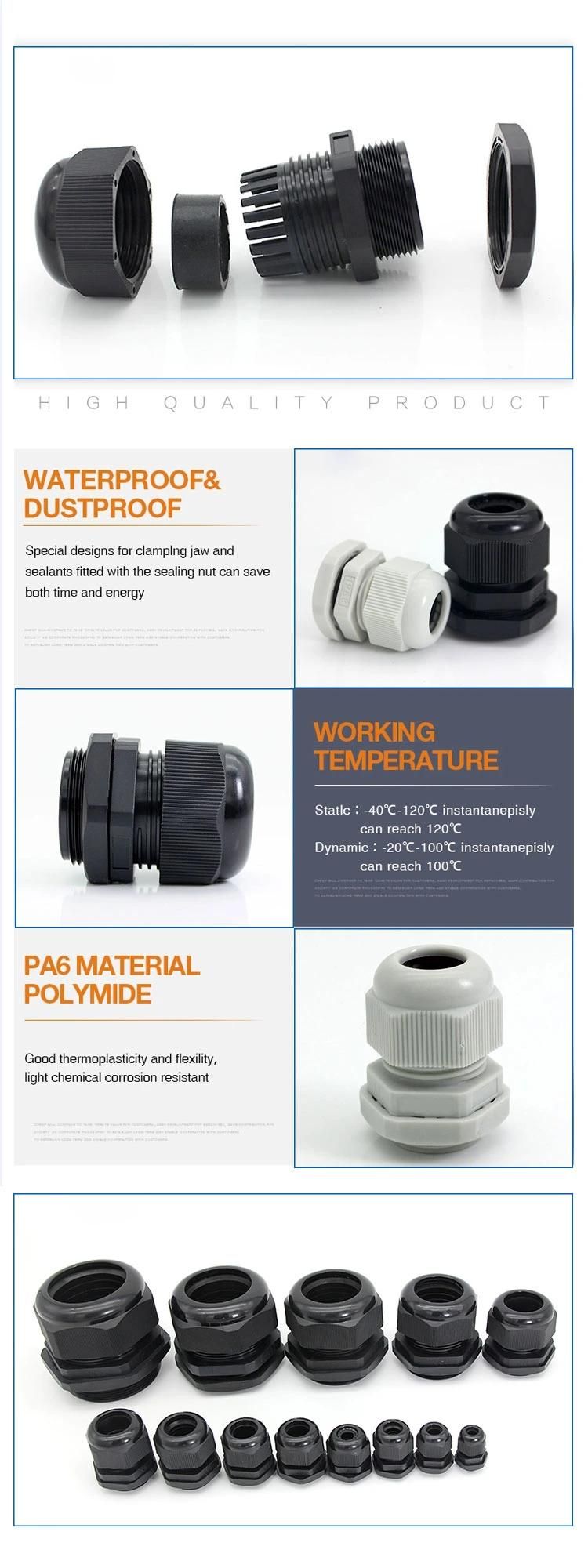

Nylon Cable Gland--PG thread

Product Code

Thread  AG

Cable range(mm)

Thread O.D AG (mm)

Thread length GL(mm)

Spanner Size (mm)

JX-NLPG7A

PG7

3-6.5

12.5

9

18/16

JX-NLPG7B

PG7

2-5

12.5

9

18/16

JX-NLPG9A

PG9

4-8

15.2

9

22/19

JX-NLPG9B

PG9

2-6

15.2

9

22/19

JX-NLPG11A

PG11

5-10

18.6

9

24/22

JX-NLPG11B

PG11

3-7

18.6

9

24/22

JX-NLPG13.5A

PG13.5

6-12

20.4

9

27/24

JX-NLPG13.5B

PG13.5

5-9

20.4

9

27/24

JX-NLPG16A

PG16

10-14

22.5

10

30/27

JX-NLPG16B

PG16

7-12

22.5

10

30/27

JX-NLPG19APG1912-16241030/28JX-NLPG19BPG1910-13241030/28

JX-NLPG21A

PG21

13-18

28.3

12

36/33

JX-NLPG21BPG219-1628.31236/33JX-NLPG25APG2516-21301237/35JX-NLPG25BPG2513-18301237/35JX-NLPG29APG2918-25371245/42JX-NLPG29BPG2913-20371245/42JX-NLPG36APG3622-32471758/52JX-NLPG36BPG3620-26471758/52JX-NLPG42APG4232-38541965/60JX-NLPG42BPG4225-31541965/60JX-NLPG48APG4837-4459.31970/69JX-NLPG48BPG4825-3659.31970/69JX-NLPG63APG6342-50712783/75JX-NLPG63BPG6332-40712783/75
