• Model NO.：PAL-2000
• Origin：China
• HS Code：85044020
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. PAL-2000 Origin China HS Code 85044020 Production Capacity 10000PCS/Month

Product Description

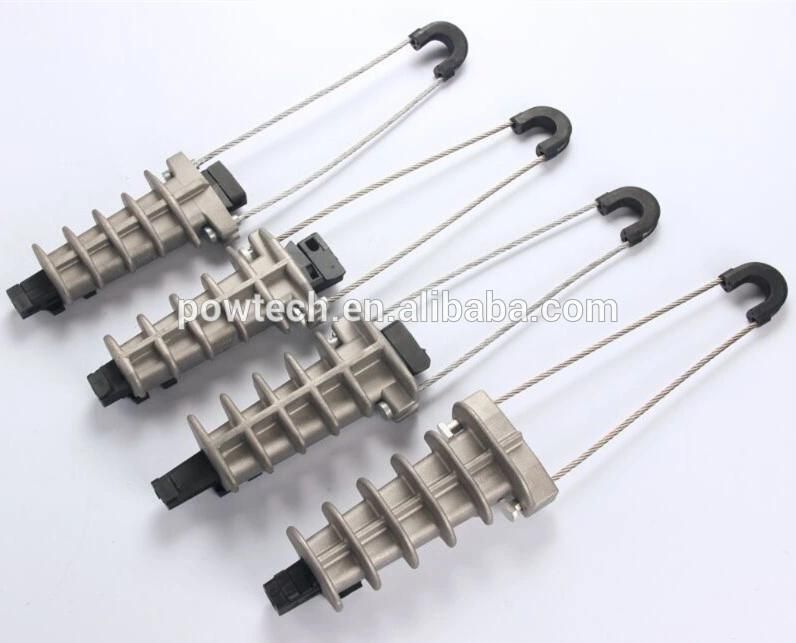

PAL2000 ADSS cable Aluminium alloy anchor clamp

Product property: They are characterized by high mechanical stability , reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in  insulating  material ensures the d ouble insul ation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, the is concepti on allows an easier locking on the body of the clamp.

Technical data of Dead End Clamp

Model	Suitable conductor  dia.	Suitable conductor  area (mm2)	Breaking load	Qty/ carton	Carton sizes  cm * cm*cm	Gross weight  (kg)
PAL1000  (AL)	8~11mm	25~35	10KN	50	41*28*31.5	21kg
PAL1500  (AL)	9~14mm	35~70	15KN	50	41*28*31.5	23kg
PAL2000 (AL)	14~16mm	70~95	15KN	50	41*28*31.5	24kg

Structure feature

1  the wire-clamps casing adopts nylon  with properties of high-strength, anti-oxidization to be die-casting for forming.

2  Adopts advanced design idea and production technology that making casing ,lead, U-shape screw, pressure-article compact and have good contact in addition to big gripping-power after being assembled.

3  The installation and use is simple, wire-clamps strength is high, without any magnetic hysteresis loss, the energy-conservation effect is well.

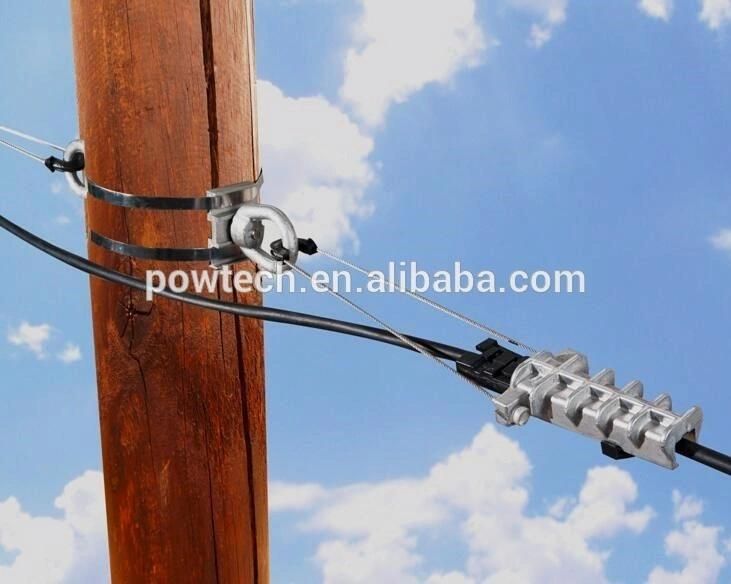

Installation
