• Model NO.：ANZ
• Specification：CE, RoHS, SGS, ISO
• Trademark：POWTECH
• Origin：China
• HS Code：85044020
• Production Capacity：10000PCS,Month

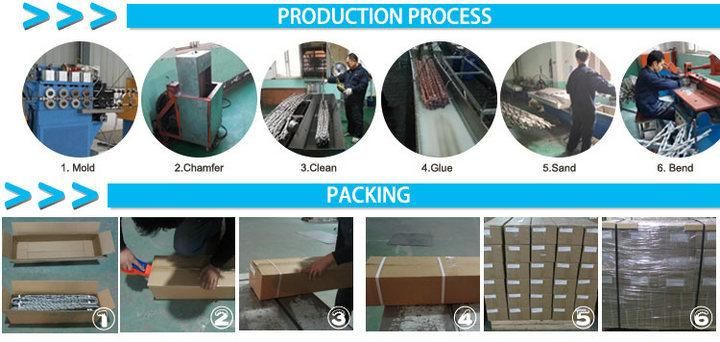

Overview Detailed Photos



Product Description



Product Description:

The preformed guy grip dead-end clamp have simple and stable structure, easy to install and low price, especially designed for short span ADSS cable.

Configuration & material:

1. Clevis thimble: steel

2. Dead-end cable grip: Aluminum clad steel

3. Inner rod: Aluminum clad steel

4. Anchor shackle: U-7


Feature:

(1) Stress can be distributed equally among the ADSS cable surface without stress centralization to protect ADSS cable.

(2) It can have higher grip strength for the cable and can support higher tensile force when stress doesn't exceed the optical cable's side strength.

(3) The grip strength for the cable is not less than 95% of rated tension strength (RTS) of the optical cable, fully suitable for the installation of ADSS cable

Application:

(1) Terminal pole tower, tension pole/tower,

(2) Pole/tower with corner angles greater than 15°and RTS no more than 10kN

(3) Suitable for city ADSS cable installation.

Technical data

Rated Tension Strength (RTS): 20kN
Recommended span length: 200m

ModelCable Diameter(mm)

Inner Armor

Rod (mm)

Outer Armor

Rod(mm)

Clevis

Thimble

Anchor

Shackle

ANZ-200-10.09.0-10.01200900TC-04U-7ANZ-200-11.110.1-11.11200900TC-04 U-7ANZ-200-12.211.2-12.21200900TC-04U-7ANZ-200-13.312.3-13.31200900TC-04U-7ANZ-200-14.4013.4-14.41200900TC-04U-7ANZ-200-15.5014.5-15.51200900TC-04U-7ANZ-200-16.6015.6-16.61200900TC-04U-7ANZ-200-17.7016.7-17.71200900TC-04U-7ANZ-200-18.8017.8-18.81200900TC-04U-7

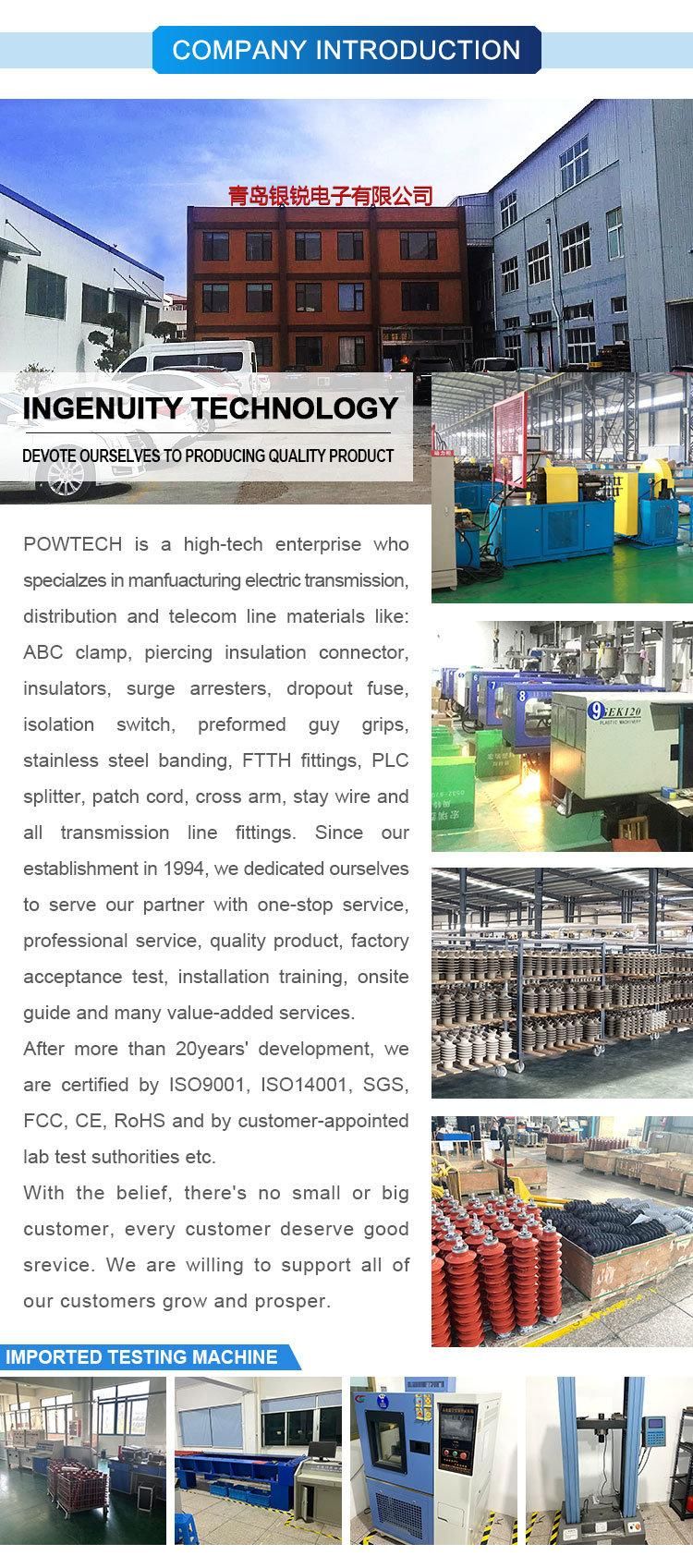

Company Profile

Customer visit

Our partners

Certifications

FAQ
