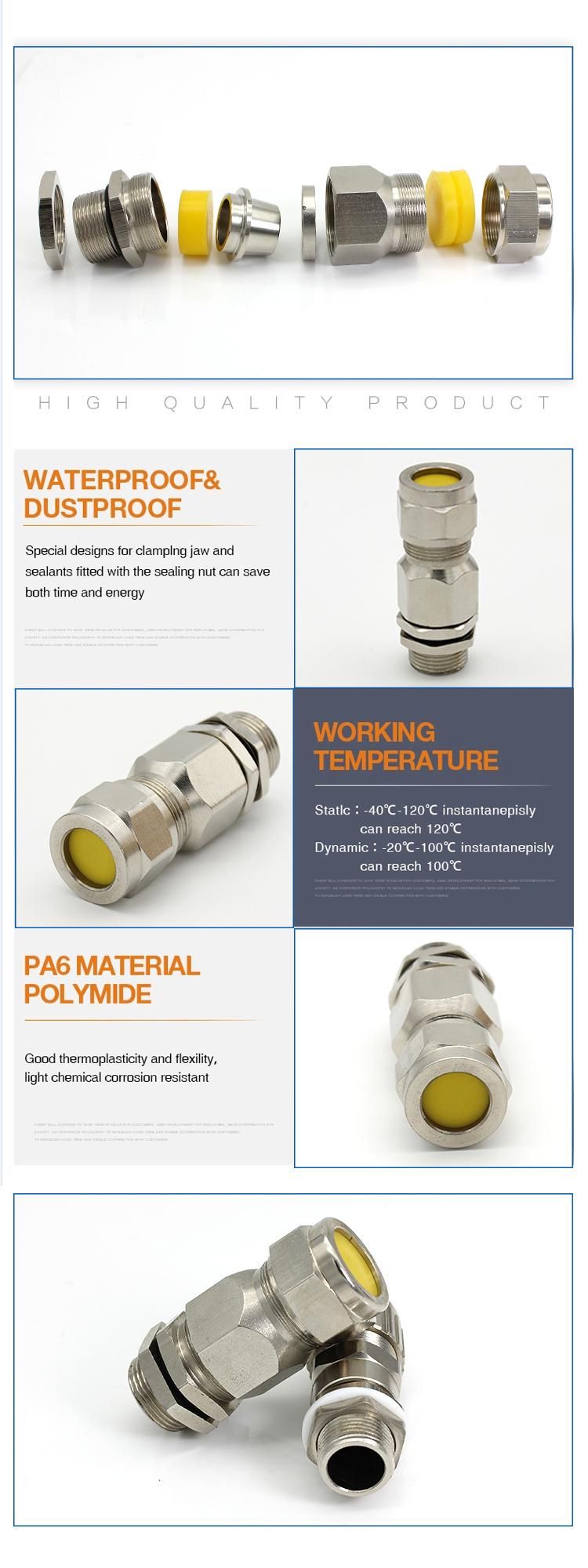

Single Sealed Explosion-Proof Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP66
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP66
- Material：Brass
- Transport Package：Polybag+Label Export Carton Box
Base Info
- Model NO.：Metric Thread,PG Thread, NPT G Thread
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547901000
- Production Capacity：50000PCS,Week
Description
Code
specification(D)
Suitable for sealing cable diameter
Thread
length
Length
(φ)max diameter
Armored layer thickness Range(mm)
Weight(kg)
In addition to armored cable diameter(outlet)
Outside diameter of cable(wire)
Cable outside diameter plional(inline)
JX-7-EX-12
M20×1.5
NPT1/2"
G1/2"
<10.5
5.5-12
-
15
66
30
0.3-1.0
0.16
JX-7-EX-16
M20×1.5
NPT1/2"
G1/2"
<10.5
9.5-16
-
15
66
30
0.3-1.0
0.16
JX-7-EX-20.5A
M20×1.5
NPT1/2"
G1/2"
<14.5
12.5-20.5
6-12
15
68
30
0.3-1.0
0.15
JX-7-EX-20.5B
M25×1.5
NPT3/4"
G3/4"
<14.5
12.5-20.5
9-15
15
68
37
0.3-1.0
0.2
JX-7-EX-26A
M25×1.5
NPT3/4"
G3/4"
<19.5
17-26
9-15
15
73
37
0.4-1.2
0.2
JX-7-EX-26B
M32×1.5
NPT1"
G1"
<19.5
17-26
14-22
19
77
45
0.4-1.2
0.23
JX-7-EX-33A
M32×1.5
NPT1"
G1"
<25.5
22-33
14-22
19
81
45
0.4-1.4
0.21
JX-7-EX-33B
M40×1.5
NPT1 1/4"
G1 1/4"
<25.5
22-33
19-28
19
81
55
0.6-1.9
0.3
JX-7-EX-41A
M40×1.5
NPT1 1/4"
G1 1/4"
<31
28-41
24-33
19
88
55
0.6-2.2
0.26
JX-7-EX-41B
M50×1.5
NPT1 1/2"
G1 1/2"
<31
28-41
29-41
19
88
65
0.8-2.3
0.36
JX-7-EX-52.5A
M50×1.5
NPT1 1/2"
G1 1/2"
<37
36-52.5
29-41
19
96
65
0.8-2.3
0.35
JX-7-EX-52.5B
M63×1.5
NPT2"
G2"
<37
36-52.5
38-52
19
96
77
0.9-2.4
0.47
JX-7-EX-65A
M63×1.5
NPT2"
G2"
<49
46-65
38-52
19
114
82
0.9-2.4
0.45
JX-7-EX-65B
M75×1.5
NPT2 1/2"
G2 1/2"
<55
46-65
38-58
19
114
93
0.9-2.4
3.0
JX-7-EX-78
M75×1.5
NPT2 1/2"
G2 1/2"
<64
57-78
47.5-74
19
119
110
0.9-2.4
2.9
JX-7-EX-88
M90×1.5
NPT3"
G3"
<75
68-88
19
119
121
0.9-2.8
4.0
JX-7-EX-103
M115×1.5
NPT4"
G4"
<90
83-103
19
125
137
0.9-2.8
4.9
