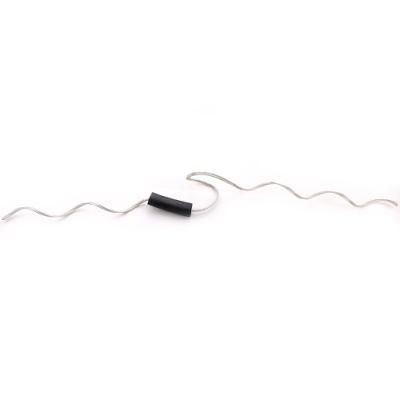

Metal Double Line Tie Insulator Tie with Low Price
Qingdao Powtech Electronics Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Color：Silver
- Fire Rating：High
- Size：Customized
- Material：Aluminum-Clad Steel
- Type：Cable Tie
Base Info
- Model NO.：DCB
- Name：Metal Double Line Tie
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：POWTECH
- Origin：China
- HS Code：72202030
- Production Capacity：10000PCS,Month
Description
Approximate length (mm)C Neck (Φ57mm) F Neck (Φ73mm) J neck(Φ89mm) Min Max C Neck F Neck J neck DDB-57-5460 DDB-73-5460 DDB-89-5460 4.83 5.46 Blue 330 330 355 DDB-57-6200 DDB-73-6200 DDB-89-6200 5.49 6.20 Brown 330 330 355 DDB-57-7040 DDB-73-7040 DDB-89-7040 6.22 7.04 Orange 330 330 355 DDB-57-8000 DDB-73-8000 DDB-89-8000 7.06 8.00 Purple 330 330 355 DDB-57-9070 DDB-73-9070 DDB-89-9070 8.03 9.07 Red 355 355 380 DDB-57-1029 DDB-73-1029 DDB-89-1029 9.09 10.29 Yellow 355 355 380 DDB-57-1166 DDB-73-1166 DDB-89-1166 10.31 11.66 Blue 380 380 405 DDB-57-1321 DDB-73-1321 DDB-89-1321 11.68 13.21 Orange 405 405 405 DDB-57-1494 DDB-73-1494 DDB-89-1494 13.23 14.94 Red 430 430 455 DDB-57-1689 DDB-73-1689 DDB-89-1689 14.96 16.89 Purple 430 430 455 DDB-57-1918 DDB-73-1918 DDB-89-1918 16.92 19.18 Brown 455 455 485 DDB-57-2172 DDB-73-2172 DDB-89-2172 19.20 21.72 Red 510 510 535 DDB-57-2459 DDB-73-2459 DDB-89-2459 21.74 24.59 Blue 535 535 560 DDB-57-2784 DDB-73-2784 DDB-89-2784 24.61 27.84 Green 560 560 585 DDB-57-3150 DDB-73-3150 DDB-89-3150 27.86 31.50 Yellow 585 585 610
