- Model NO.：JBJ04048
- HS Code：85044020
- Production Capacity：10000PCS,Month
| Purpose: | Aerial, wall-mounting, Pipeline laying way |
| External dimensions: | 435mm*160mm(Erect type) |
| Weight: | 2.1kg(Erect type) |
| Material: | ABS/PC |
| Maximum capacity: | 96cores |
| Span-life: | 20 years. |
| Components: | Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring |
| Environmental temperature: | -40ºC to +65ºC |
| Atmospheric pressure: | 70-106KPa |
| Optic property: | The spare fiber coiled in the fiber em-placing device; the fiber connector won't attenuate during the FOSC installation operation period. |
| Seal Performance: | After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure. |
| Re-encapsulation Performance: | The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation |
| Voltage-resistance strength: | Under the effect of 15KV/DC/1min, non-puncture, and no arc-over. |
| Insulation resistance: | ≥2X104MΩ |

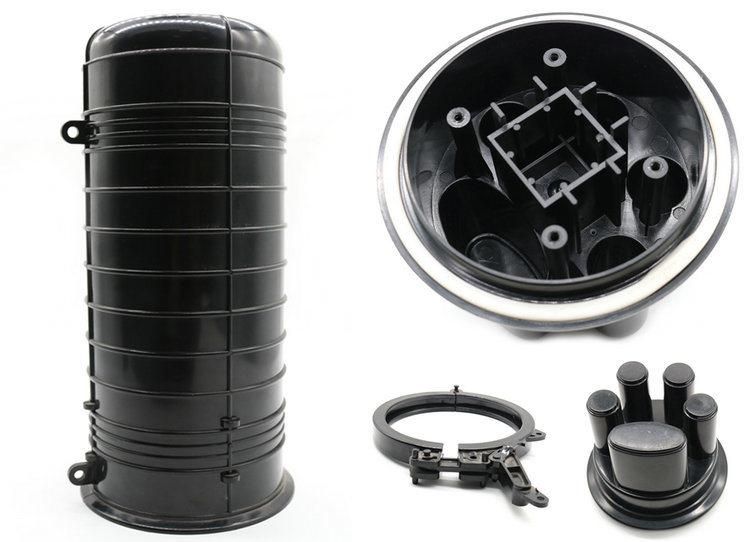

Detailed Images:
Uses and properties:
It is widely used for communication, network system, cabled TV,of CATV, the fiber optic cable by network
It is belonged to open structure air-proof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable

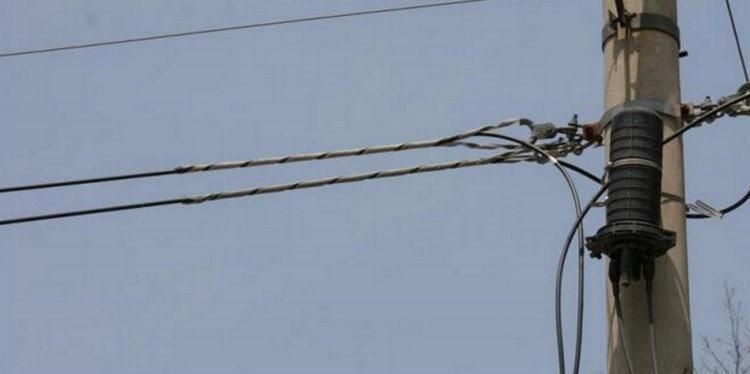

Abroad Installation:
