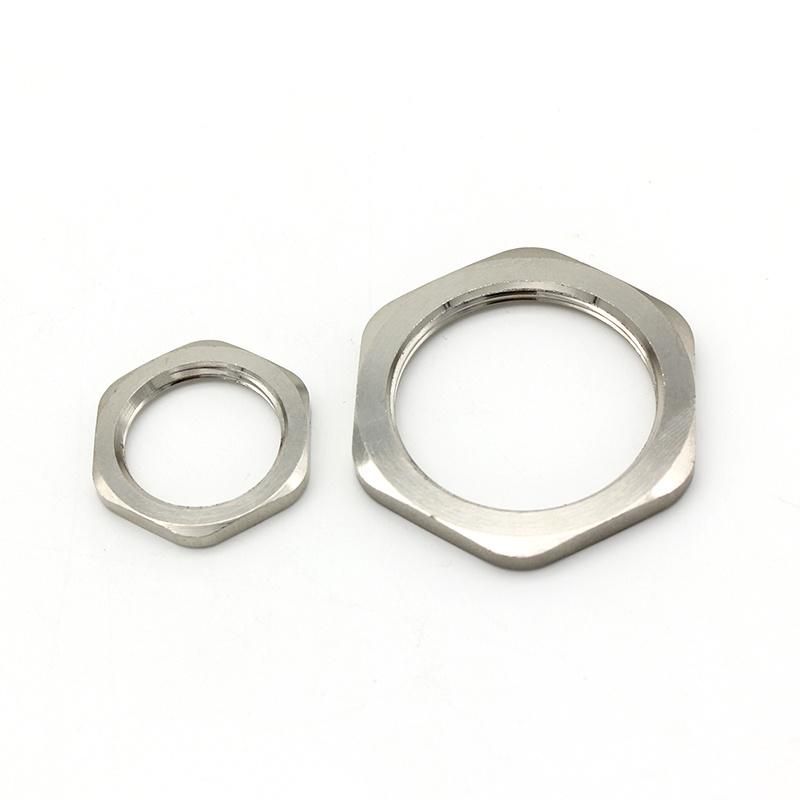

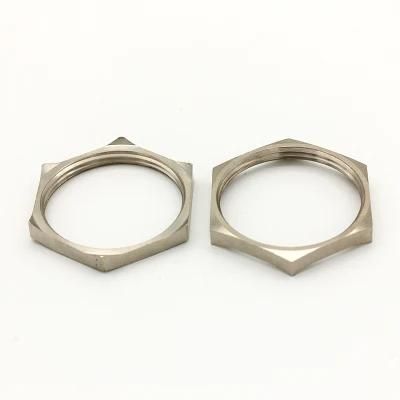

G/NPT Locknut for Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE
- Surface Treatment：Brass with Nickle Plated
- Color：Metallic
- IP Rating：IP68
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：G1,4-G3 , NPT1,4-NPT3
- Transport Package：Standard Export Package
- Specification：36*26*19
- Trademark：Jixiang
- Origin：Zhejiang
- HS Code：8547901000
- Production Capacity：1000000piece,Year
Description
Basic Info.
Model NO. G1/4-G3 / NPT1/4-NPT3 Transport Package Standard Export Package Specification 36*26*19 Trademark Jixiang Origin Zhejiang HS Code 8547901000 Production Capacity 1000000piece/YearProduct Description
| Item | Thread | Thickness (mm) | Spanner size (mm) |
| JX-G1/4-ML | G1/4 | 3 | 14 |
| JX-G3/8-ML | G3/8 | 3 | 18 |
| JX-G1/2-ML | G1/2 | 3 | 22 |
| JX-G3/4-ML | G3/4 | 4 | 30 |
| JX-G1-ML | G1 | 4 | 40 |
| JX-G1-1/4-ML | G1-1/4 | 5.5 | 50 |
| JX-G1-1/2-ML | G1-1/2 | 5.5 | 57 |
| JX-G2-ML | G2 | 6 | 64 |
| JX-G2-1/2-ML | G2-1/2 | 8.5 | 77 |
| JX-G3-ML | G3 | 9 | 94 |
| JX-NPT1/4-ML | NPT1/4 | 3 | 14 |
| JX-NPT3/8-ML | NPT3/8 | 3 | 18 |
| JX-NPT1/2-ML | NPT1/2 | 3 | 22 |
| JX-NPT3/4-ML | NPT3/4 | 4 | 30 |
| JX-NPT1-ML | NPT1 | 4 | 40 |
| JX-NPT1-1/4-ML | NPT1-1/4 | 5.5 | 50 |
| JX-NPT1-1/2-ML | NPT1-1/2 | 5.5 | 57 |
| JX-NPT2-ML | NPT2 | 6 | 64 |
| JX-NPT2-1/2-ML | NPT2-1/2 | 8.5 | 77 |
| JX-NPT3-ML | NPT3 | 9 | 94 |
